USB 3.2 Legacy TF Sets – Device Measurement

Product ID: AUT21003

Product Summary

AUT21003 is an USB 5Gbps legacy device measurement fixture and supprots tests with the USB 5Gbps legacy electrical compliance test specification.

Application

USB 5Gbps legacy electrical compliance tests

Key Feature

  1. Use for USB 5Gbps legacy UFP Tx test, Rx calibration and Rx long channel test
  2. SMA connectors easy to be replaced if groken
  3. Supply power from USB-C® to DUT (Device Under Test)

Specification

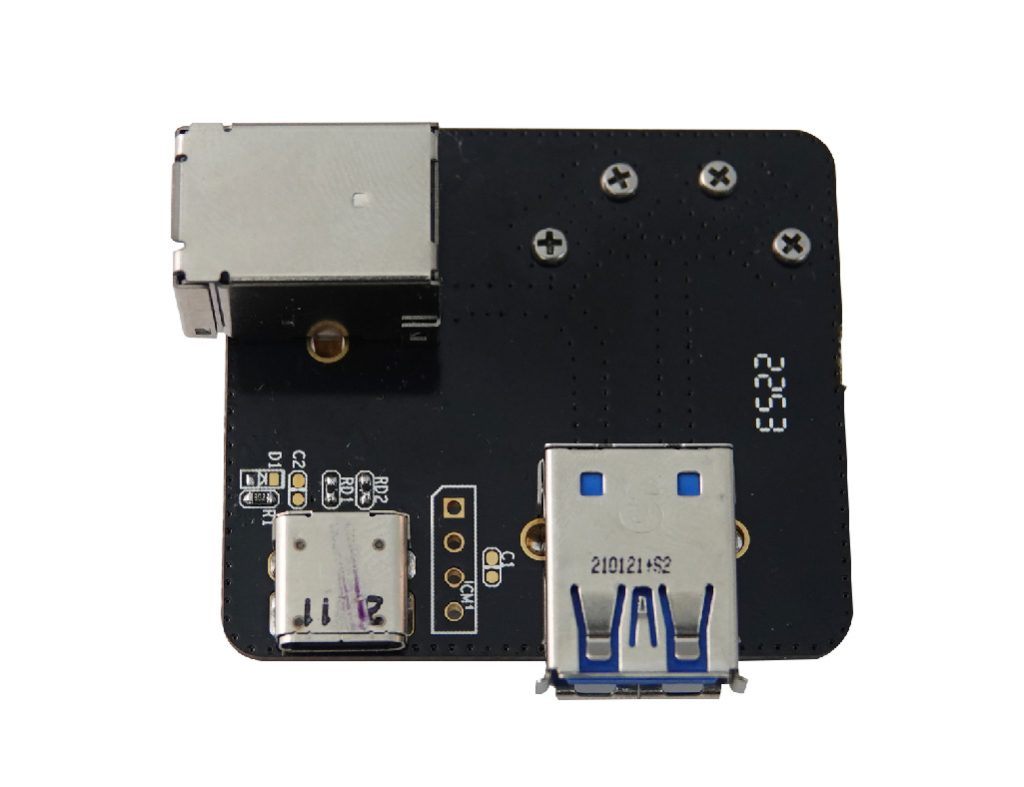

  1. One USB 5Gbps Standard A receptacle
  2. One USB 5Gbps Standard B receptacle

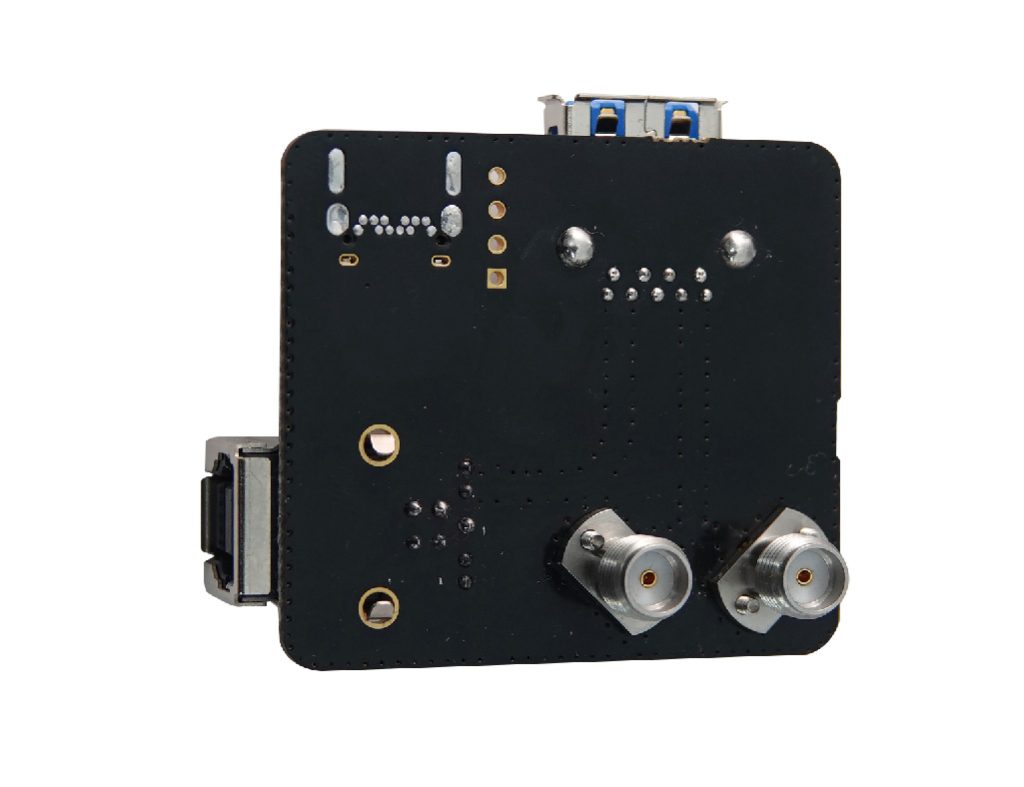

  3. Two SMA connectors for Standard A receptacle Tx
  4. One USB-C® receptacle for power charging
