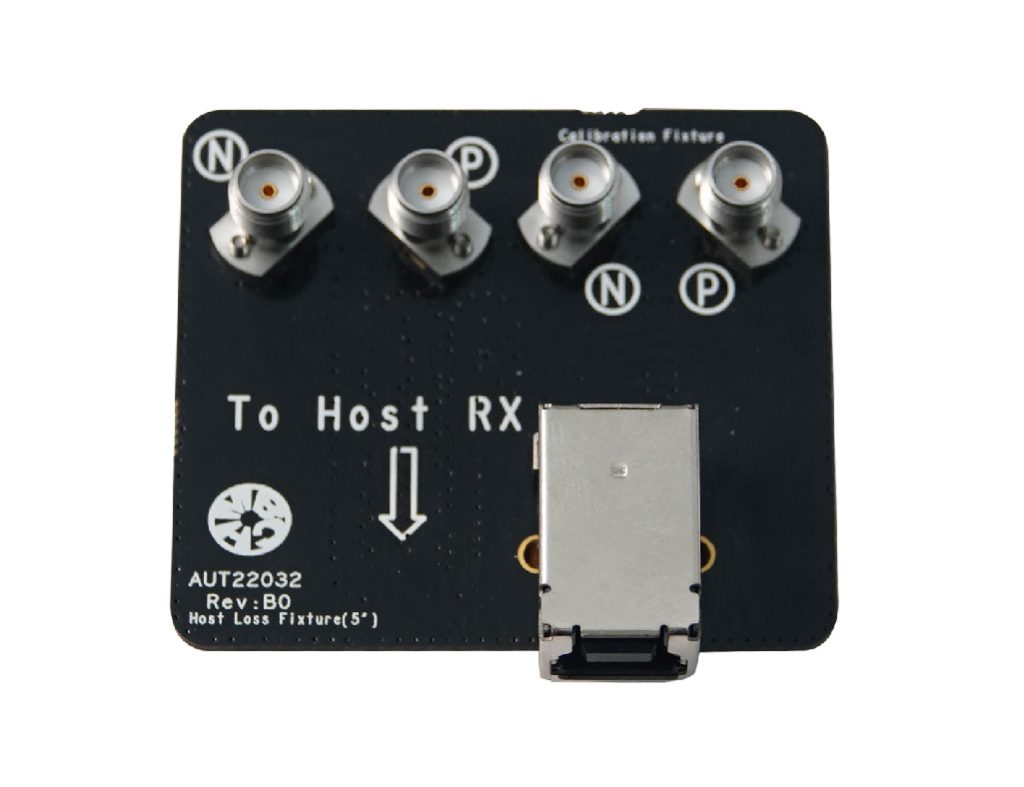

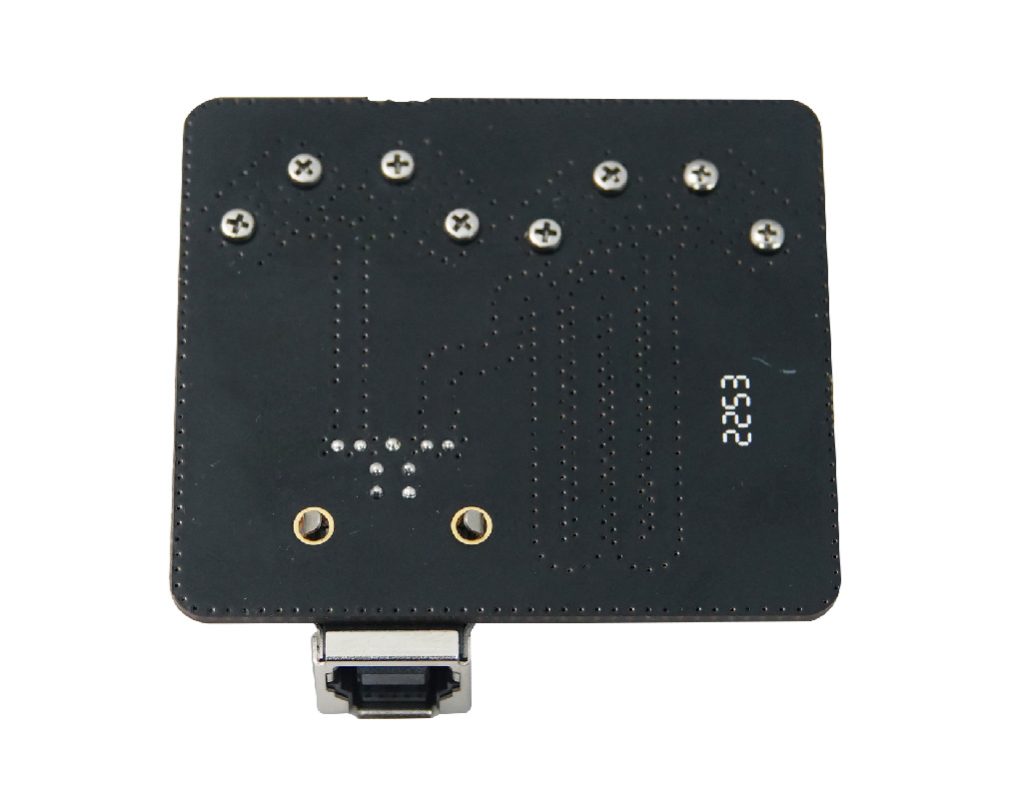

USB 3.2 Legacy TF Sets – Host Loss/ Device Calibration

Product ID: AUT22032

Product Summary

AUT22032 is the combination of an USB 5Gbps legacy host loss fixture and an USB 5Gbps legacy device calibration fixture, It supprots tests with the USB 5Gbps legacy electrical compliance test specification.

Application

USB 5Gbps legacy electrical compliance tests

Key Feature

  1. Host Loss setion: Use for USB 5Gbps legacy DFP Rx calibration and Rx long channel test
  2. Device Calibration section: Use for USB 5Gbps legacy UFP Rx calibration
  3. SMA connectors easy to be replaced if broken

Specification

  1. One USB 5Gbps Standard B receptacle
  2. Two SMA connectors for Host Loss sectoin
  3. Two SMA connectors for Device Calibration section
