USB 3.2 Legacy TF Sets – Device Loss

Product ID: AUT22033

Product Summary

AUT22033 is an USB 5Gbps legacy device loss fixture and supprots tests with the USB 5Gbps legacy electrical compliance test specification.

Application

USB 5Gbps legacy electrical compliance tests

Key Feature

  1. Use for USB 5Gbps legacy UFP Rx calibration and Rx long channel test
  2. SMA connectors easy to be replaced if broken

Specification

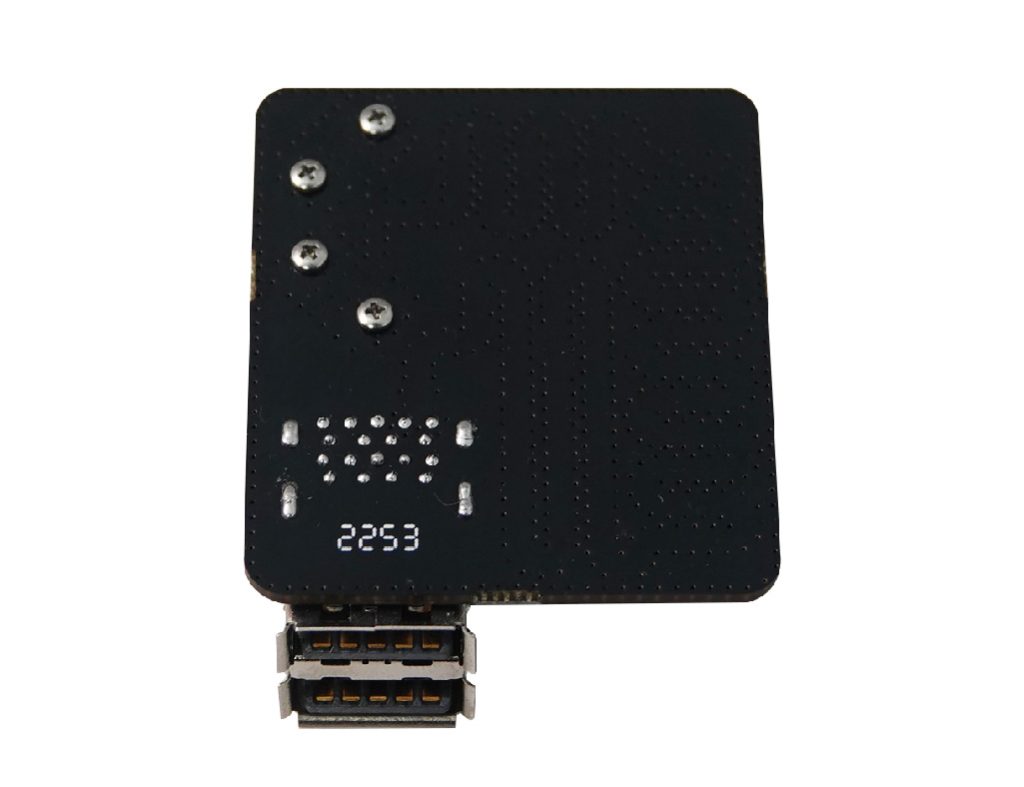

  1. Two USB 5Gbps stacked Standard A receptacles

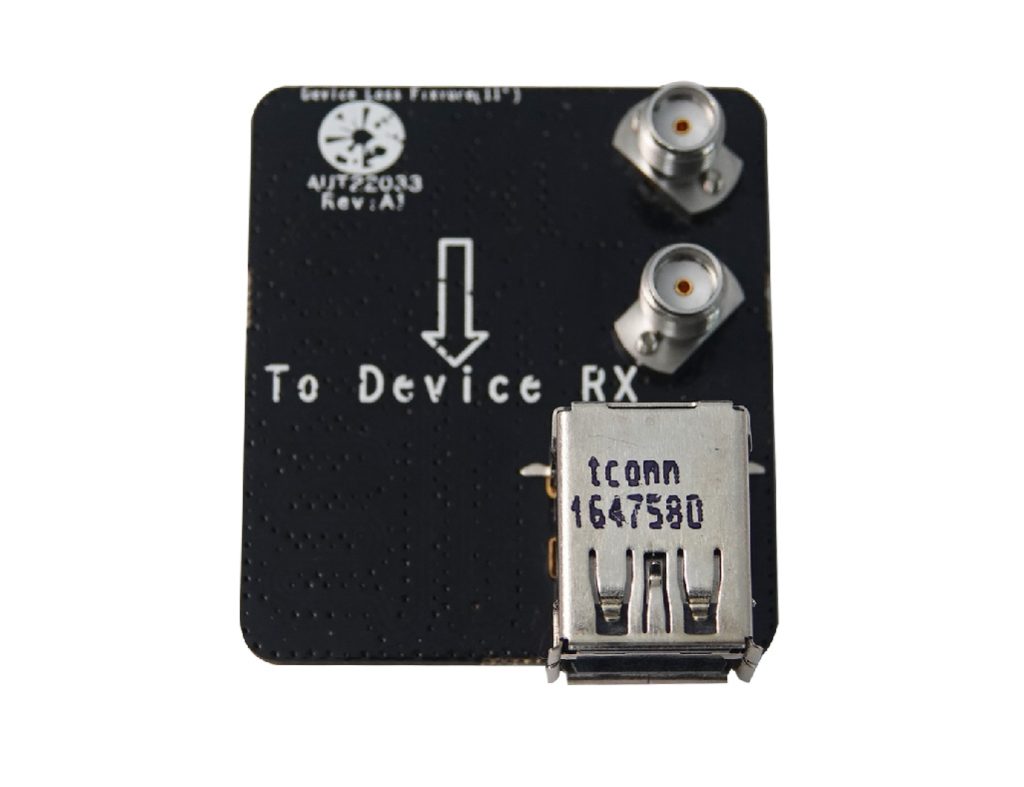

  2. Two SMA connectors for the upper Standard A receptacle Tx
