PCI Express Test Fixture

Product Summary

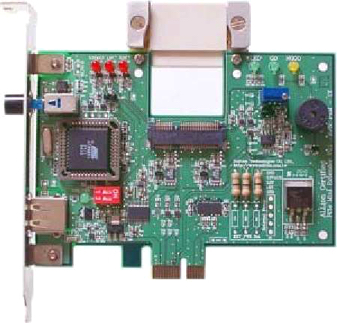

PCI Express Mini Extender can transfer signals between PCI Express and PCI Express Mini bus interface. Aims to measure signals of PCI Express mini modules, such as WLAN, SATA, and BT module and examine the compatibility. Users can hot-plug the PCI Express Mini card into the PCI Express motherboard for testing, which can save time by skipping the re-start procedure.

Application

It applies to products with PCI Express Mini card, specifically for manufacturers to conduct debugging at the design stage and conduct control assurance at the mass production stage.

Key Feature

  • Over Voltage Protection (OVP)/ Over Current Protection (OCP)
  • Remote control DUT power status
  • Hot swap protection
  • USB 2.0 Support
  • External Power Supply/Switch Connector
