SATA-IO Test Fixture

Product ID: SATA-IO

Product Summary

Approved by SATA-IO, the Credscent Heart Software TF-SATA test fixture serial, aims to assist customers in testing products to conform withto SATA-IO specifications. It can also be used with the equipment, such as Tektronix, Keysight, and Lecroy etc.

Application

  • This serial applies to products that support SATA-IO interoperability and electrical test specifications
  • Support 1.5 Gb/s, 3 Gb/s, and 6 Gb/s

Key Specification

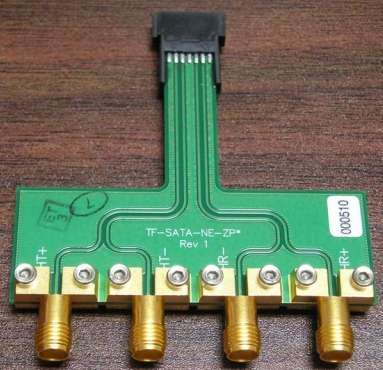

TF-SATA-NE-ZP

  • Facilitates near-end test fixture, female SATA connector utilized, plugs into the host or device Serial ATA connector
  • Differential 100 Ohm tight-tolerance controlled-impedance grounded coplanar waveguide (GCPW) PCB design

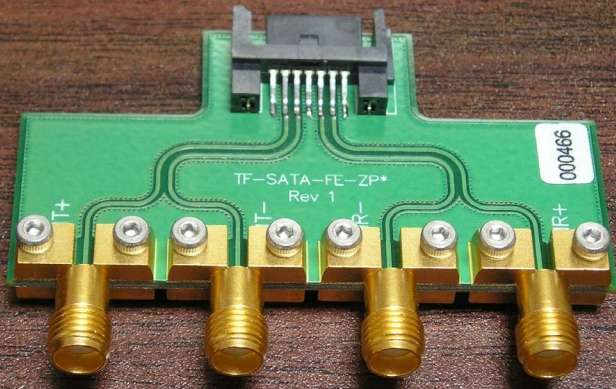

    •  TF-SATA-FE-ZP

  • Facilitates far-end connection, male SATA connector utilized, to the Serial ATA host or device under test
  • Differential 100 Ohm tight-tolerance controlled-impedance grounded coplanar waveguide (GCPW) PCB design

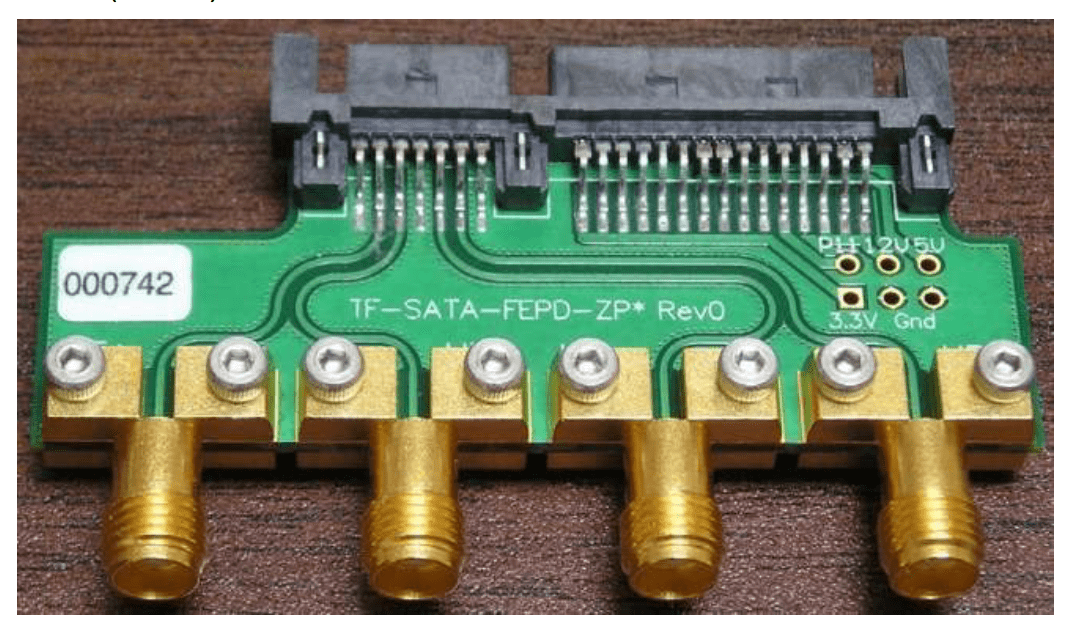

    •  TF-SATA-FEPD-ZP

  • Facilitates power-data connection to the Serial ATA laptop host under test
  • Differential 100 Ohm tight-tolerance controlled-impedance grounded coplanar waveguide (GCPW) PCB design

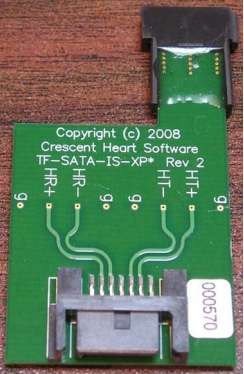

    • TF-SATA-IS-XP

  • Male and female SATA connectors utilized
  • In-system access provided to all four Serial ATA differential signals
  • Accommodates differential/non-differential probe connections to ground through 0.15 inch-spaced (3,8 mm-spaced) PCB vias
  • Unique three-layer differential 100 Ohm controlled-impedance PCB design

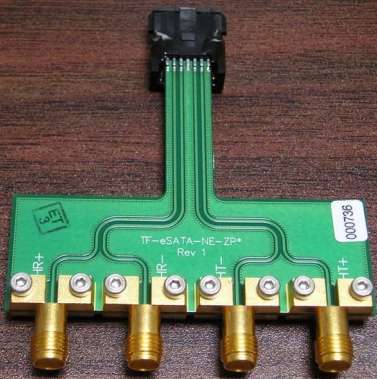

    •  TF-eSATA-NE-ZP

  • Facilitates near-end connection to the External Serial ATA host or device under test
  • Female External Serial ATA connector utilized, the same as is present at the end of an External Serial ATA cable
  • Differential 100 Ohm tight-tolerance controlled-impedance grounded coplanar waveguide (GCPW) PCB design

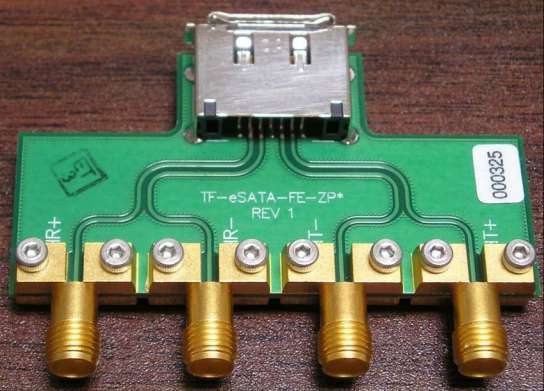

    •  TF-eSATA-FE-ZP

  • Facilitates far-end connection to the External Serial ATA host or device under test
  • Male External Serial ATA connector utilized, the same as is present in an External Serial host or device
  • Differential 100 Ohm tight-tolerance controlled-impedance grounded coplanar waveguide (GCPW) PCB design

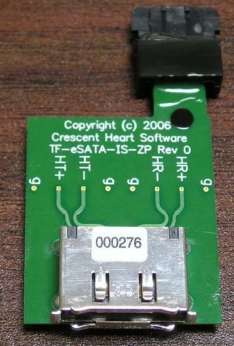

    •   TF-eSATA-IS-ZP

  • Male and female External Serial ATA connectors utilized
    In-system access provided to all four Serial ATA differential signals
  • Accommodates differential/non-differential probe connections through 0.15 inch-spaced (3,8 mm-spaced) PCB vias
  • Unique three-layer differential 100 Ohm tight-tolerance controlled-impedance PCB design

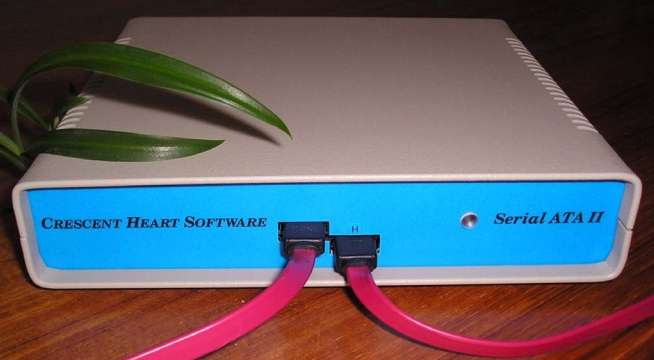

    •  SATA-II

  • Serial ATA II, Serial ATA 1.0 and ATA/ATAPI 6 compliance
  • Supports SATA compliance frame error rate (FER) measurements without use of a logic analyzer
  • Acquisition of spread-spectrum-clocked data streams supported
  • Optional acquisition of undecoded (10b) data or unscrambled Data FIS contents
  • Optional timing waveform display of bus signal level (squelch) behavior

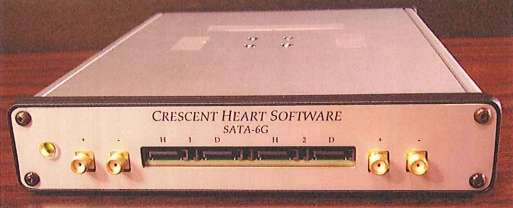

    •  SATA-6G

  • Serial ATA Revision 3.0 compliance
  • Receiver-sensitivity (RSG) frame error rate (FER) SATA compliance measurements *
  • Spread-spectrum clocking (SSC) frequency-modulation measurements **
  • Receiver-sensitivity (RSG) basic bit error rate (BER) compliance measurements ***: Optional functionality **: Expected optional functionality
