Mechanical Test Fixture- 4 Axis Continuity Testing of Right Angle Connector

Product Summary

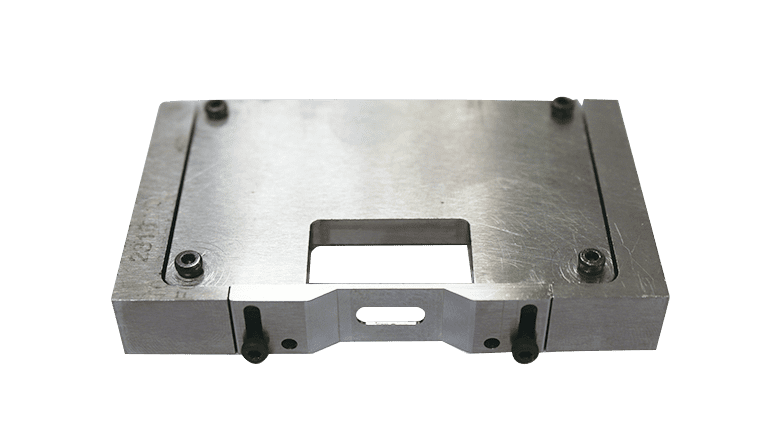

This USB Type-C mechanical test fixture(AUM-16007-S2)is specifically designed for 4 axis continuity test of the Type-C connector family. It aims to test right angle of the connector to conform with the specifications of the USB Type-C Certification Group B1-3.

Application



It applies to all USB Type-C family, including receptacle connectors, plug connectors and cables.

Key Feature

  • Designed for the 4 Axis Continuity Testing of the USB Type-C Connector family
  • Right Angle – Receptacle configuration with respect to the mounting surface
  • Following USB Type-C Connectors and Cable Assemblies Compliance Document Rev.1.0

Specification



  • 73 x 43.5 x 15.7 mm
  • Operating Temperature 0° ~ 55° C
  • Part No.: AUM-16007-S2
