Mechanical Test Fixture- 4 Axis Continuity Testing of Vertical Angle Connector

Product Summary

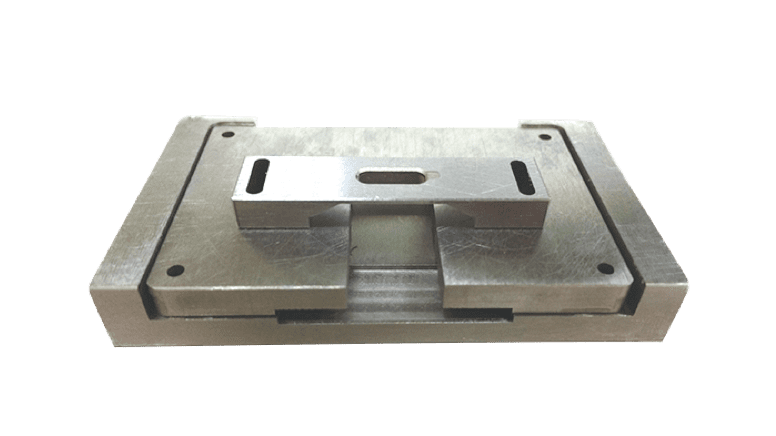

This USB Type-C mechanical test fixture(AUM-16008-S2)is specifically designed for 4 axis continuity test of the Type-C connector family. It aims to test the vertical angle of theconnector to conform with the specifications of the USB Type-C Certification Group B1-3.

Application

It applies to all USB Type-C family, including receptacle connectors, plug connectors and cables.

Key Feature

  • Designed for the 4 Axis Continuity Testing of the USB Type-C Connector family
  • Vertical Angle – Receptacle configuration with respect to the mounting surface
  • Following USB Type-C Connectors and Cable Assemblies Compliance Document Rev.1.0

Specification

  • 73 x 43.5 x 15.7 mm
  • Operating Temperature 0° ~ 55° C
  • Part No.: AUM-16008-S2
