Allion Labs / Lucas Chu
More people prefer to eat out nowadays. How to eat healthier is a topic that interests this busy modern world. Smart sous vide cooking may provide a convenient way to prepare a balanced diet while nobody is getting tied to the kitchen.
In the past, people found a method quite similar to sous vide cooking but far more complicated: They used steam cookers, a timer and a current regulator to control the cooking time and temperature.
People have a better choice now. Smart sous vide cookers allow us to master the entire cooking process with portable devices via either Wi-Fi or Bluetooth®. It sounds great but the devil is in the detail. In this article, we are going to find out whether this kitchen gadget could really work as expected. We will give an in-depth examination of functions including Bluetooth® and Wi-Fi connectivity, App usability, and temperature and power consumption control.
Temperature Control and Power Consumption Management
Figure 1 shows that the maximum power consumption occurs at the first 15 minutes of the heating process (See the blue curve). The power consumption will gradually decrease until the current temperature reaches the target temperature. Then the temperature will be precisely maintained at a lower wattage. After the heat-up time is over, the App will send a message and the cooker will beep to notify users.

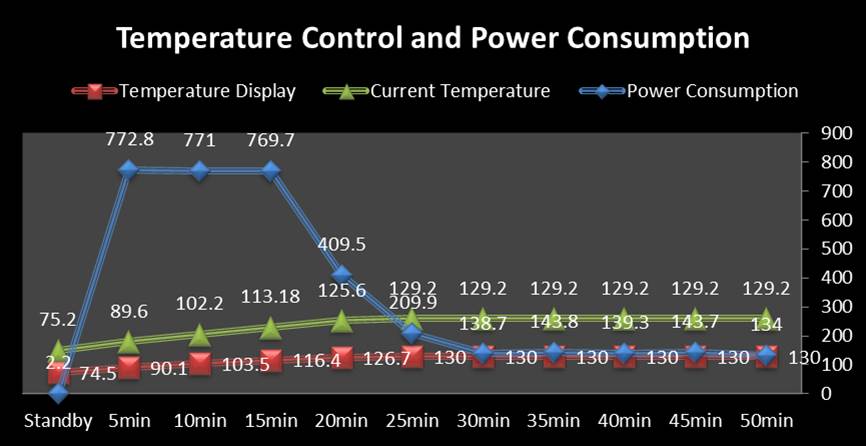

Figure 1：Temperature Control and Power Consumption
Figure 2 shows the success rate of Bluetooth® pairing between different smartphones and the sous vide cooker (The tested mobiles’ Bluetooth® are enabled). Bluetooth® paring failure occurs sometimes, but most of the time the paring is successful. Once successfully paired, no serious problem will occur.

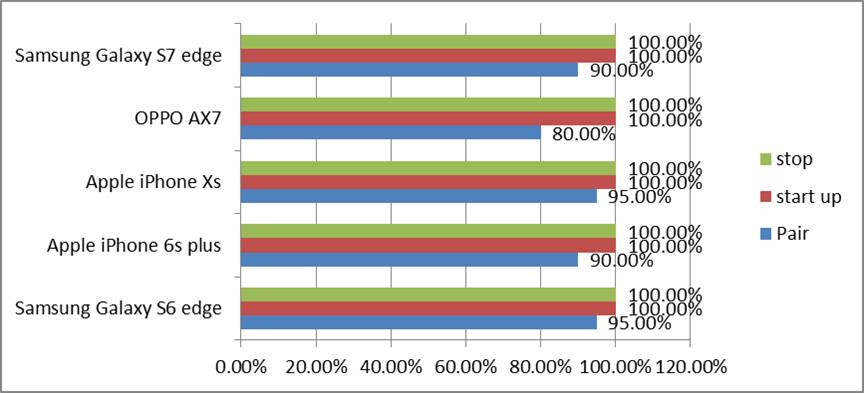

Figure 2：Bluetooth® pairing between different smartphones
Reconnect to the Already-paired Sous Vide Cooker via Mobile App
After the smartphones are successfully connected to the sous vide cooker via Bluetooth®, we turn off the Bluetooth® on the smartphones and try to reconnect with the cooker (Figure 3):
- Android Phones: The sous vide Android App can directly turn on Bluetooth®, but there is a chance of error.
- iOS Phones: Bluetooth® cannot be directly turned on via App. iOS users have to leave the App interface first, manually tap the Bluetooth® button, and go back to the App.

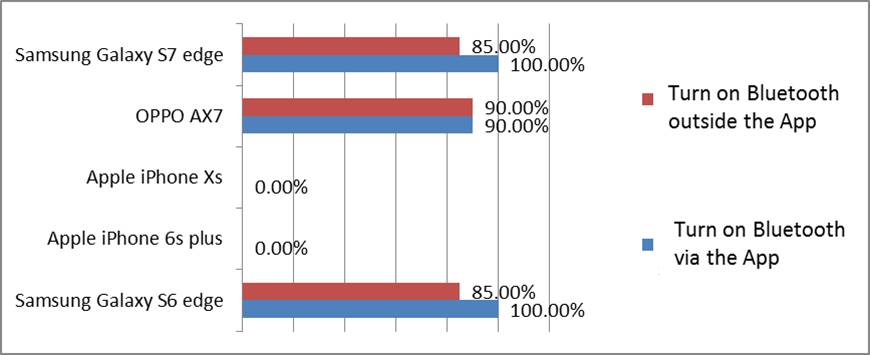

Figure 3：Turn on Bluetooth® via App / Outside App
Reconnect Automatically within/out of Bluetooth® Range
These days, people take their smartphones everywhere they go. It is highly possible that their phones are out of the sous vide cooker’s Bluetooth® range. If users have to manually reconnect to the cooker every single time after Bluetooth® disconnects, they will definitely find the situation inconvenient.
In this session, we measure the success rate of automatic reconnections. Android and iOS phones are first connected to the sous vide cooker via Bluetooth®. Then those phones will be located out of the sous vide cooker’s Bluetooth® range for a while. Finally, we relocate the phones within the range to see whether they will automatically reconnect to the cooker via Bluetooth®. The result is (See Figure 4): While Android phones have a 50/50 chance to automatically reconnect to the sous vide cooker, iOS phones can reconnect to the cooker with a much higher rate of success.

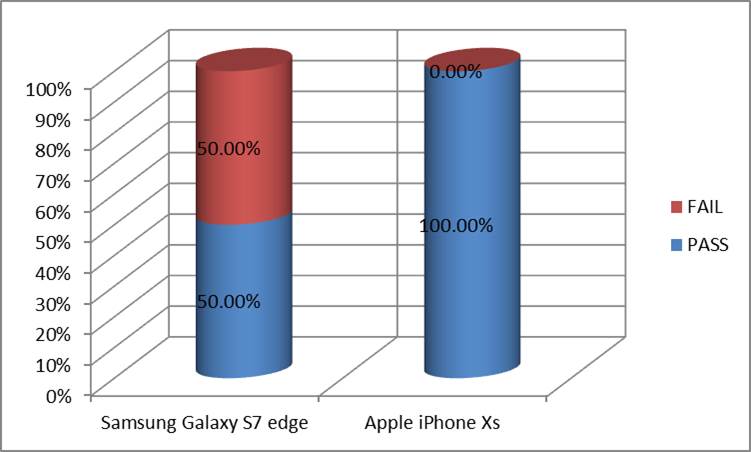

Figure 4：Success rate of automatic re-connections on Android/IOS
In this test, we analyze how efficiently the sous vide cooker connects to wireless network with different security encryptions. There are two main findings: First, there is a low probability that the sous vide cooker fails to connect to Wi-Fi. Second, when it comes to WEP settings, some APs require 5 bits to be set. However, the input of the sous vide cooker is at least 8 bits, which causes Wi-Fi disconnecting.
During the network stability test, the mobile device might go offline when it is on standby or converting signals from Wi-Fi to Cellular. The wireless connectivity will be back to normal after users leave the App interface and later manually open the App again. However, this still leaves users with a poor impression.
Low Water Level Protection Mechanism

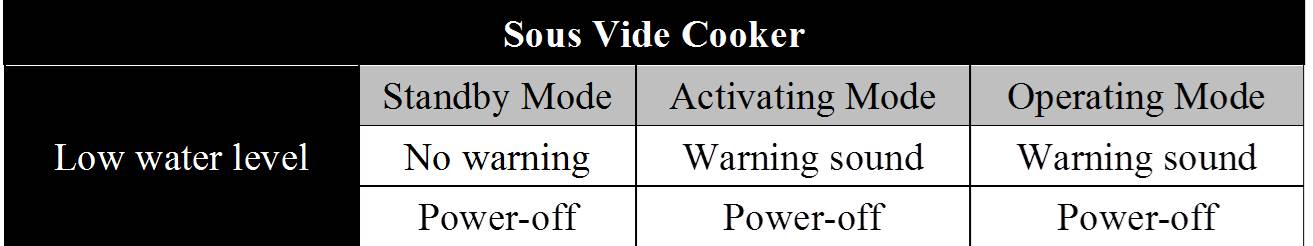

The following Table 1 shows how the sous vide cooker reacts in 3 different modes when facing low water level:
- In the low water level, the sous vide cooker will not be activated (Meet safety requirements).
- Except for the standby mode, the cooker will beep whenever it reaches a low water level (Meet safety requirements).
- However, in the low water level, the App does not activate alerts to users. Thus, we suggest that the sous vide App should also automatically send alerts of the low water level.
- The sous vide Android App would get stuck after trying to start the cooker in the low water level while iOS App would not.
Sous Vide App Issues

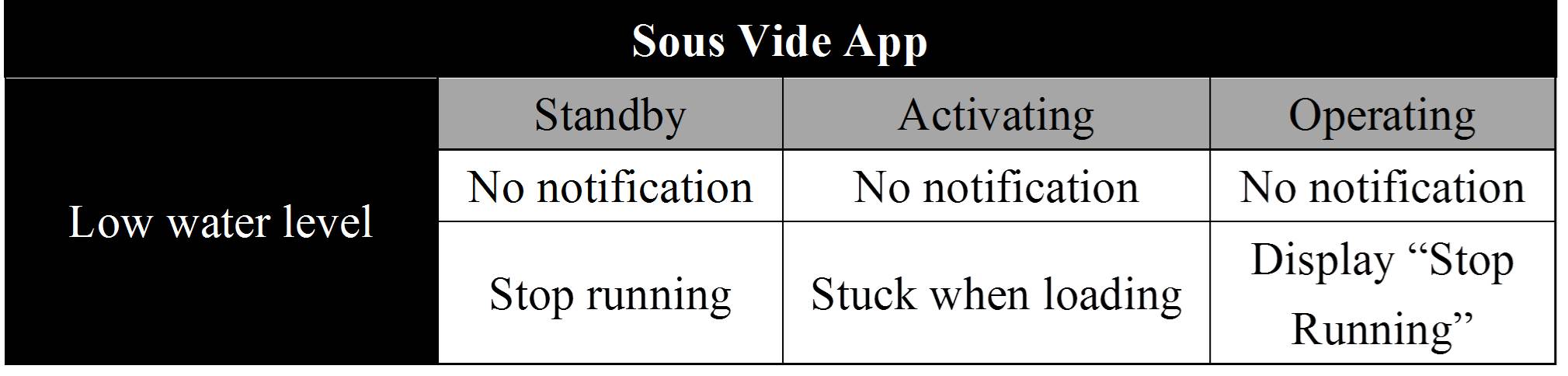

Following Table 2 are the issues associated with the sous vide App:
- When the low water level is under the minimum level, users are not immediately informed because the App does not send a warning message.
- If the cooker stops running, but users try to start the cooker in the low water level, the App will be stuck.
Most common issues posted online are matters concerning Bluetooth® and Wi-Fi connections. Even though those problems can be solved by manually reconnecting to Bluetooth® or Wi-Fi, this inconvenience still gives negative impressions.
