Are You Ready to Face the 4 Deadliest Quality Threats?

Cable assemblies and connectors are everywhere. They are designed into devices for higher bandwidth and faster connections. But if cables or connectors fail, it will cause inconvenience to end users and even permanent damage to a company’s reputation.

Drastic changes in temperature or humidity affect the electrical signals of a cable.

The data transmission is not stable when connecting a smartphone to a car stereo with a cable.

A phone has a short circuit or even catches on fire while charging. This poses a serious threat to safety and to the brand image.

“Device may not be supported” message shows up because a smartphone is not compatible with an adapter.

Allion’s Cable-Connector Test Solutions

Secure Product Quality from Design to Testing

We help you avoid endless design revisions. At different stages of product development, Allion provides customized technical support, including engineering, manufacturing, analysis, debugging, consulting, and validation. What we offer is a suite of customer-centric solutions to accomplish the desired product quality and accelerate the product development process.

Logo Compliance and Certification

Ecosystem Validation

Product Design and Consulting

IIoT Automated Testing

Quality Requirement Specification (QRS)

Test Equipment and Facilities

Logo Compliance and Certification

01

Allion Labs is qualified and authorized by the USB, HDMI Forum, VESA, Intel® Corporation to perform product certification testing for USB, HDMI, DisplayPort, Thunderbolt, and Car Ethernet. Since we keep a close relationship with these international associations, we can assist you to refine your product and pass logo compliance testing faster by providing the full range of certification programs, the latest update on test requirements, debugging and consulting services.

USB

Thunderbolt

HDMI

DisplayPort

For more information on Allion’s Cable and Connector Validation, please contact us.

Ecosystem Validation

02

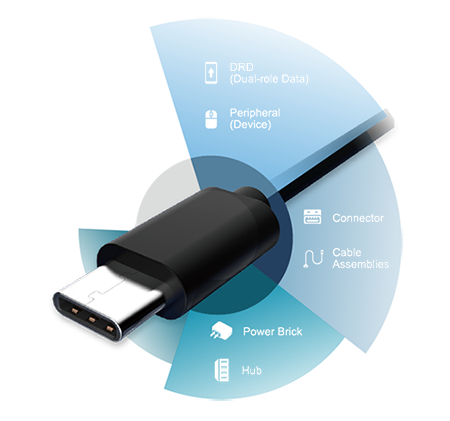

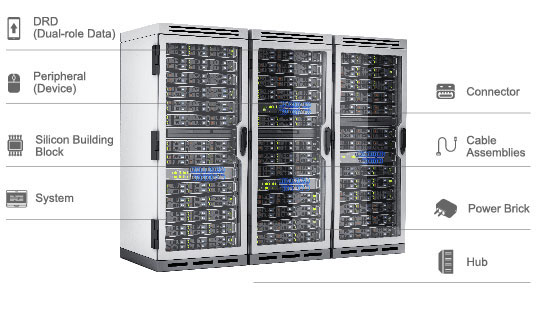

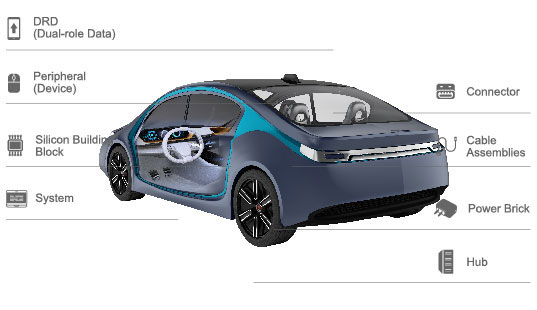

Product characteristics in server and automotive ecosystems vary. Allion assist you to draw up your own test strategy by offering multi-dimensional testing service, including reliability, connectivity, compatibility, power delivery, and signal integrity.

Automotive Ethernet
CAN
DDR
HDMI
LVDS
MIPI
PCIe
SAE
SATA
SD
USB
SFP+ & SFP28
QSFP & QSFP28
SlimSAS
Mini-SAS
U.2(SFF-8639)
U.2(PCle SATA68P)
EDSFF
Mini-SAS HD
Sliver
mSATA Express
PCle
OCuLink

For more information on Allion’s Cable and Connector Validation, please contact us.

Product Design and Consulting

03

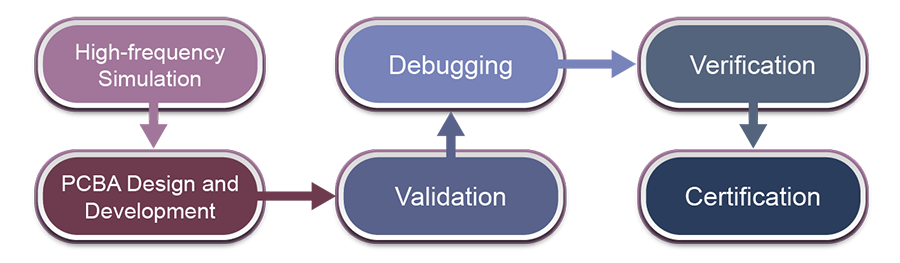

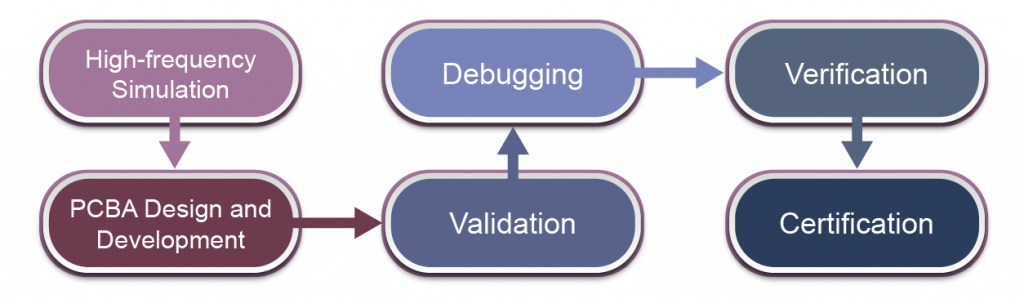

Vendors who want to take steps toward making accessories, such as port/cable adapters and dongle systems, are often worried about a lack of experience in electrical design. With over 30 years of cable-connector testing and IT consulting experiences, Allion offers one-stop solutions from product design all the way to product certification.

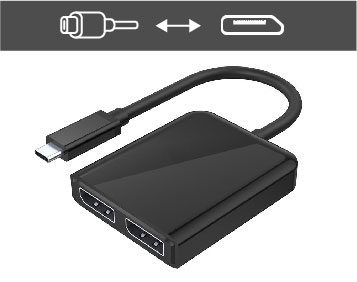

USB-C to DP1.4 Adaptor

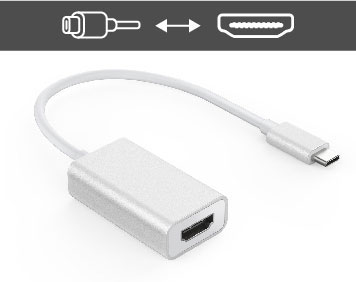

USB-C to HDMI Adaptor

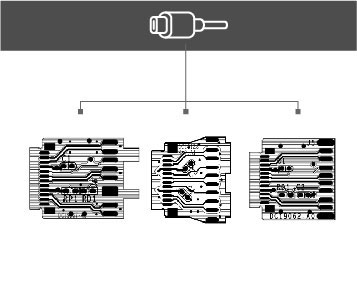

USB-C Paddle Card

For more information on Allion’s Cable and Connector Validation, please contact us.

IIoT Automated Testing

04

Allion integrates cable-connector testing with AI visual recognition to deliver high accuracy, high consistency, and high efficiency without being affected by the length of tests. This AI test solution is now applied to USB-C Pin Define Color testing.

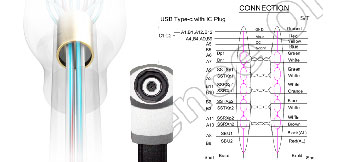

USB Type-C® Pin Define Color

For more information on Allion’s Cable and Connector Validation, please contact us.

Quality Requirement Specification (QRS)

05

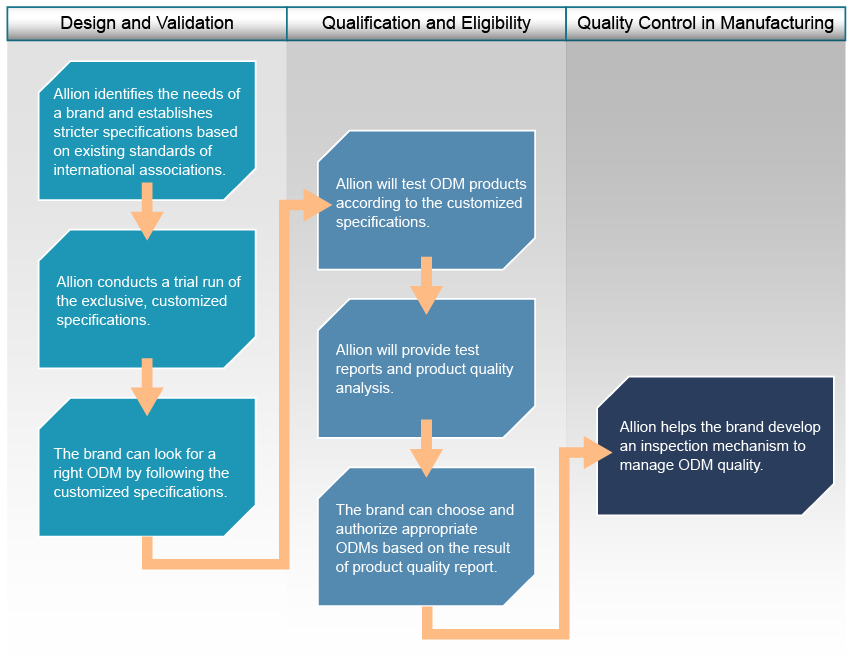

Allion launches the QRS (Quality Requirement Specification) for brands who favor the product ODM (Original Design Manufacturer) model.
Based on existing standards of international associations, Allion establishes a set of stricter specifications that meet safety, functionality, and performance requirements of different brands. Allion ensures that the best user experience is delivered to help reduce product returns.

Allion QRS Partners: Microsoft, Google, HP, Intel, Dell, BestBuy, and many prestigious companies

For more information on Allion’s Cable and Connector Validation, please contact us.

Test Equipment and Facilities

06

Dedicated to High-Quality, Accuracy, and Efficiency in Testing

As a leading expert in cable-connector certification, Allion has invested millions of dollars in test equipment, facilities, and environment.

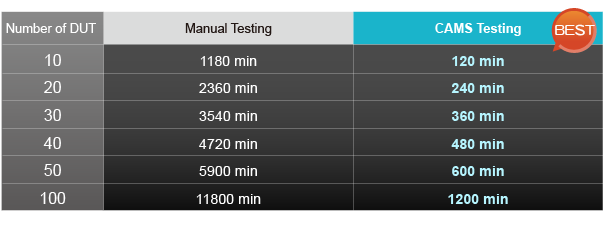

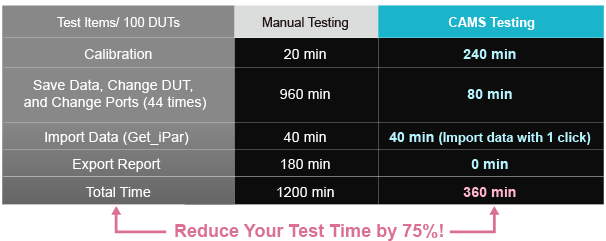

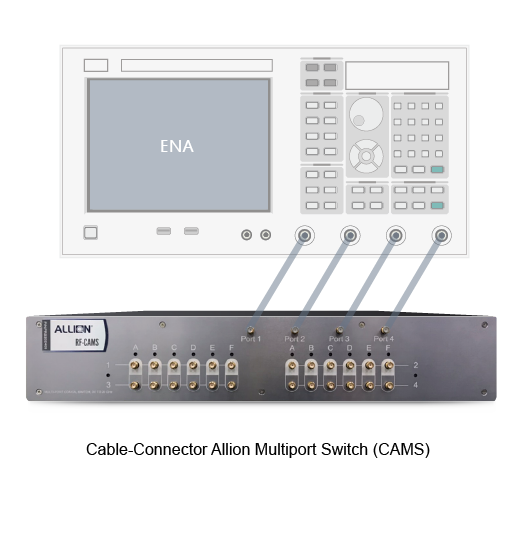

Allion has developed Allion Cable-Connector Multiport System (ACMS) for USB 3.2®, USB4®, HDMI 2.1 testing. ACMS is able to work with a network analyzer and Get_iPar(Intel) to automate high frequency tests.

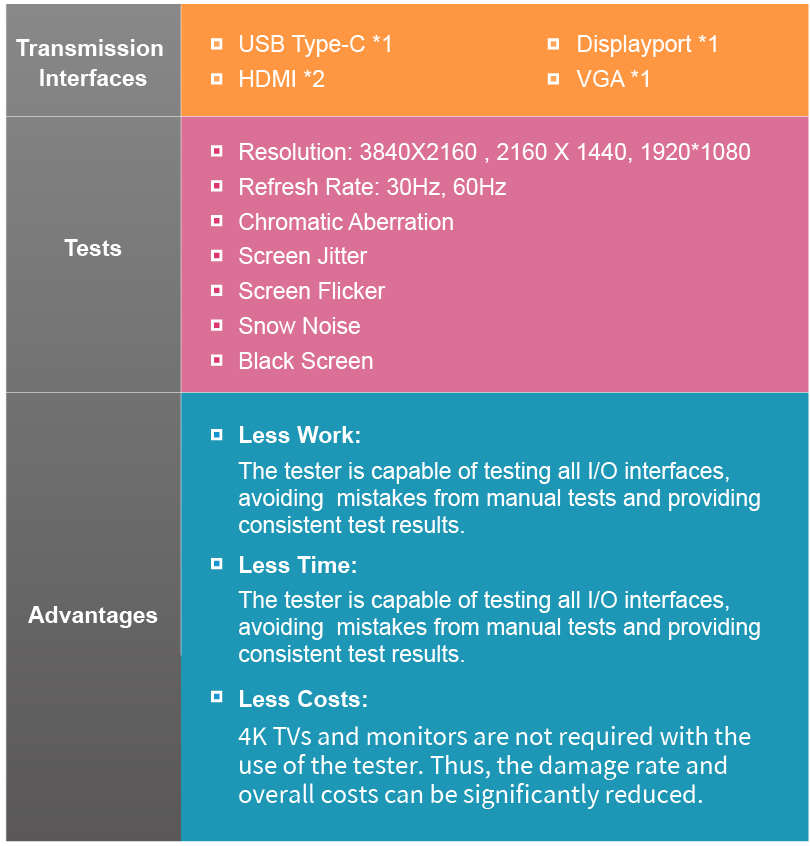

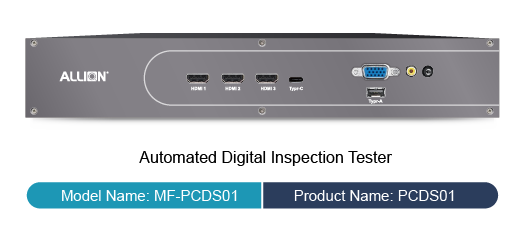

Many A/V transmission interfaces face issues such as connection failure between products and attenuation due to adapters/extension cables. To combat this, Allion developed a total solution designed for the manufacturing industry: the Automated Digital Inspection Tester. It is capable running complete tests for all I/O interfaces—such as USB Type-C, HDMI, DisplayPort, and VGA. The tester can be used to verify the quality of cables, dongles, docking, adapters, VGA graphics cards, and various other A/V transmission products and interfaces.

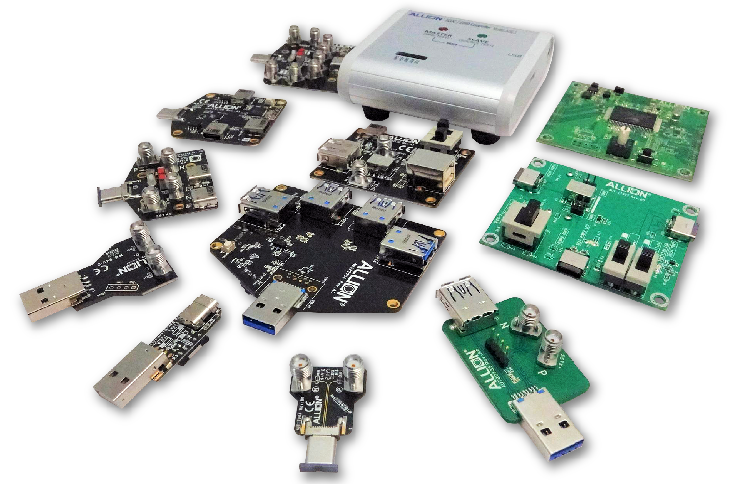

Fixture Quality Trusted by Tech Leaders

Allion has exclusively developed a wide spectrum of test fixtures, many of which are approved by the USB, HDMI Forum, VESA, and other leading international associations. We have conducted 100+ projects of high-frequency and automated fixture design based on different standards and specifications. At Allion, you can find the customizable fixture that makes your product validation more efficient and cost-effective.

Learn More

For more information on Allion’s Cable and Connector Validation, please contact us.
