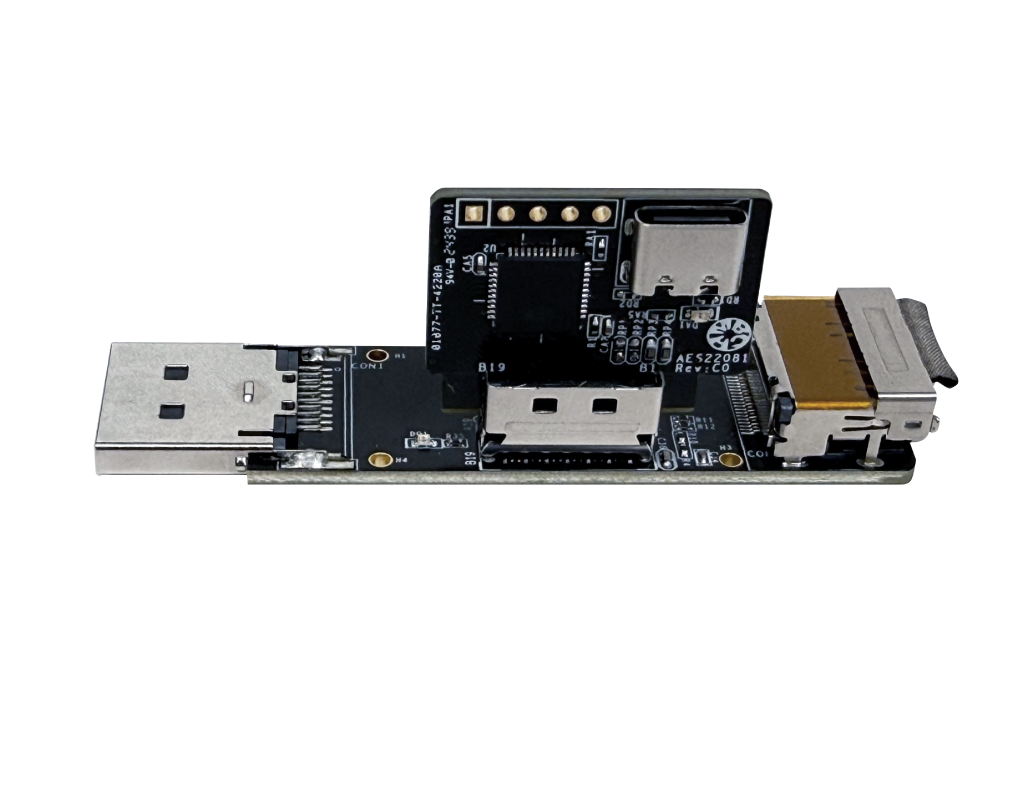

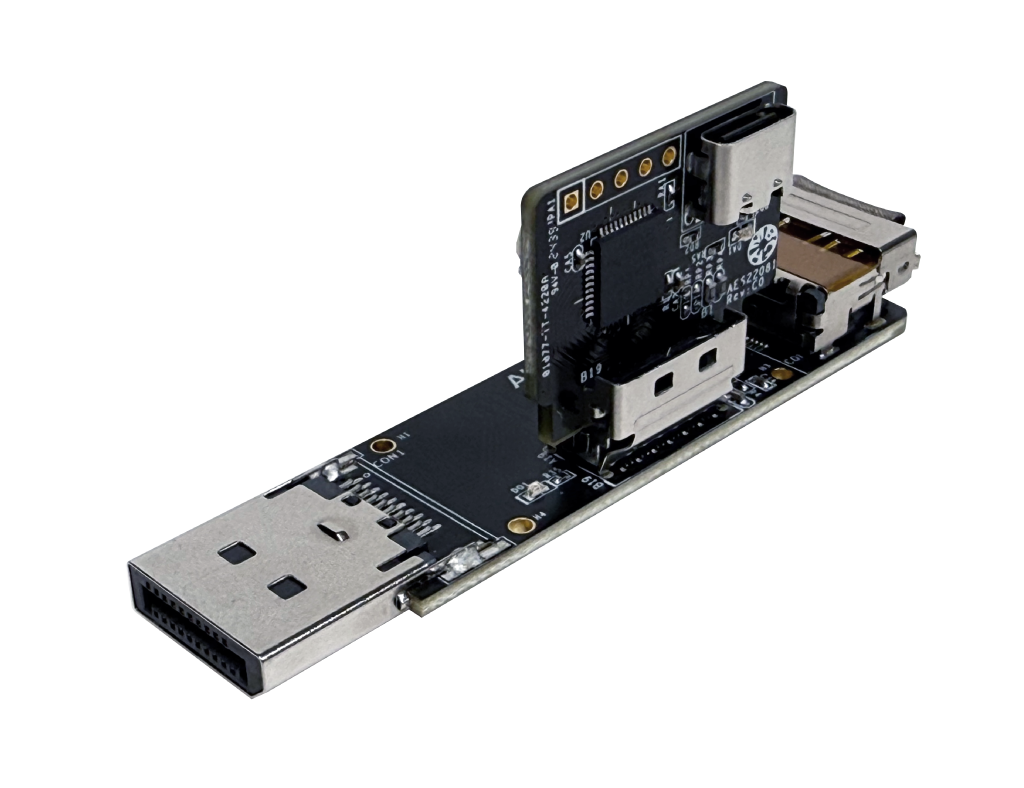

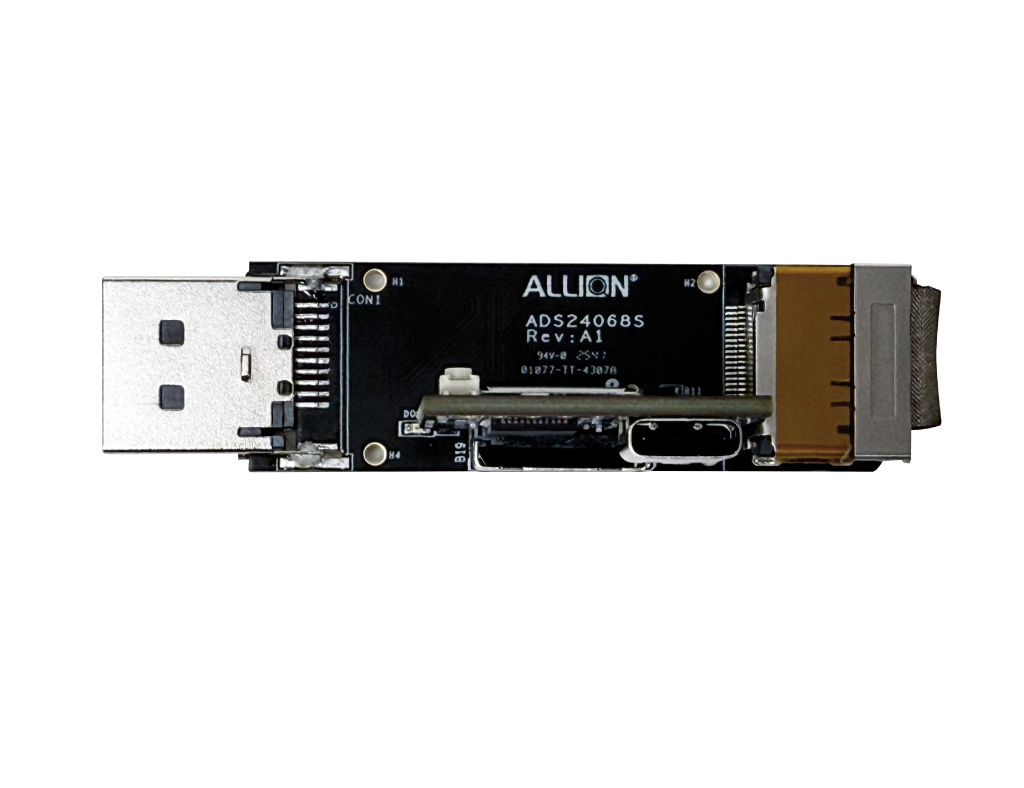

DisplayPort 2.1 1:1 Switch Test Fixture
Product ID: ADS24068S
Product Summary
DP 2.1 One by One Programmable Tools
Application
- Cycling Testing, Product Line Manufacture
- Stability & Relibility Testing
- Interoperability & Functional Test
Key Features
- Bidirectional 1 by 1 DP Input/Output
- Programmable Utility to setup On and Off Timing, Cycling Times. Adjustable timing to suit your test environment.
- Up to 54 Gbps(UHBR 13.5) High Speed Signals Support
Specification
- One Plug and One Receptacle of DP Connectors (Both Bidirectional)
- One Type-C connector for S/W Contorl & 5V Power Input
- Dimension : 71.8 x 19.5mm
For more information or other requests, please feel free to contact us at: service@allion.com
