OCP NIC 3.0 PCIe CLB5.0 Test Fixture

Product ID: APT22005 / APT22009 / APT22010 / APT21135

Product Summary

New test fixtures support OCP NIC3.0 and EDSFF(Enterprise and Data Center SSD Form Factor) 4C/4C+ Formfactor for PCIe TX& RX Measurement

Modular & Variable Cable Assembly.

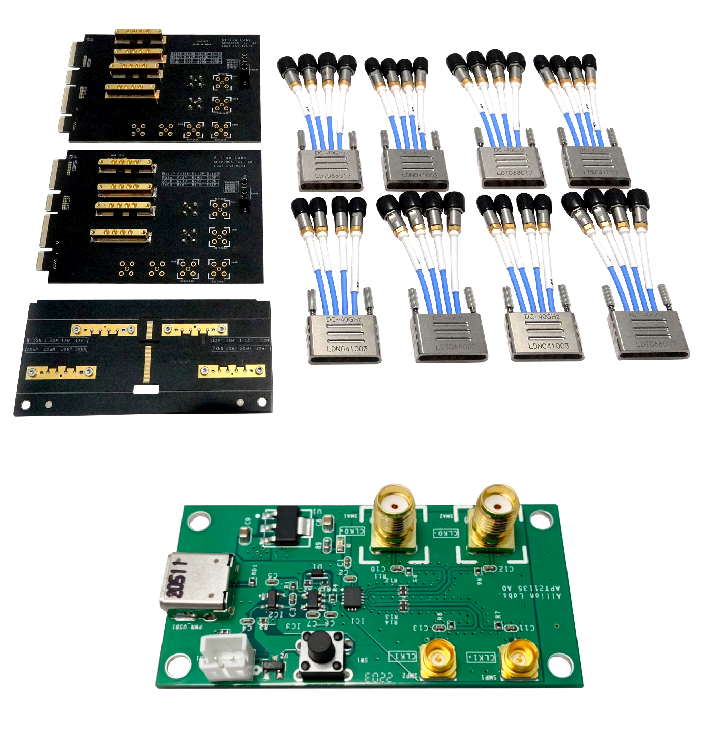

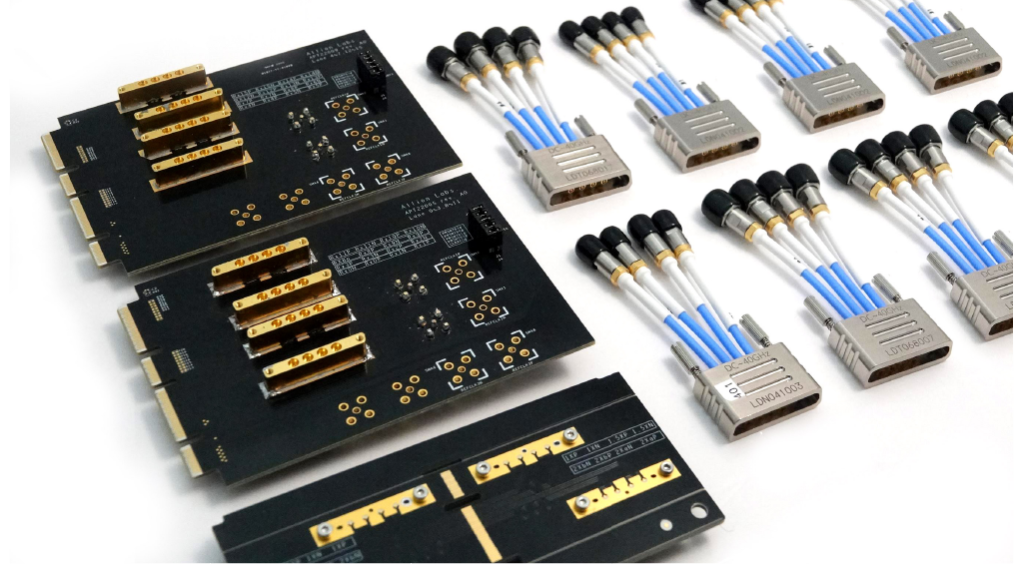

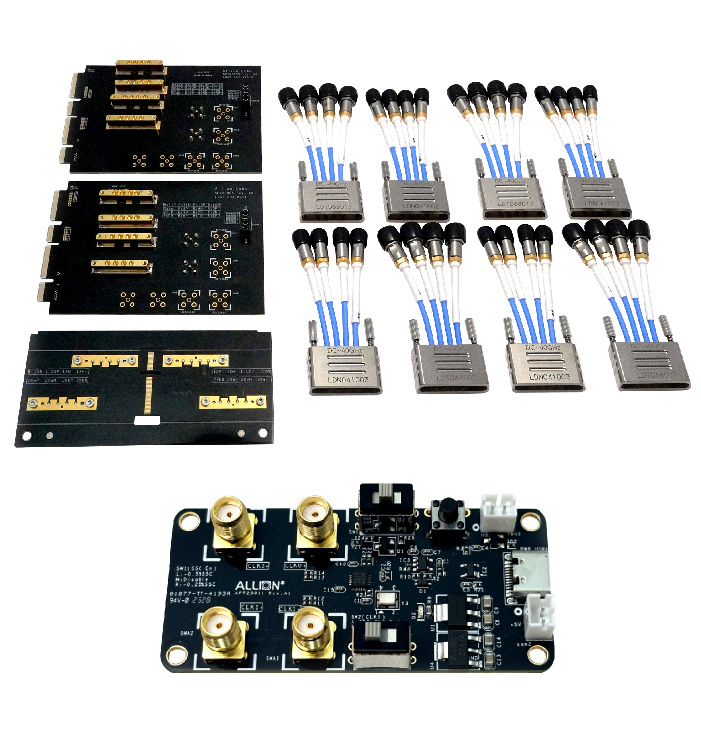

  • The OCP NIC3.0 PCIe CLB5.0 Test Fixture Set contains the below items:
    1. OCP NIC3.0 CLB5.0-L0x8 (Model Name: APT22005)
    2. OCP NIC3.0 CLB5.0-L4x12 (Model Name: APT22009)
    3. OCP NIC3.0 CLB5.0-CAL (Model Name: APT22010)

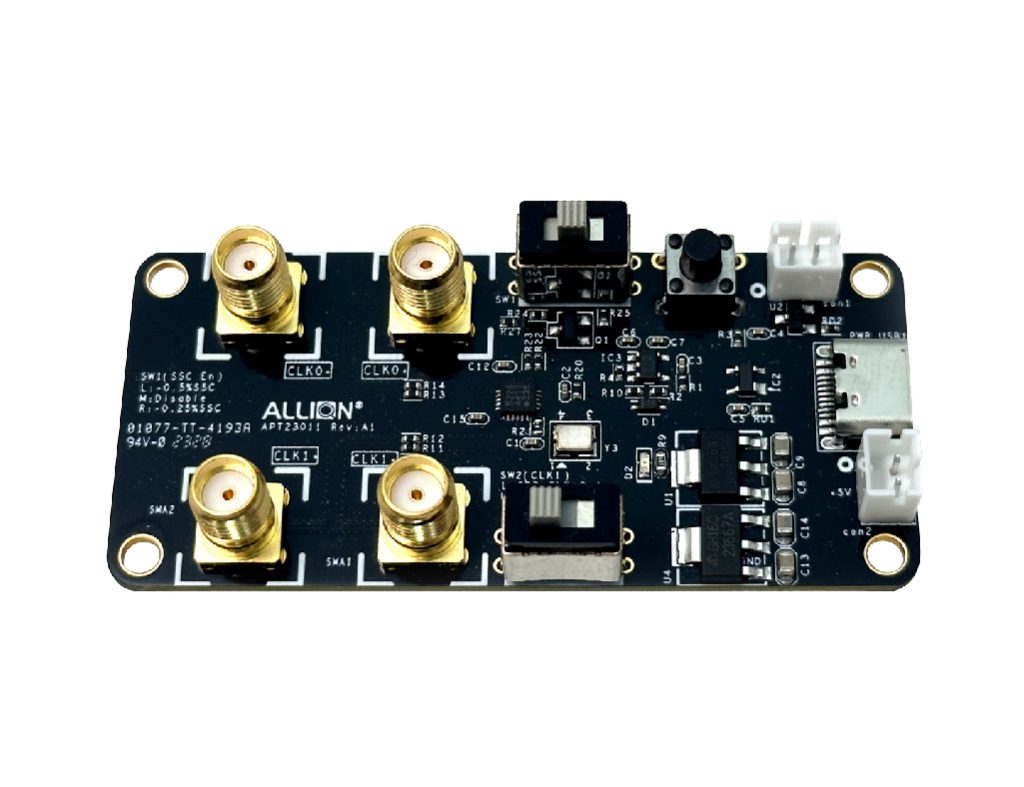

    4. Allion CMTS Board (Model Name: APT21135)
    5. Cable Module*8
  • The lead time will be 2-4 weeks from order to shipment.

Application

  1. PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen5)
  2. PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  3. Applicable for Server, IPC, or system product which has designed OCP NIC 3.0 interface or EDSFF 4C/4C+ connector
  4. Can be used with APMS (Allion PCIe Multiport System) to achieve automation measurement

Key Features

  1. PCIe OCP NIC 3.0/EDSFF 4C/4C+ Compliance Electical Test for Tx/Rx
  2. Durable SMPM Connectors and flexible Cable Assembly
  3. SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  4. 2X Thru Calibration board is provided

Specification

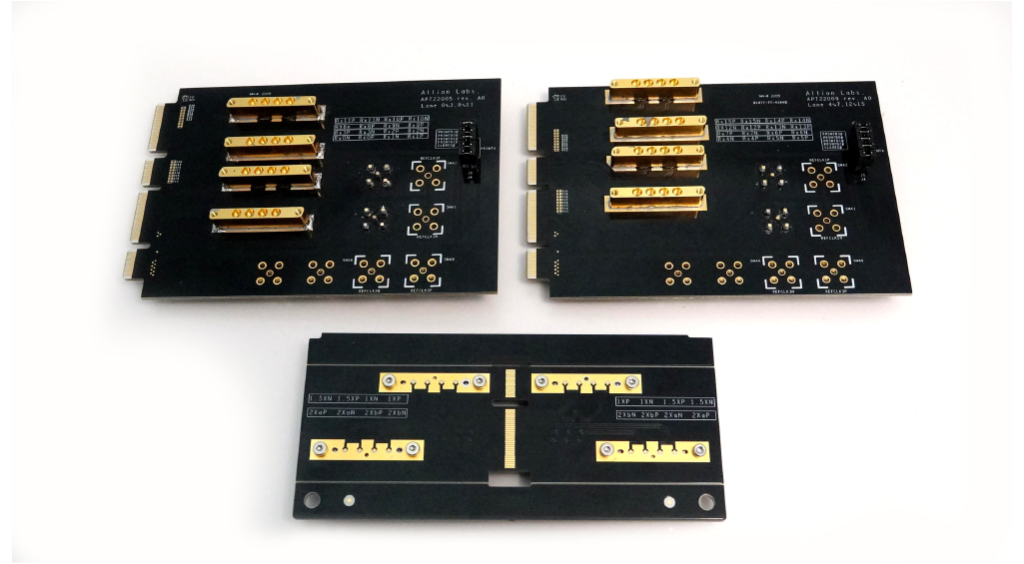

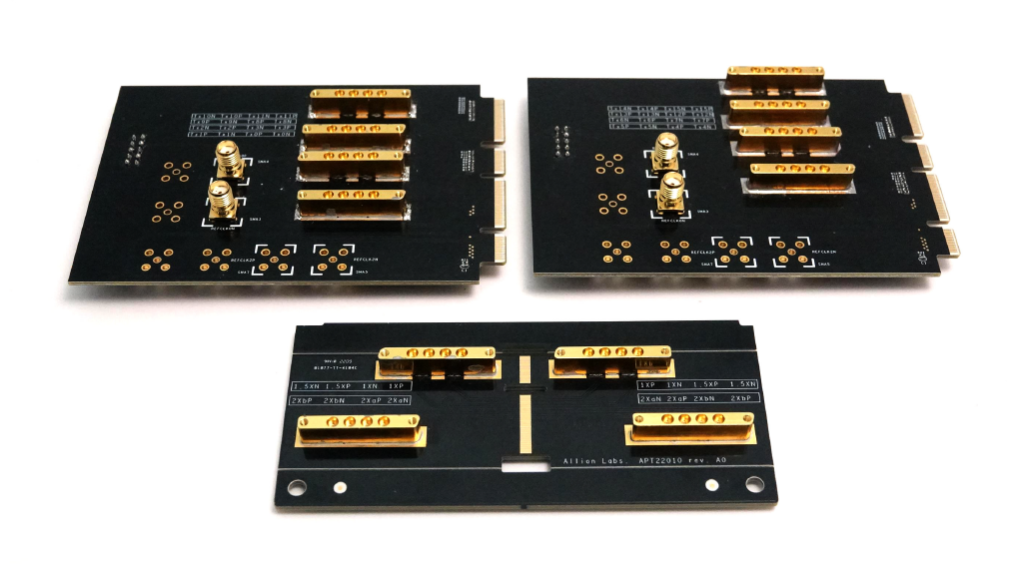

APT22005/APT22009
  • OCP NIC3.0 or EDSFF C4/C4+ PCIe Golden Finger connect to Host for PCIe Test.
  • (APT22005) Eight SMPM Connectors for Lane 0~3 & 8~11
    (APT22009) Eight SMPM Connectors for Lane 4 ~ 7 & 12~15
  • Two SMA Connectors for Reference Clock
  • Eight PC-2.92 to SMPM 3 inches Cable Box (Each Cable Box connects 2 pairs of differential signals)
APT22010
  • Two SMPM Connectors for 2x Thru Calibration

For more information or other requests, please feel free to contact us at: service@allion.com
