EDSFF E1/E3 PCIe CLB5.0 Test Fixture

Product ID: APT21099 / APT21108 / APT21107 / APT21135

Product Summary

New Test Fixture for EDSFF(Enterprise and Data Center SSD Form Factor) E1/E3 PCIe CLB5.0

Modular & Variable Cable Assembly

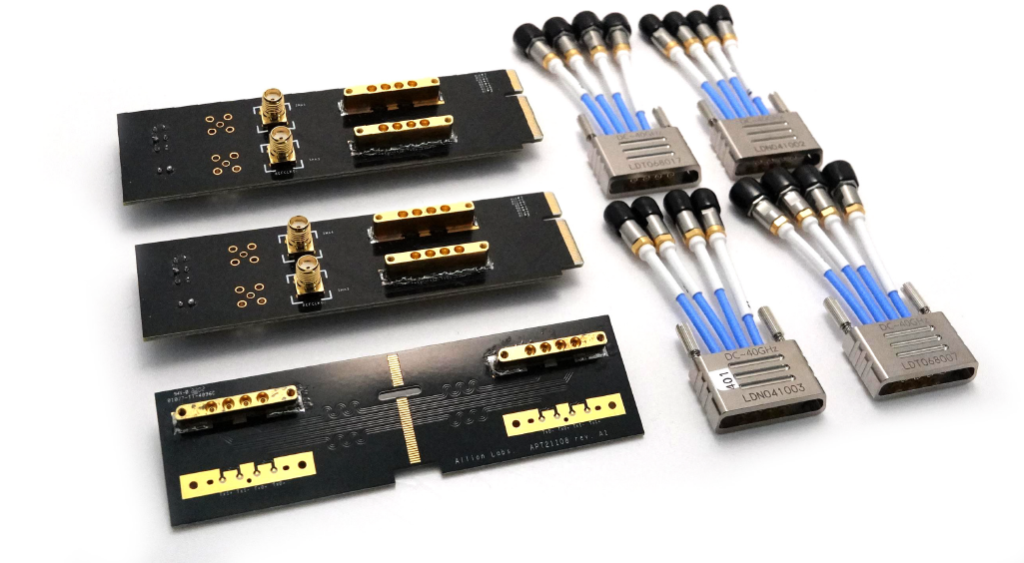

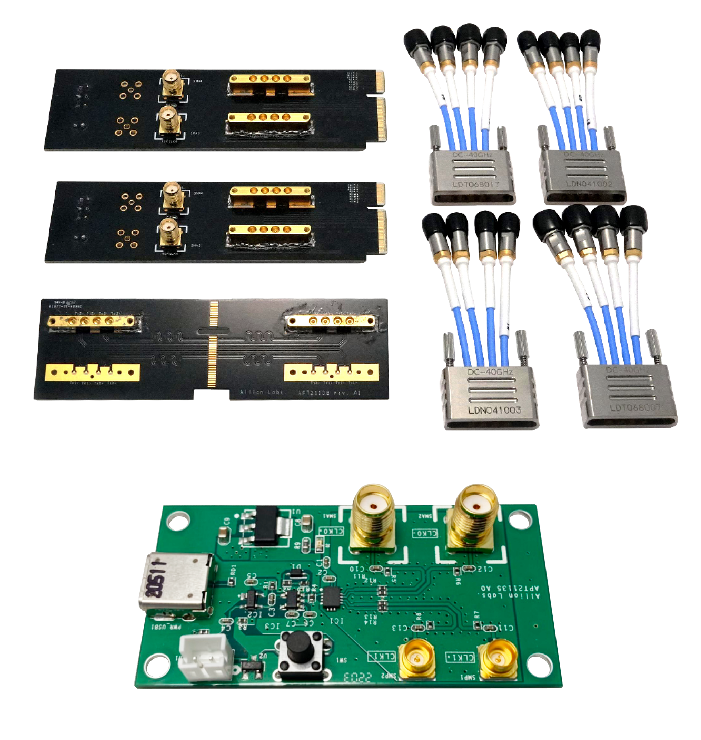

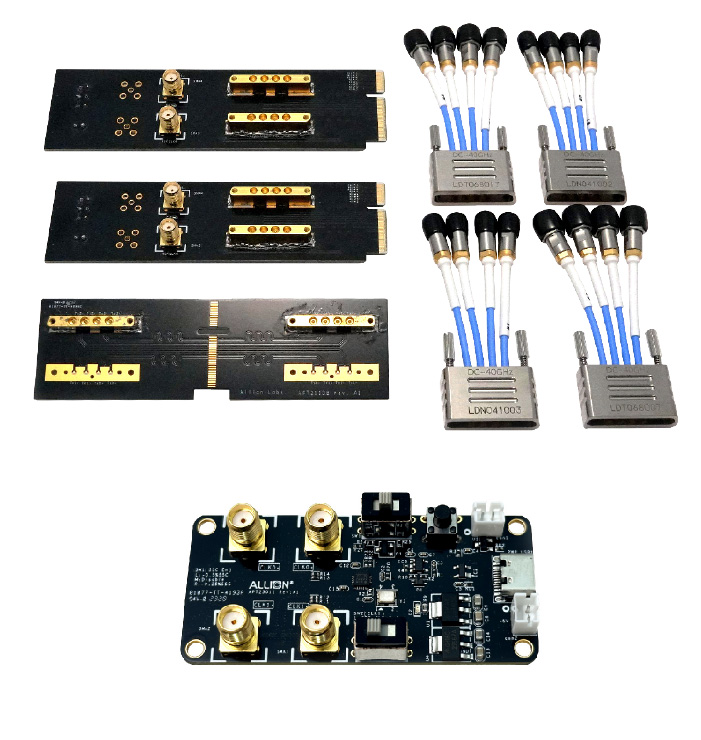

  • The EDSFF E1/E3 PCIe CLB5.0 Test Fixture Setcontains the below items: contains the below items:
    1. E1/E3 CLB5.0- L0123 (Model Name: APT21099)
    2. E1/E3 CLB5.0- CAL (Model Name: APT21108)
    3. E3 CLB5.0- L4567 (Model Name: APT21107)

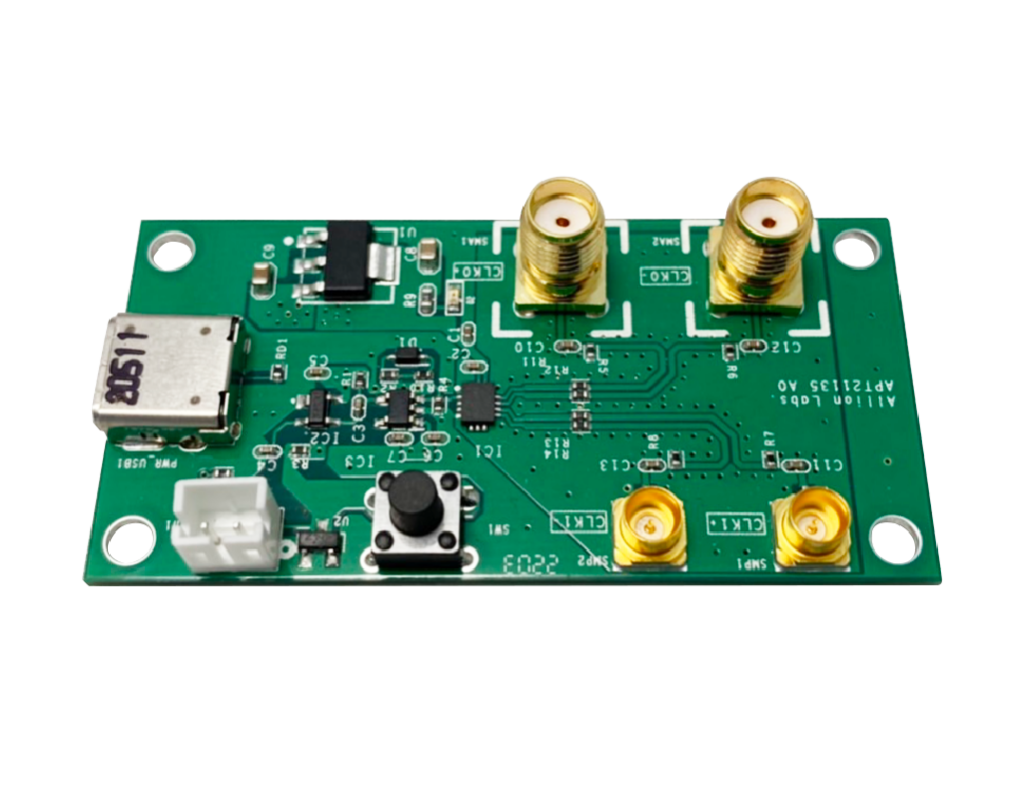

    4. Allion CMTS Board (Model Name: APT21135)
    5. Cable Module*4
  • The lead time will be 2-4 weeks from order to shipment.

Application

  1. PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen5)
  2. PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  3. Applicable for Server, IPC, or system product which has designed E1/E3 interface

Key Features

  1. PCIe EDSFF E1/E3 Compliance Electical Test for Tx/Rx
  2. Durable SMPM Connectors and flexible Cable Assembly
  3. SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  4. 2X Thru Calibration board is provided

Specification

APT21099 / APT21107
  • EDSFF 1C/2C PCIe Golden Finger connect to Host for PCIe Test
  • (APT21099) Four SMPM Connectors for Lane 0~3
    (APT21107) Four SMPM Connectors for Lane 4~7
  • Two SMA Connectors for Reference Clock

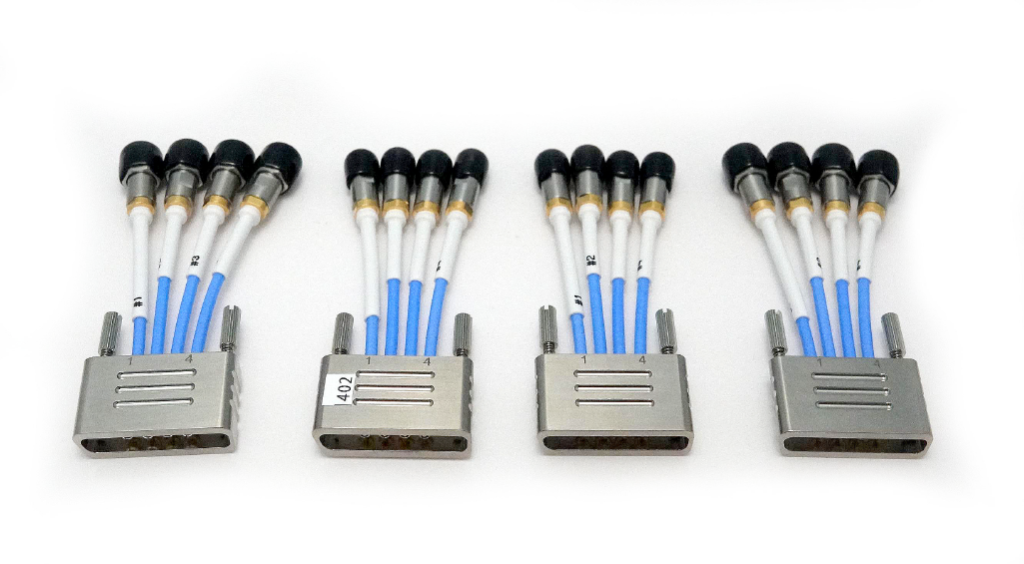

  • Four SMPM PC-2.92 to SMPM 3 inches Cable Box (Each Cable Box connects 2 pairs of differential signals)
APT21108
  • Two SMPM Connectors for 2x Thru Calibration

For more information or other requests, please feel free to contact us at: service@allion.com
