PCIe M.2 CLB6.0 Test Fixture Set

Product Summary

PCIe M.2 CLB6.0 Test Fixture Set

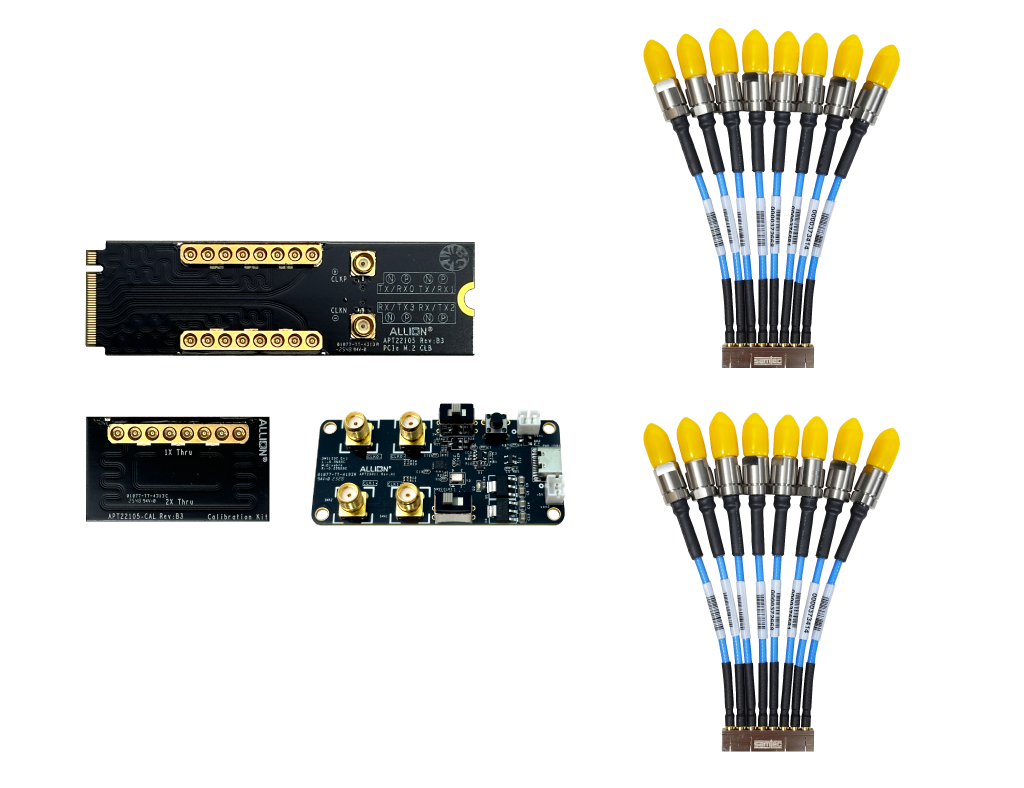

• The PCIe M.2 CLB6.0 Test Fixture Set contains the below items:

1. PCIe M.2 CLB6.0 Test Fixture (Model Name: APT22105)
2. PCIe M.2 Calibration board (Model Name: APT22105-CAL)
3. Allion CMTS Board (Model Name: APT23011)
4. SMPM by 8 Cable Module*2

• The lead time will be 8-10 weeks from order to shipment.

Application

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe M.2 Socket

Key Features

• Compatible with PCIe M.2 Gen4 / Gen5 Electrical Test for Tx & Rx
• Stronger SMPM Connectors update to 40GHz Supported
• Flexible Cable Assembly to simple installation
• 2X Thru Calibration included. (Separated)

Specification

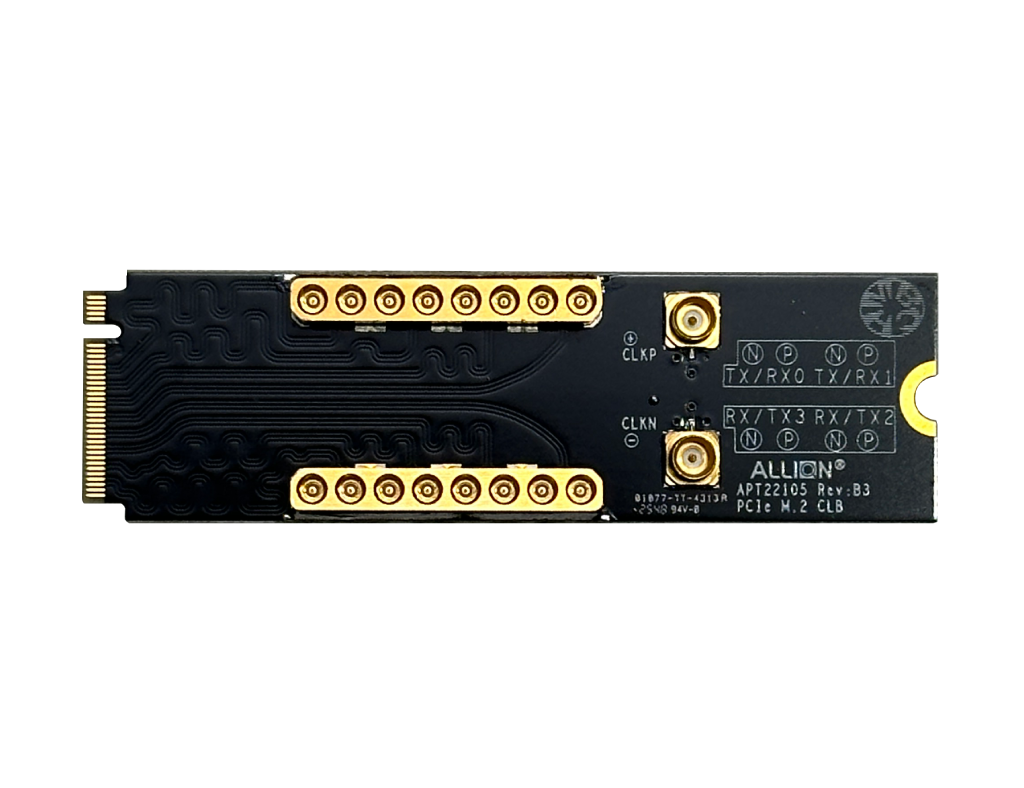

APT22105

• PCIe M.2 M-Key Golden Finger
• Two SMPM by 8 Connector for All 4 Lanes
• Two SMP Connector for Reference Clock
• Dimension : 22mm x 80mm

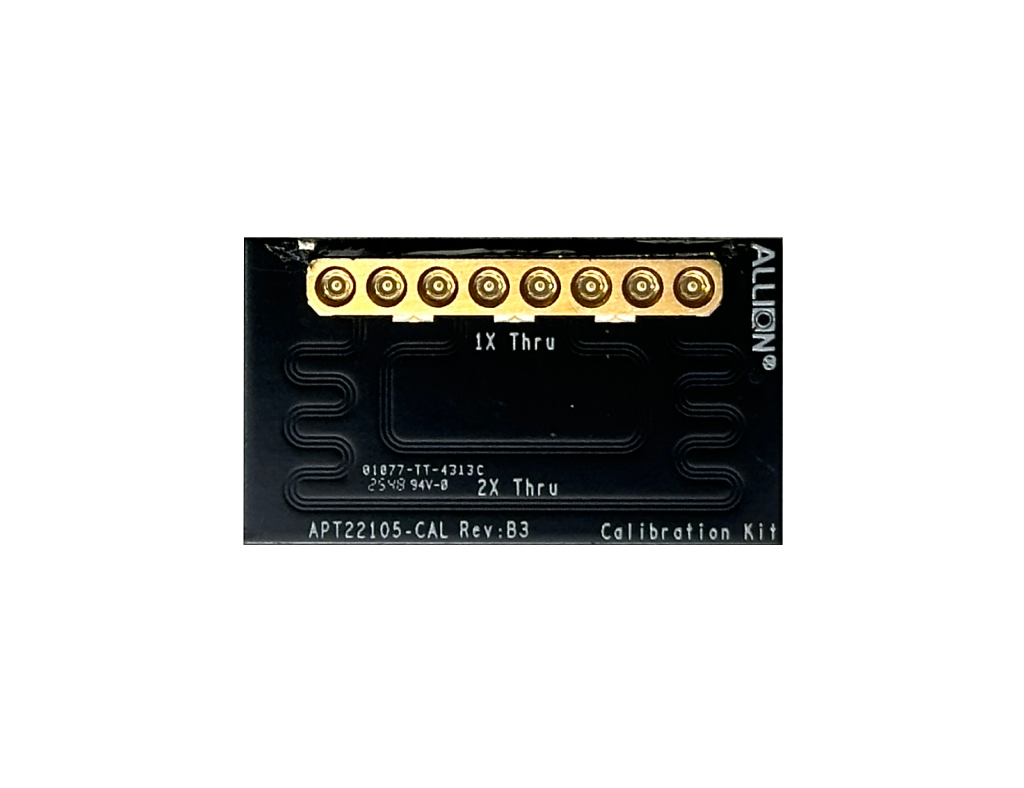

APT22105-CAL

• One SMPM by 8 Connector for 2x Thru Calibration
• Dimension : 22mm x 38mm
