PCIe OCP x16 CLB6.0 Test Fixture

Product Summary

PCIe OCP x16 CLB6.0 Test Fixture

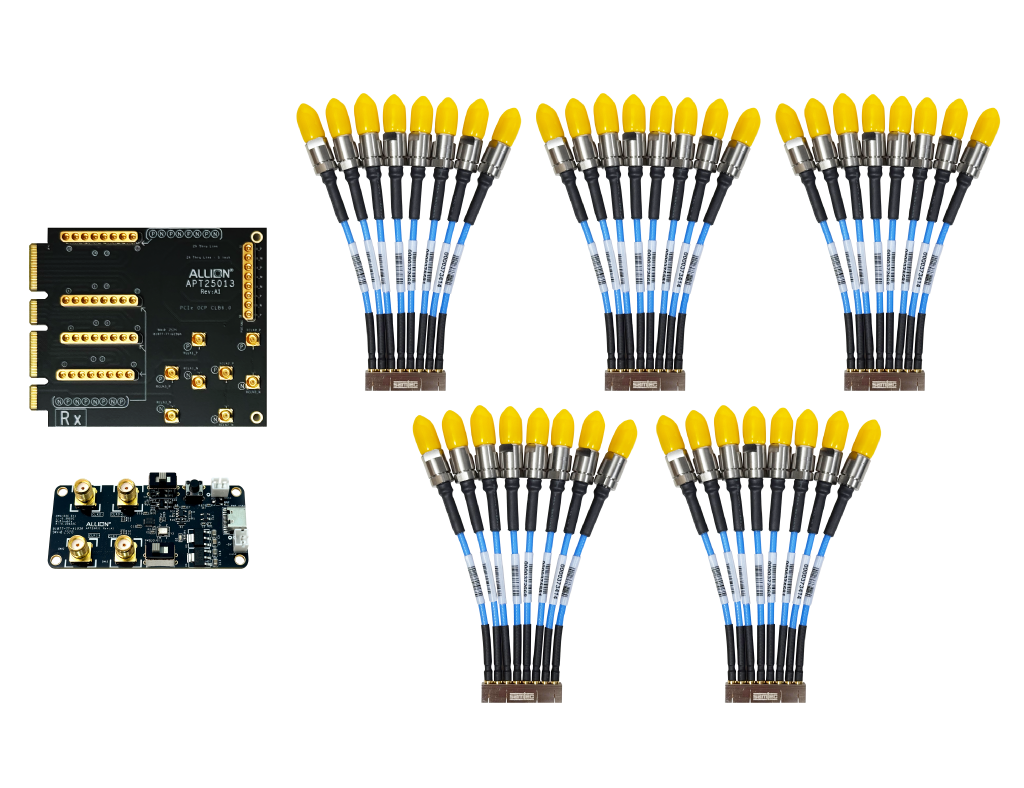

• The PCIe OCPx16 CLB6.0 Test Fixture Set contains the below items:

1. PCIe OCP Slot by 16 Test Fixture (Model Name: APT25013)
2. Allion CMTS Board (Model Name: APT23011)

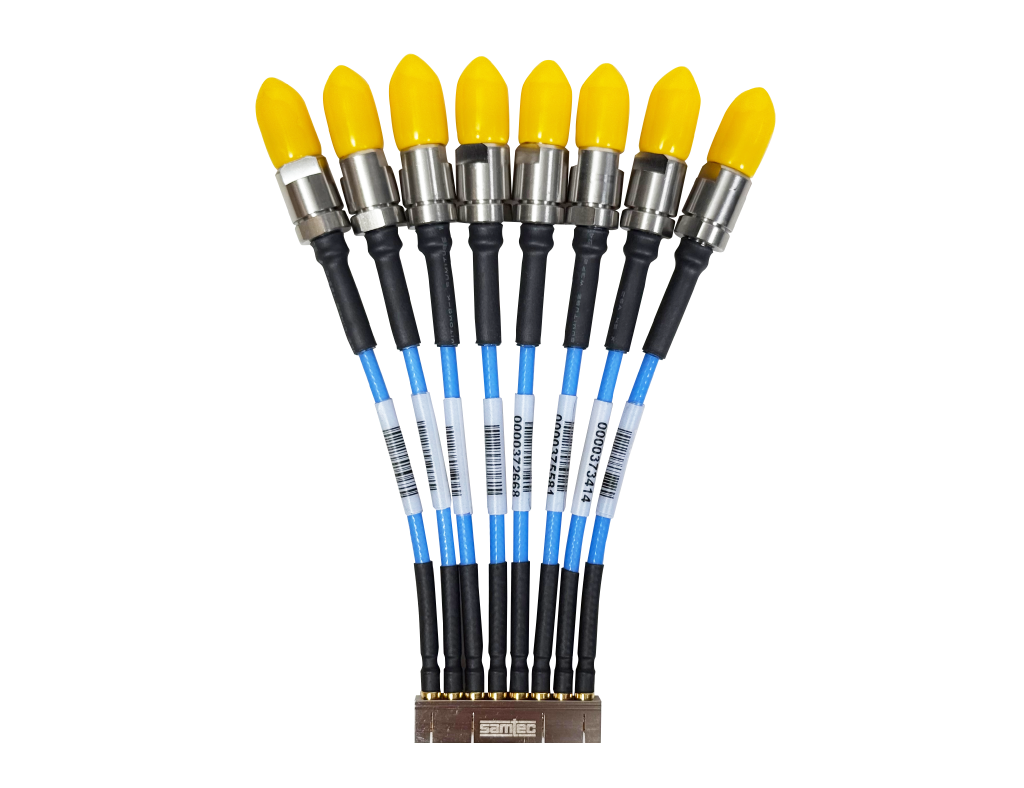

3. SMPM by 8 Cable Module*5 (4 for Tx, 1 for Rx)

• The lead time will be 8-10 weeks from order to shipment.

Application

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe OCP Slot by 16 form factor

Key Features

• PCIe OCP Slot by 16 Compliance Electical Test for Tx/Rx
• Durable SMPM by 8 Connectors and flexible Cable Assembly
• SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
• 2X Thru Calibration line is provided (connectors not included)

Specification

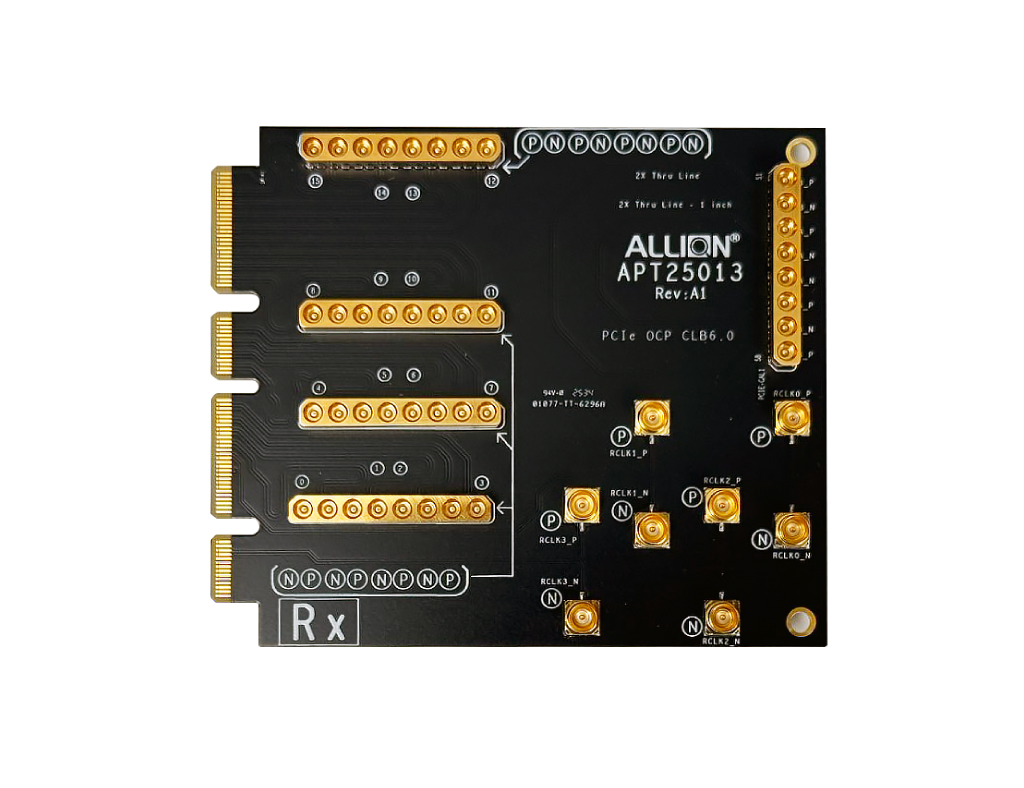

APT25013

• PCIe OCP by 16 Golden Finger
• Eight Ports SMPM by 8 Connector for Tx/Rx from Lane0~Lane15
• Eight SMP Connector for Reference Clock
• 2x Thru Calibration Line onboard
• Dimesion : 76mm x 89.64mm
