PCIe CEM x8 CLB6.0 Test Fixture For Lane 0/3/4/7/8/11/12/15

Product Summary

PCIe CEM x8 CLB6.0 Test Fixture

• The PCIe CEMx8 CLB6.0 Test Fixture Set contains the below items:

1. PCIe CEM Slot by 8 Test Fixture (Model Name: APT25017)
2. Allion CMTS Board (Model Name: APT23011)

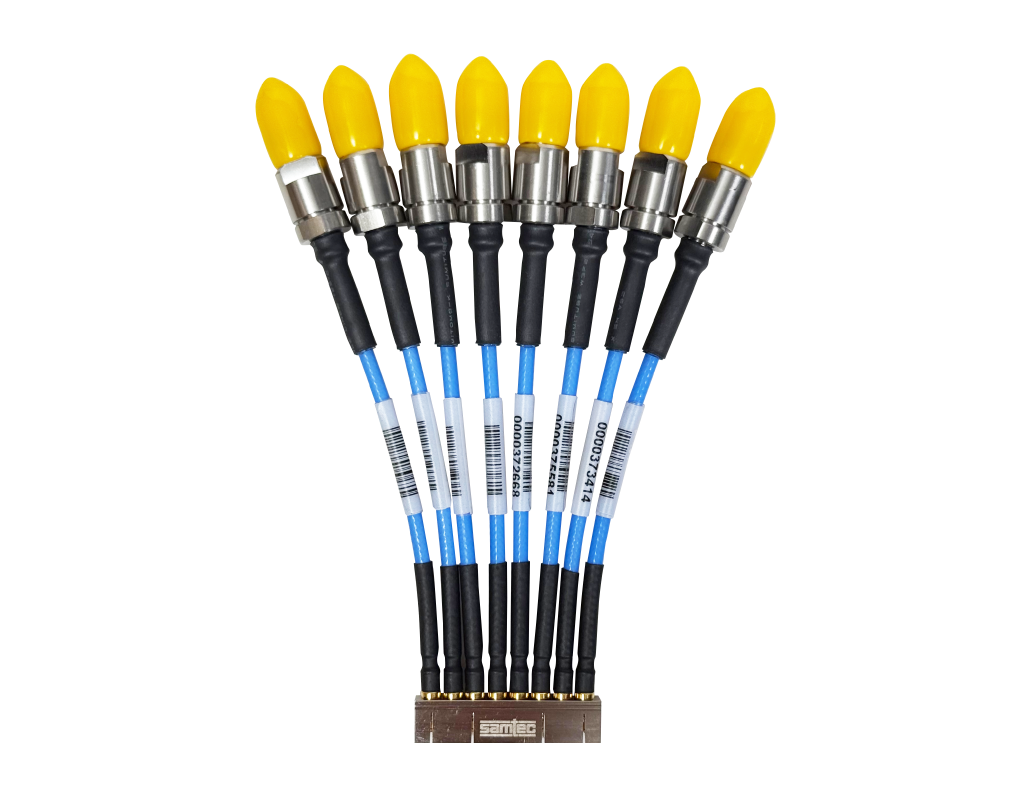

3. SMPM by 8 Cable Module*3 (2 for Tx, 1 for Rx)

• The lead time will be 8-10 weeks from order to shipment.

Application

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe CEM Slot by 16 form factor

Key Features

• PCIe CEM Slot by 8 Compliance Electical Test for Tx/Rx
• Durable SMPM by 8 Connectors and flexible Cable Assembly
• SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
• 2X Thru Calibration line is provided (connectors not included)

Specification

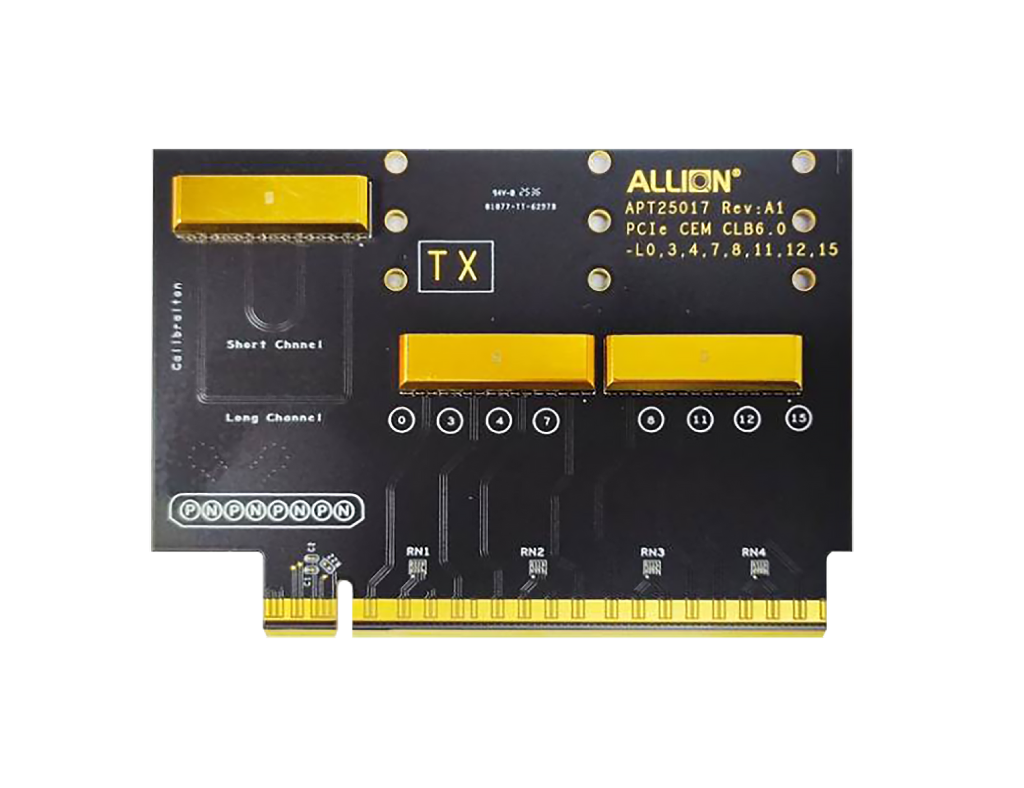

APT25017

• PCIe CEM by 8 Golden Finger
• Four Ports SMPM by 8 Connector for Tx/Rx from Lane 0/3/4/7/8/11/12/15
• Two SMP Connector for Reference Clock
• 2x Thru Calibration Line onboard
• Dimesion : 73.94mm x 104.38mm
