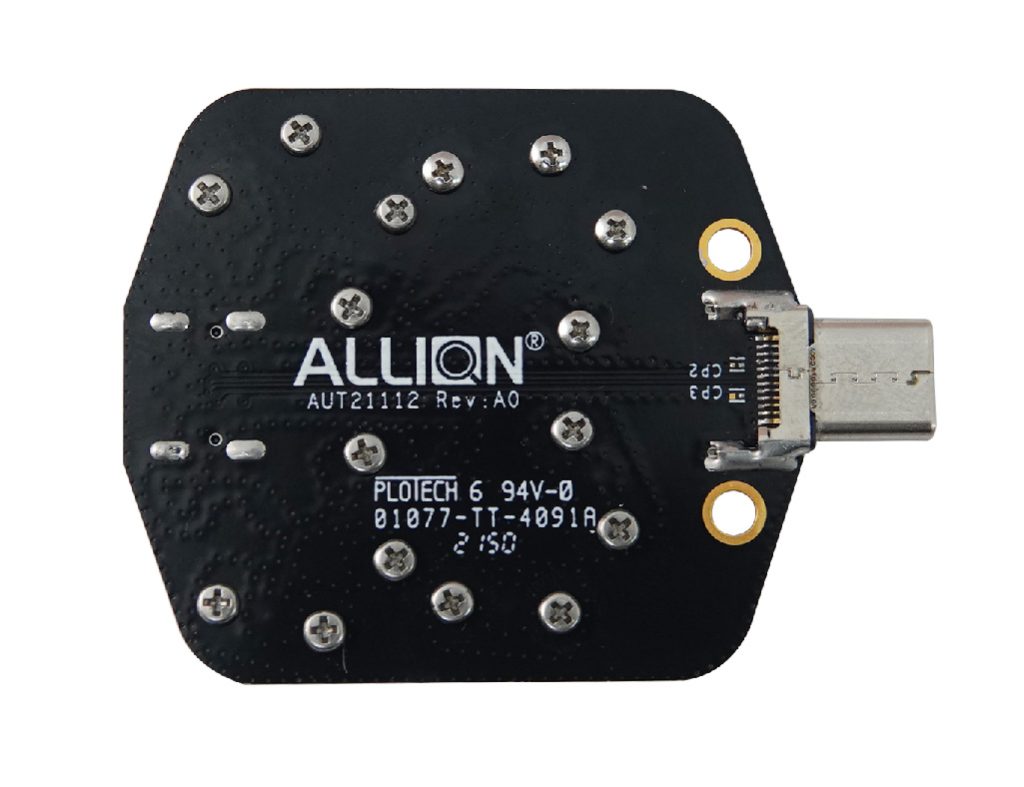

USB-C® Receptacle TX/RX

Product ID: AUT21112

Product Summary

AUT2112 is an USB4® electrical test fixture for USB4® devices with USB-C® plug and supports tests with the USB4® electrical compliance test specfication

Application

USB4® electrical compliance test specfication

Key Feature

  1. Use for USB4® Tx test and Rx test
  2. 2.92mm connectors up to 20GHz supported and easy to be replaced if broken

Specification

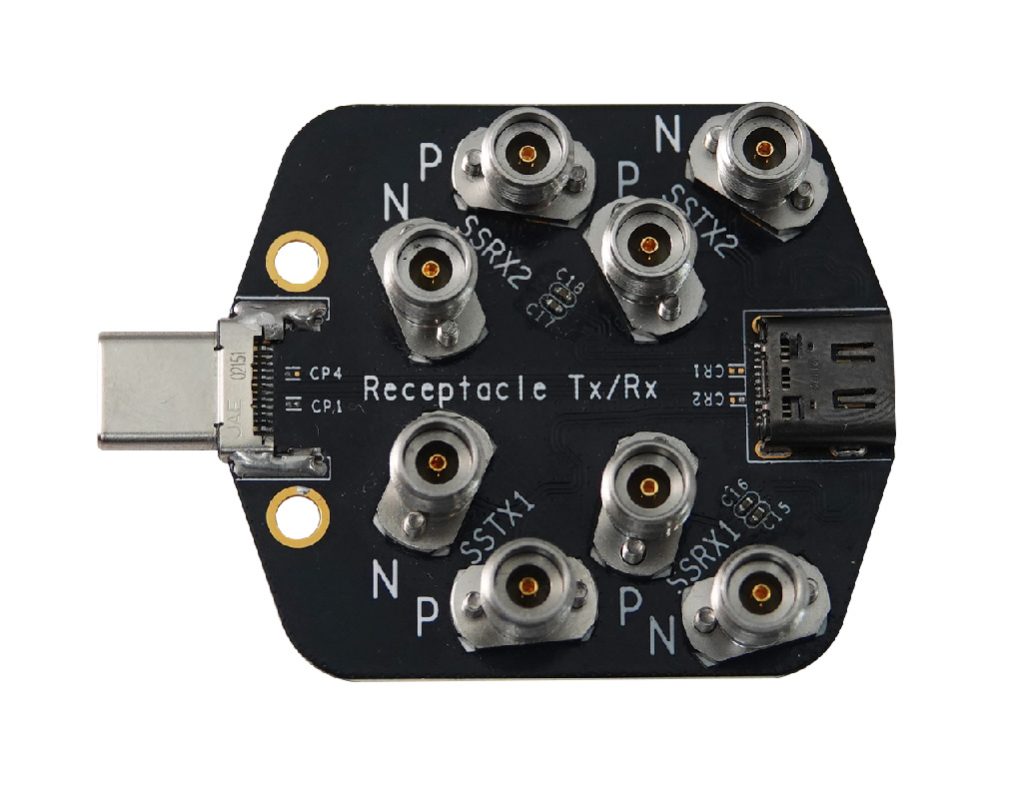

  1. One USB-C® receptacle
  2. One USB-C® plug to connect the micro controller
  3. Four 2.92mm connectors for USB-C® receptacle Tx
  4. Four 2.92mm connectors for USB-C® receptacle Rx
