USB 3.2 Legacy TF Sets – Device Short Channel

Product ID: AUT22109

Product Summary

AUT22109 is an USB 5Gbps legacy device short channel fixture and supprots tests with the USB 5Gbps legacy electrical compliance test specification.

Application

USB 5Gbps legacy electrical compliance tests

Key Feature

  1. Use for USB 5Gbps legacy UFP Tx test and Rx short channel test
  2. SMA connectors easy to be replaced if broken
  3. Supply power from USB-C® to DUT (Device Under Test)

Specification

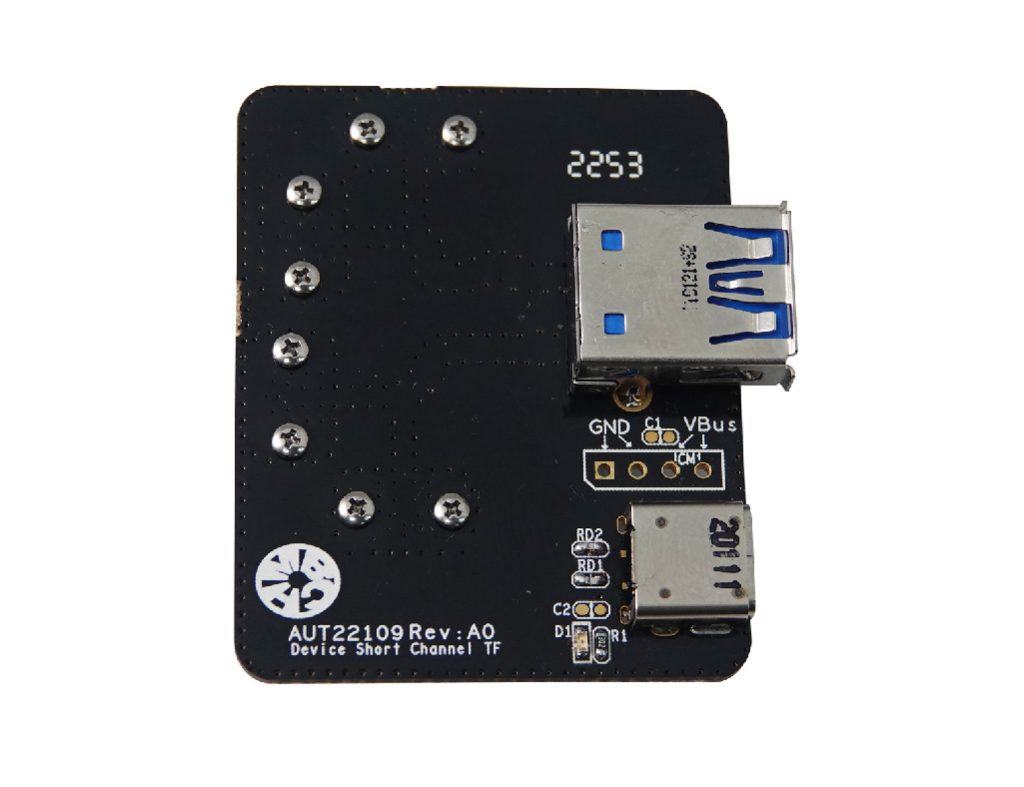

  1. One USB 5Gbps Standard A receptacle

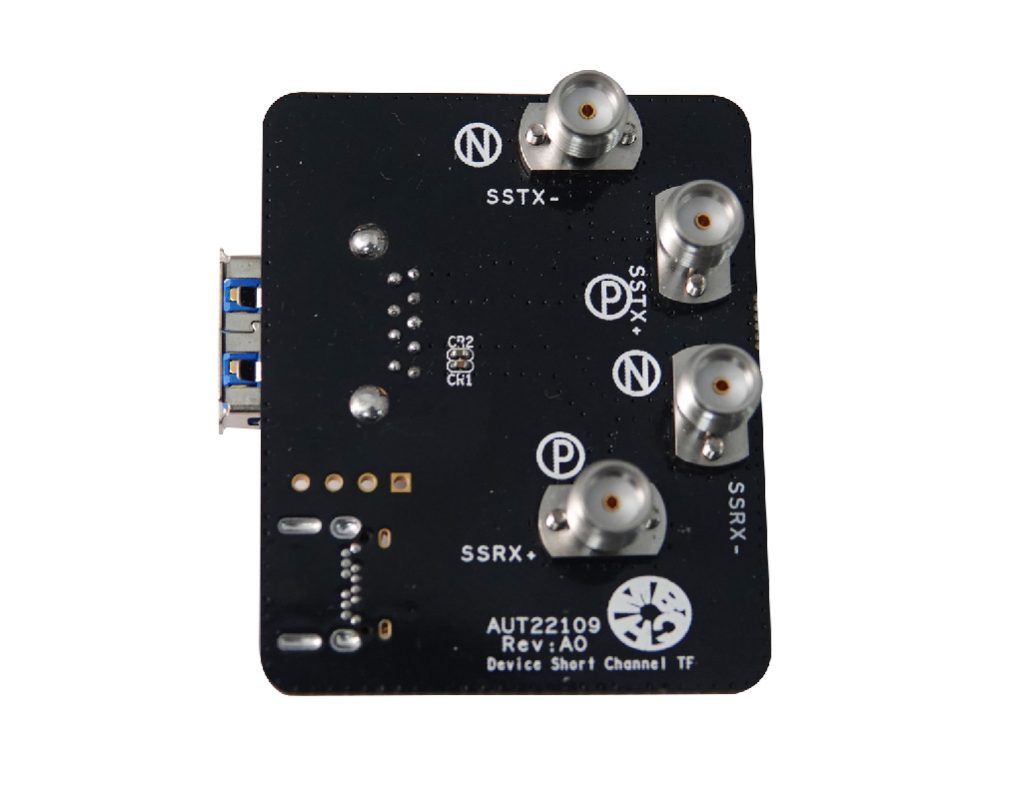

  2. Two SMA connectors for Standard A receptacle Tx
  3. Two SMA connectors for Standard A receptacle Rx
  4. One USB-C® receptacle for power charging
