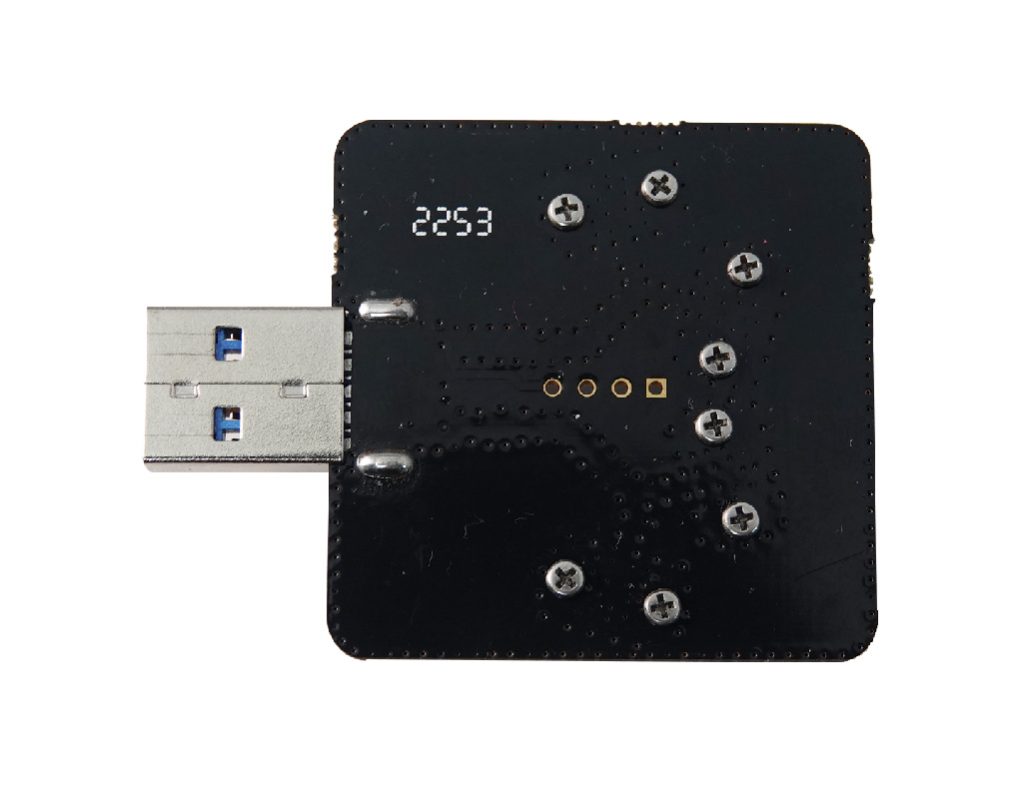

USB 3.2 Legacy TF Sets – Host Short Channel

Product ID: AUT22108

Product Summary

AUT22108 is an USB 5Gbps legacy host short channel fixutre and supprots tests with the USB 5Gbps legacy electrical compliance test specification

Application

USB 5Gbps legacy electrical compliance tests

Key Feature

  1. Use for USB 5Gbps legacy DFP Tx test and Rx short channel test
  2. SMA connectors easy to be replaced if broken

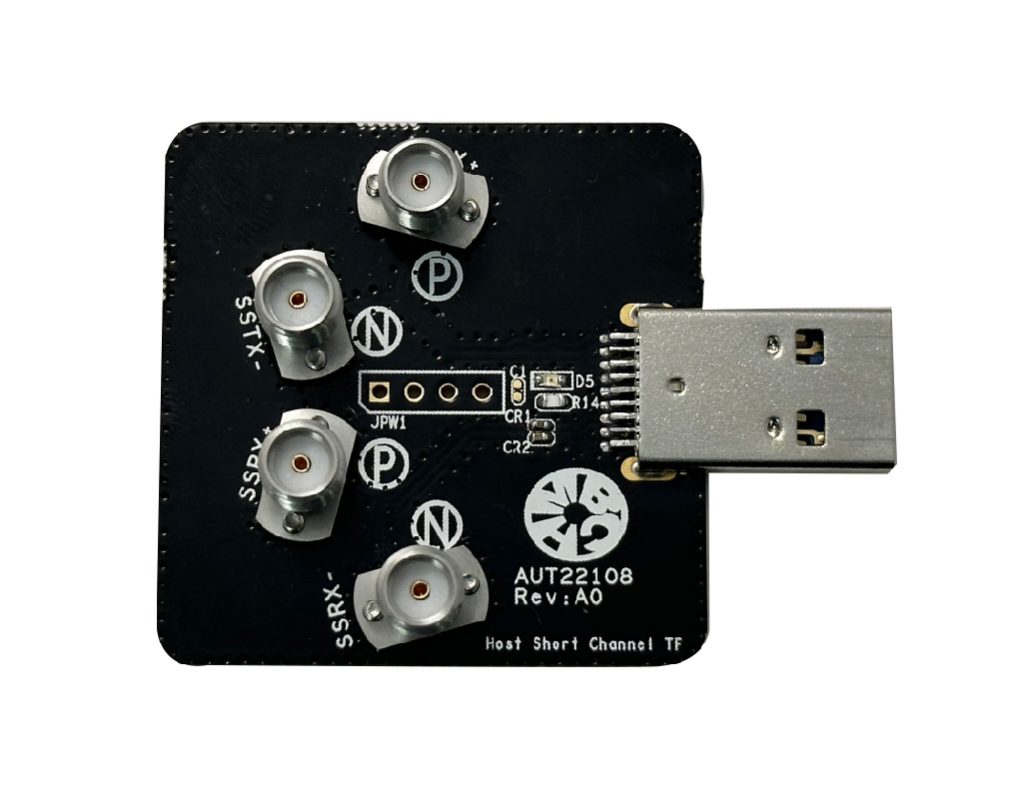

Specification

  1. One USB 5Gbps Standard A plug
  2. Two SMA connectors for Standard A plug Tx
  3. Two SMA connectors for Standard A plug Rx
