USB-C® – USB 2.0 Plug HS SQ Test Fixture

Product ID: AUT17094

Product Summary

This product is designed for USB-C USB2.0 Receptacle Host Electrical Test.

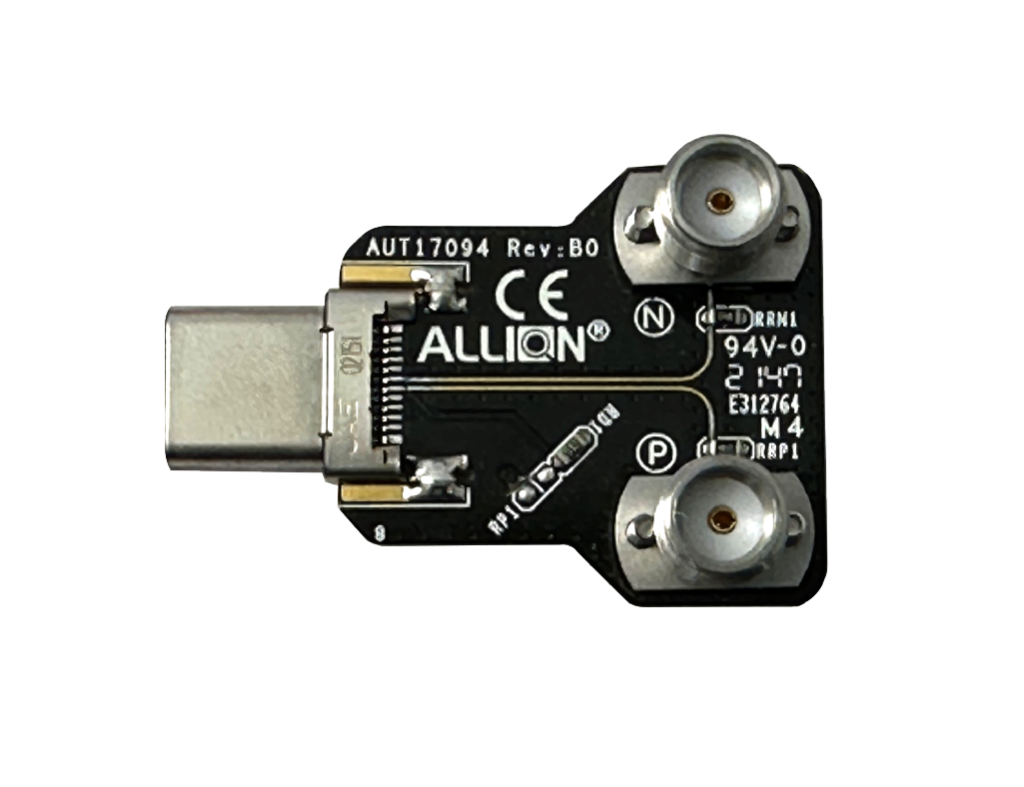

17094

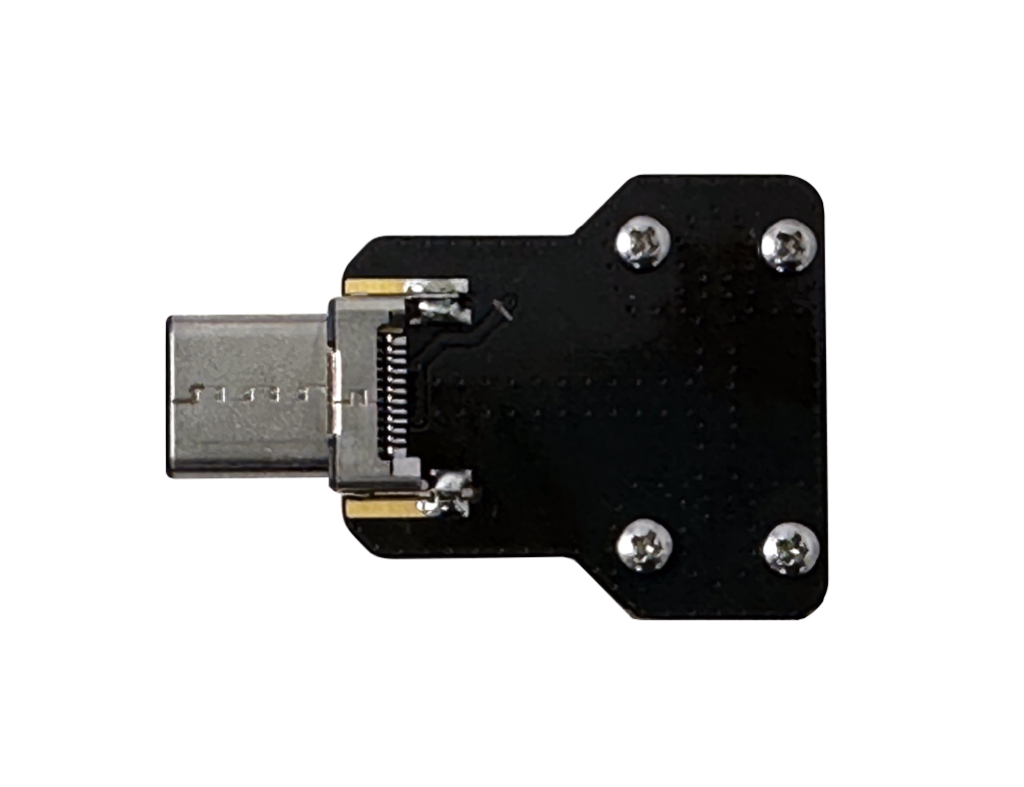

17094-2

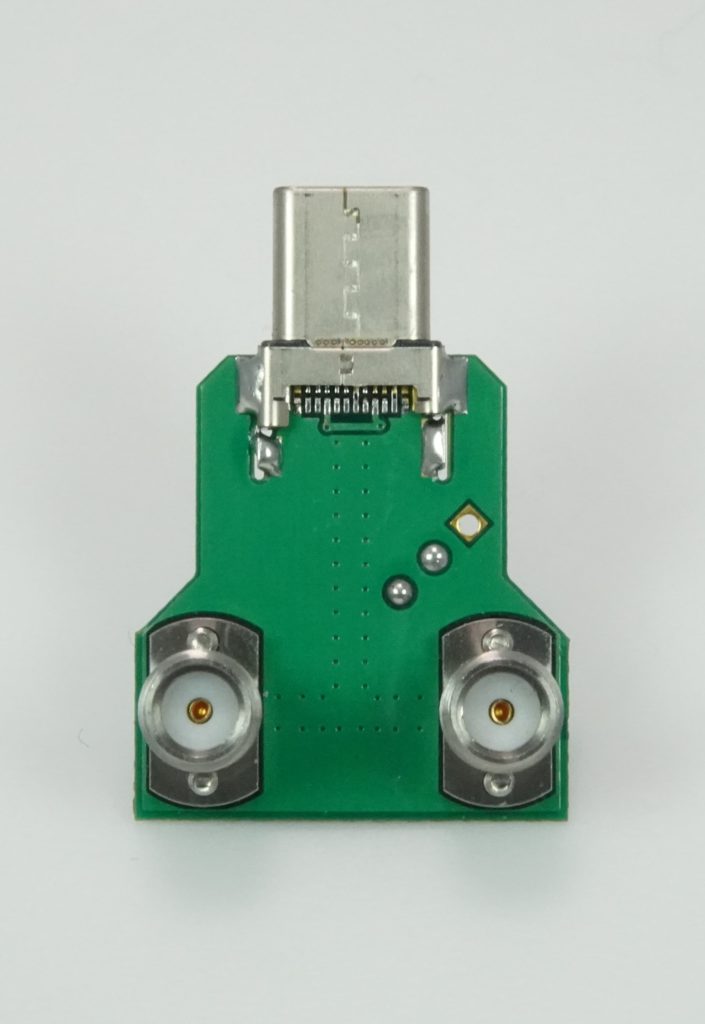

17094-3
17094-4

Application

High-Speed Signal Quality Test (EL_2, EL_3, EL_6; EL_7)

Key Feature

Convert USB 2.0 Signal from Type-C Plug to SMA Connector

Specification

  • USB-C Full Future Plug Connector.
  • Two SMA Connectors
  • Fix Short Pin for CC1 Pull-Low(Rd)
  • Dimension : 22.5 mm x 24.5 mm

Note

The fixture has been approved by USB-IF.

Inquiry BUY NOW
