Conductive Drum

Product ID: Conductive-Drum

Product Summary

OPEN Alliance TC-9, Car Ethernet, Ethernet, IEEE802.3bp, IEEE802.3bw

Application

  1.  OPEN Alliance TC-9 Compliance Electrical Test
  2. Applicable for UTP (Unshielded Twisted Pair) Car-Ethernet Raw Cable and Cable Assembly (Maximum length: 15m)

Key Feature

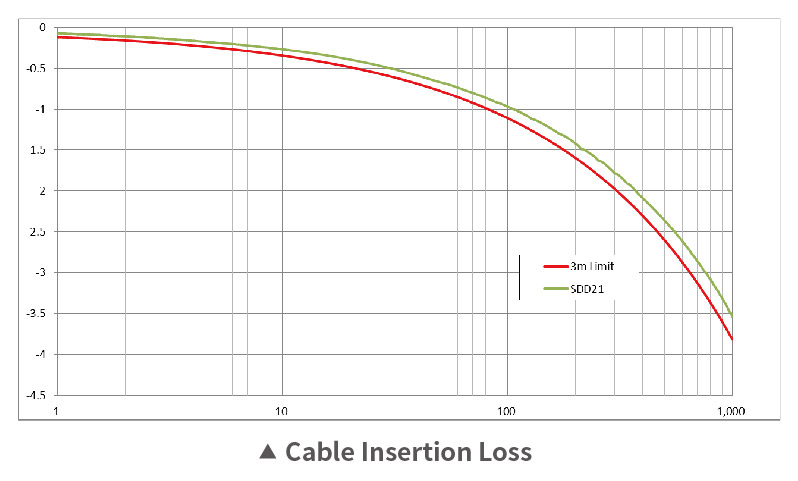

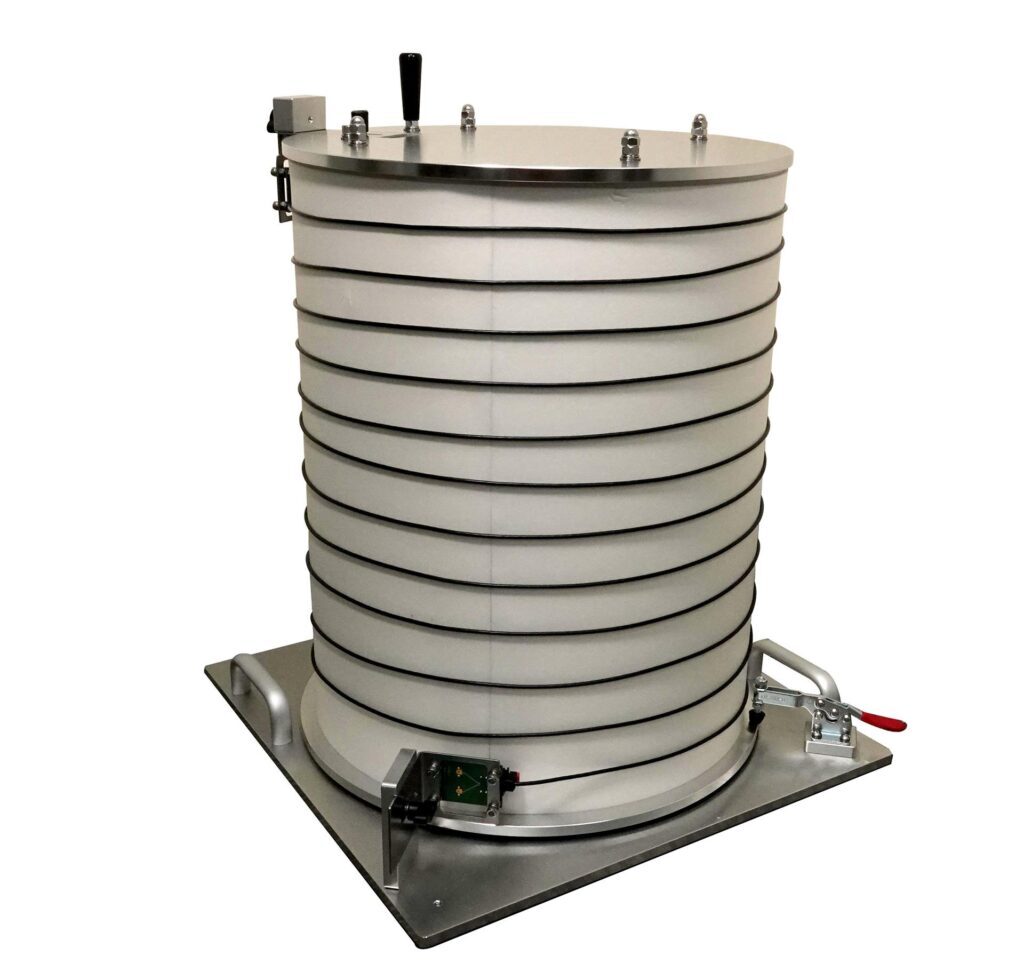

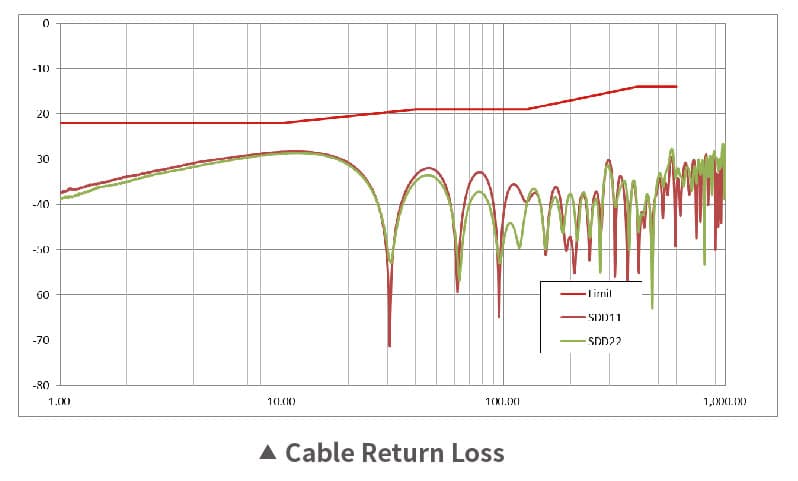

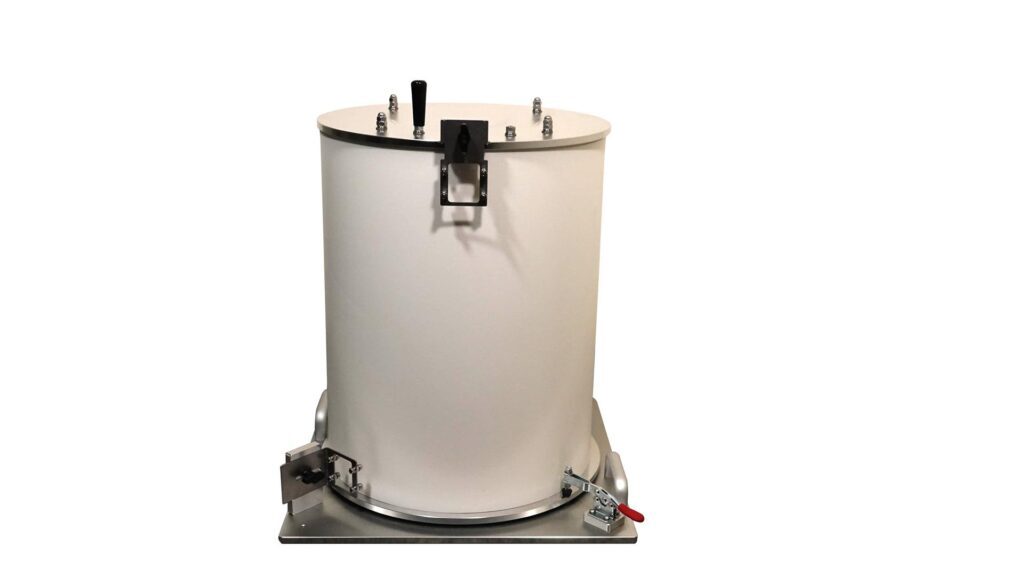

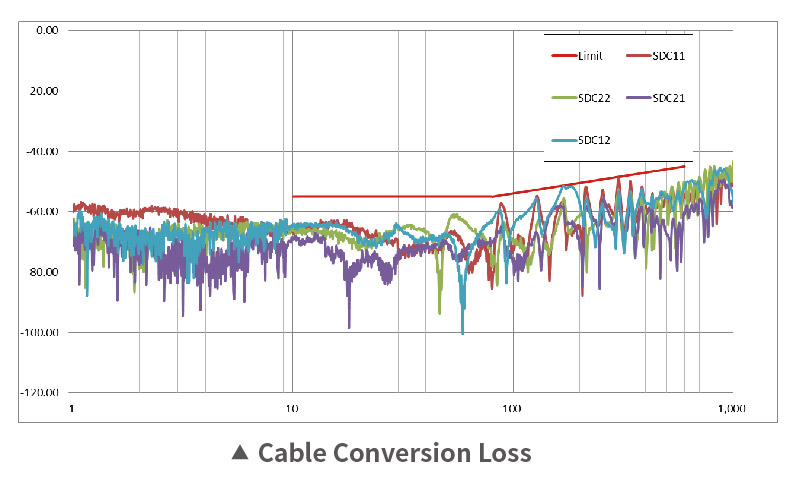

  • A perfect kit for 15 m cable measurement (Designed according to the OPEN Alliance TC-9)
  • PCB Test Fixture comes in the following features:

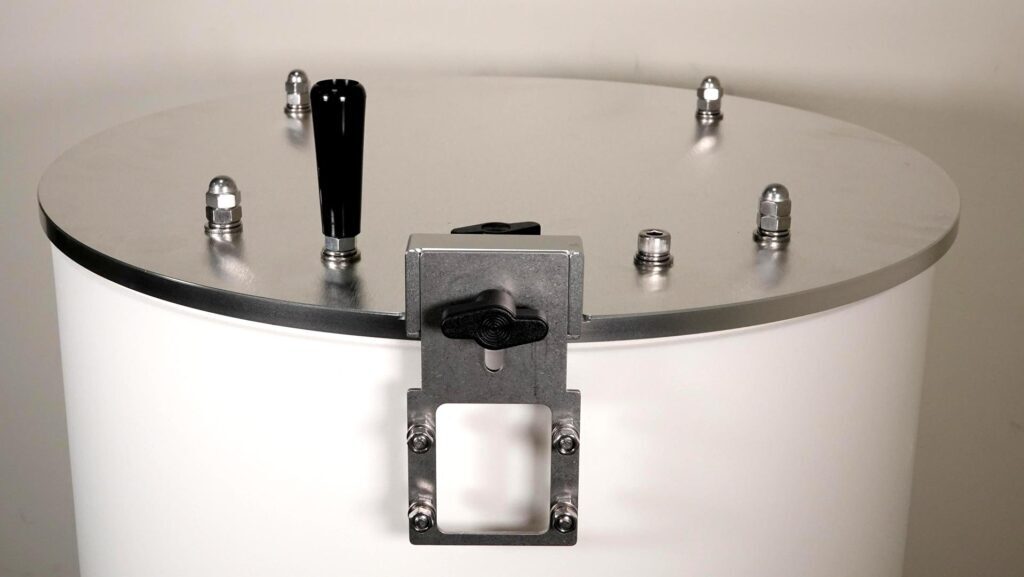

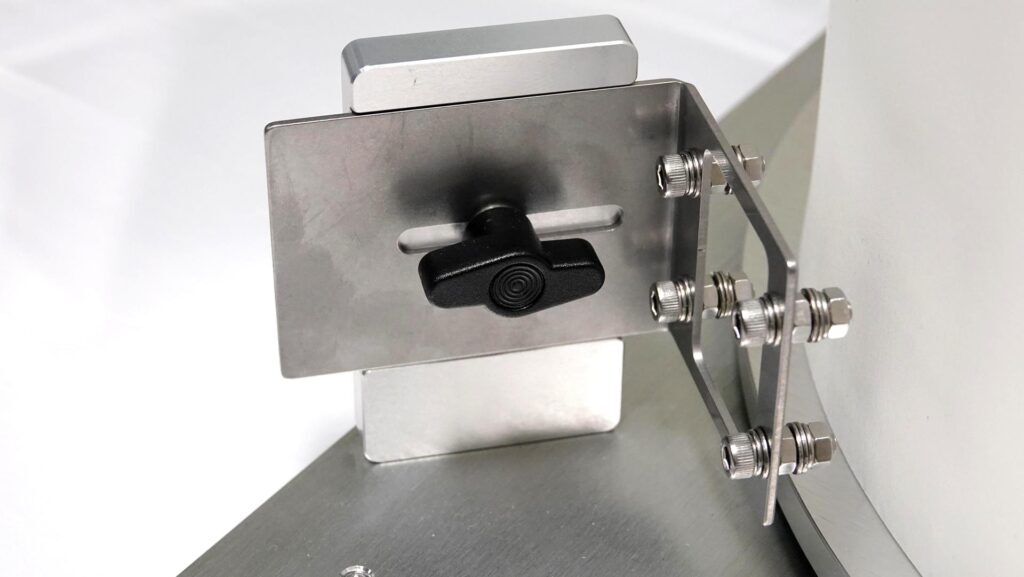

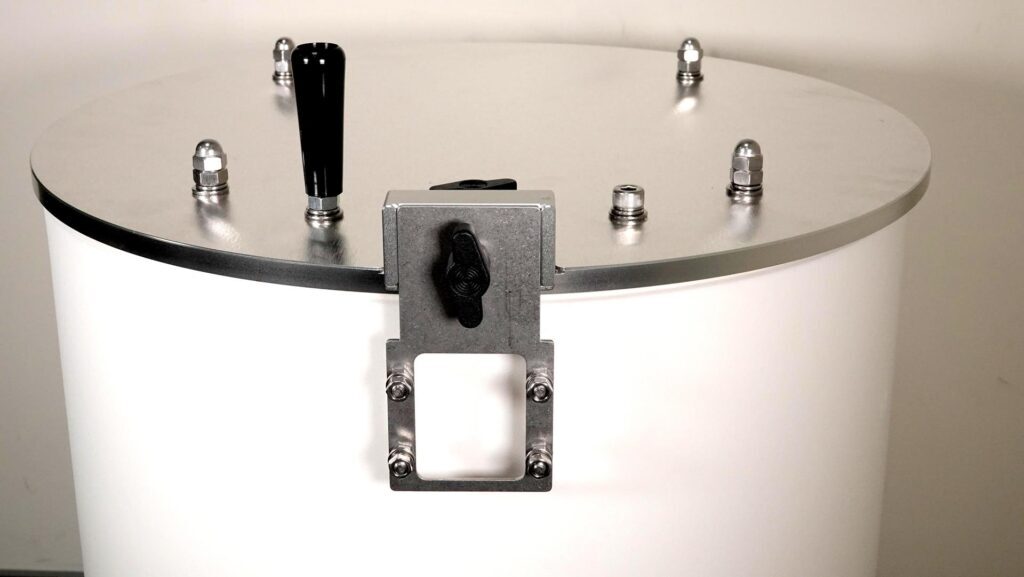

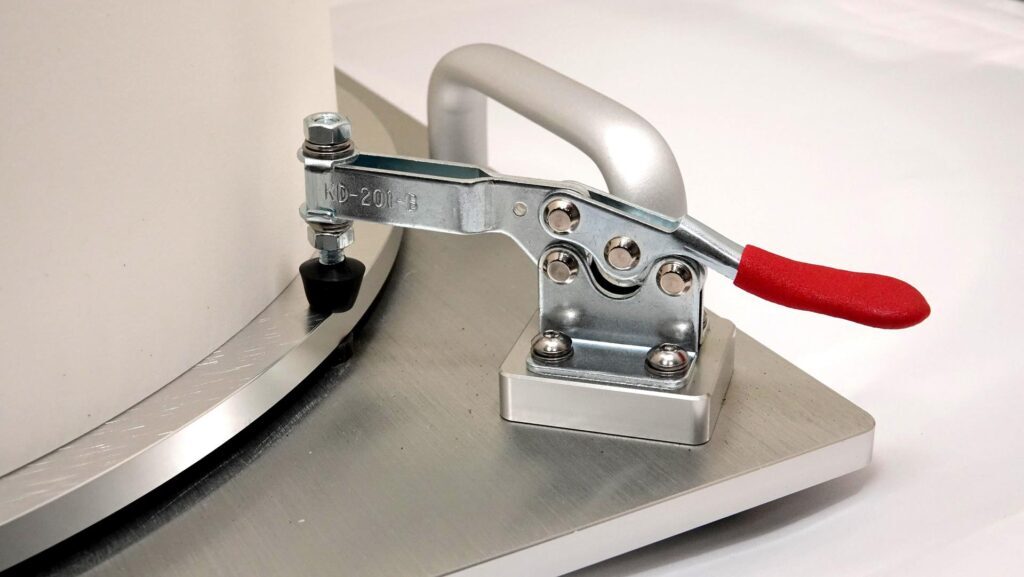

    (1) Easy setup of PCB fixtures with adjustable side racks
    (2) Easy wrap of cables with a roller

Specification

  • Dimension: 50cm x 50cm x 65cm
  • Weight: 23.5KG
  • Material: Insulator; permitiivity Er < 1.4 (Meet the requiremnts of OPEN Alliance TC-2 and TC-9)
