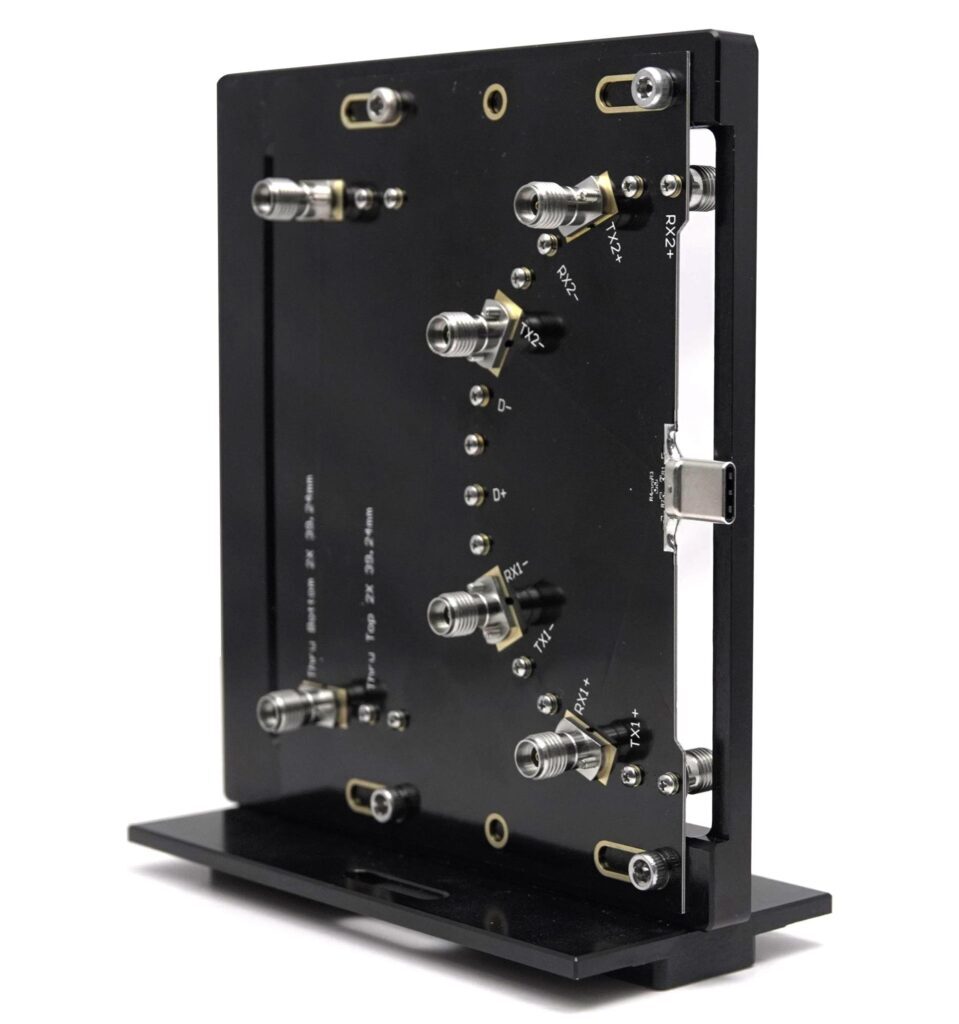

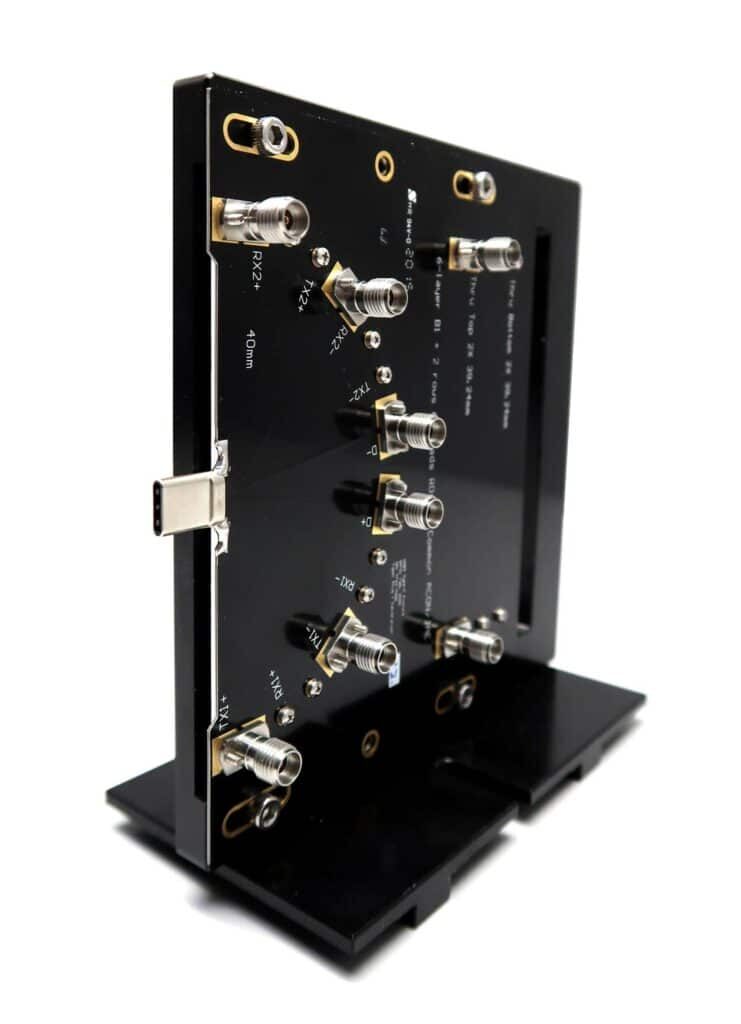

USB4 Golden Plug
This test fixture is officially and exclusively designated by the USB-IF
Product ID: USB4-Golden-Plug
Product Summary
USB-IF Certified Fixture for USB4 Receptacle
Application
USB4 Receptacle
Key Feature
- PCB fixtures with a holder makes it easy to dissemble from high-frequency cables (2.92mm K band) to increase test efficiency.

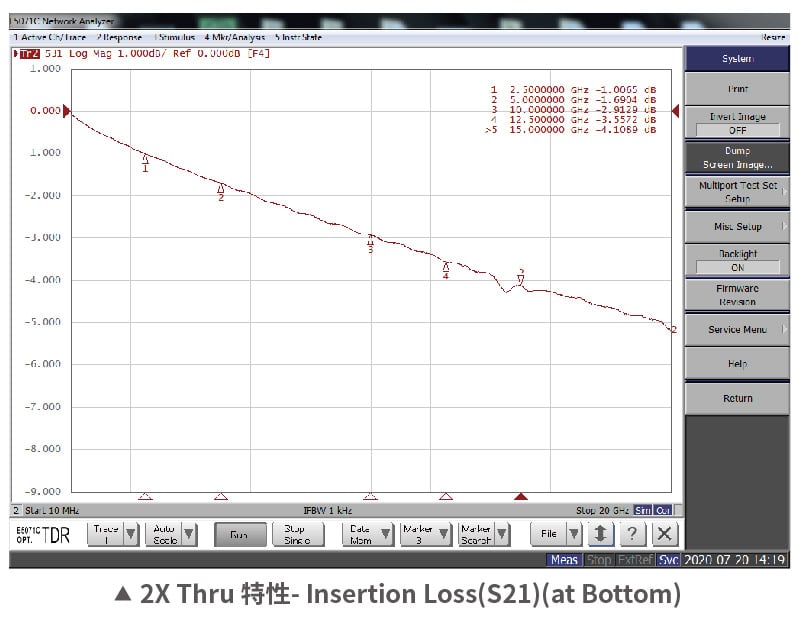

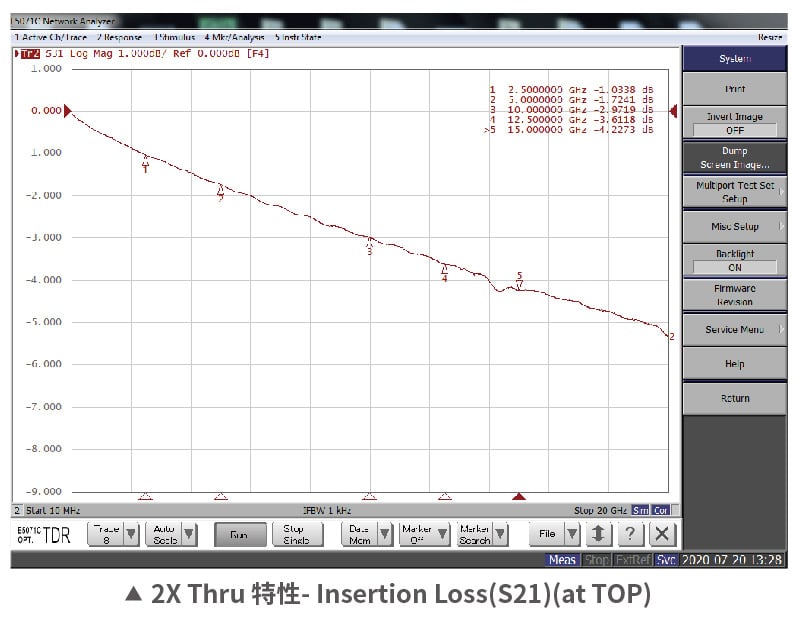

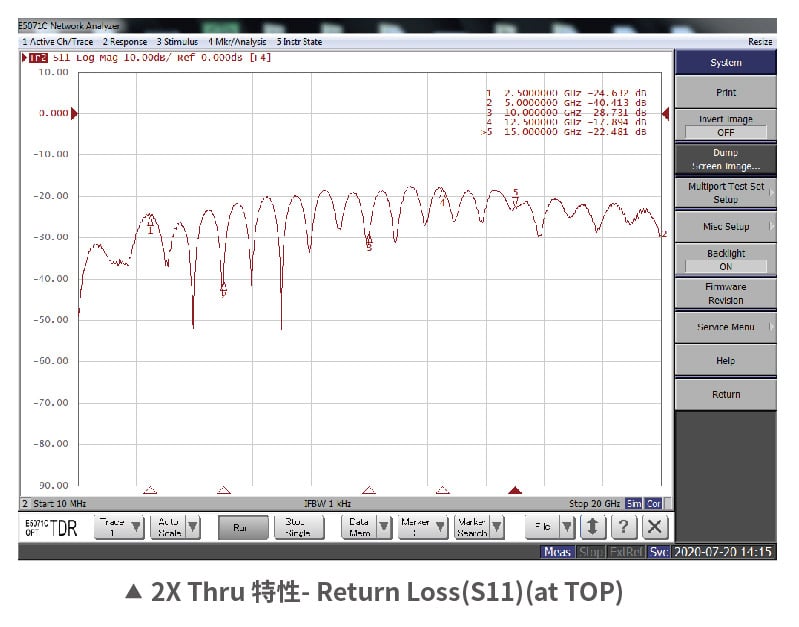

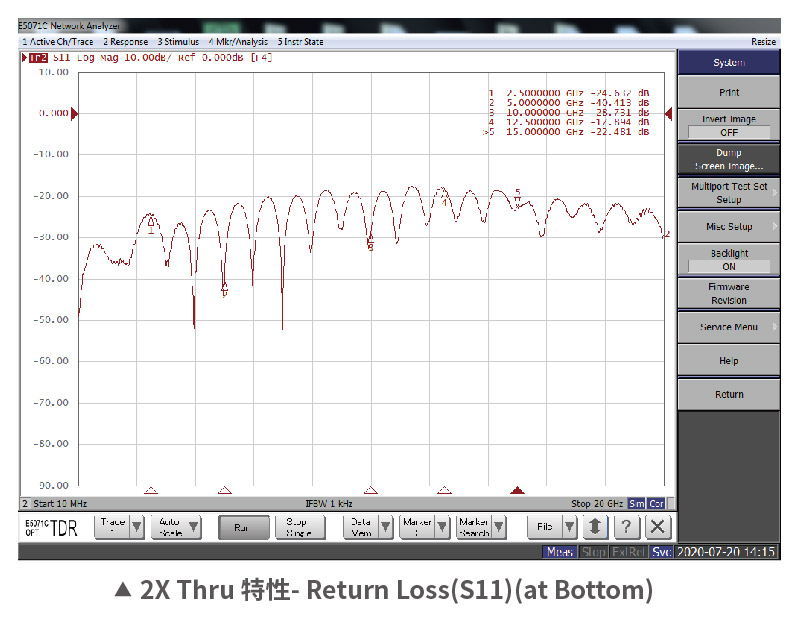

- Adoption of 2X Thru Calibration Traces on both sides of the fixtures to ensure accurate measurement

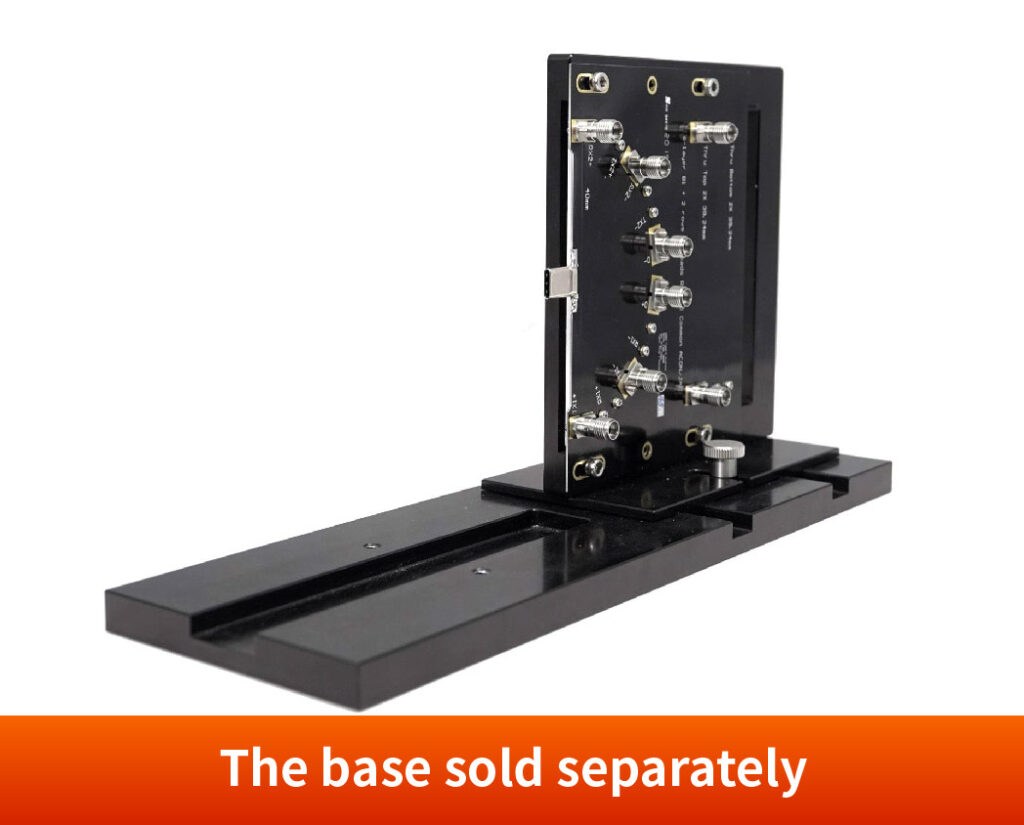

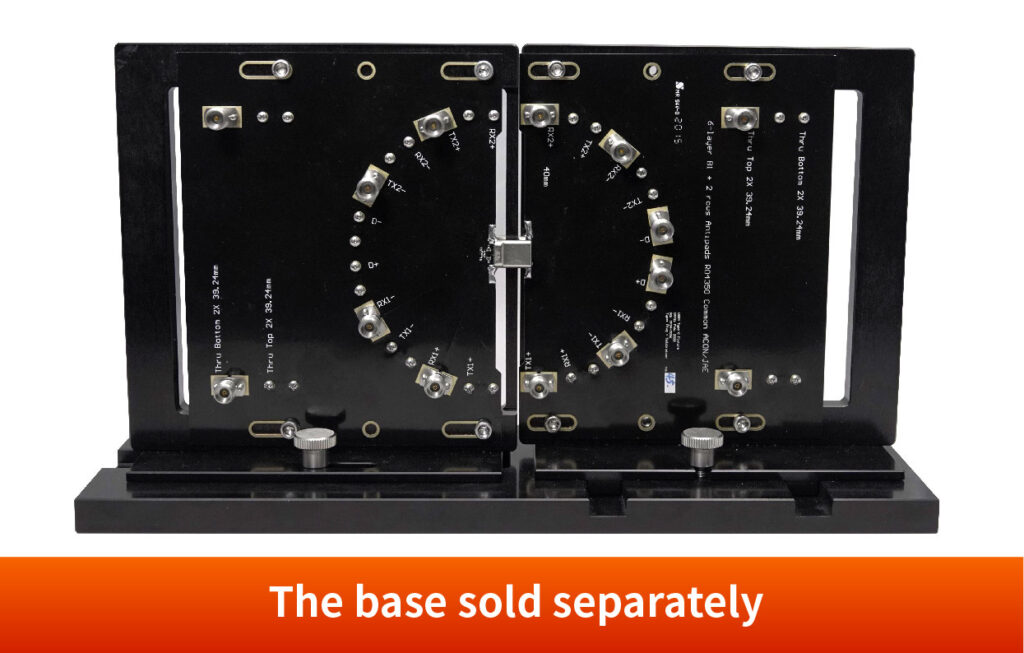

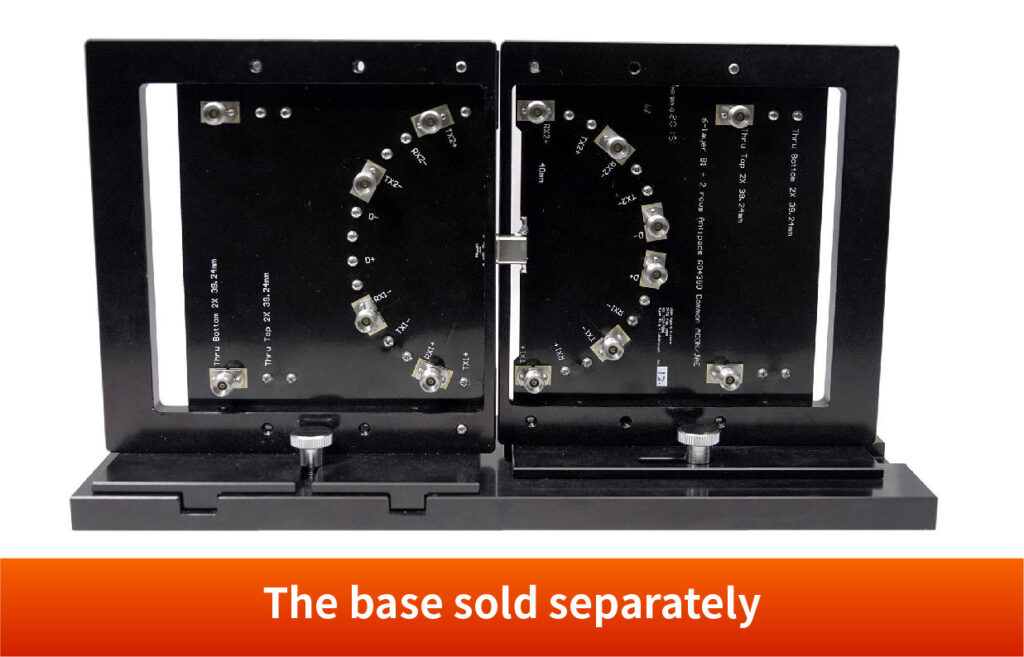

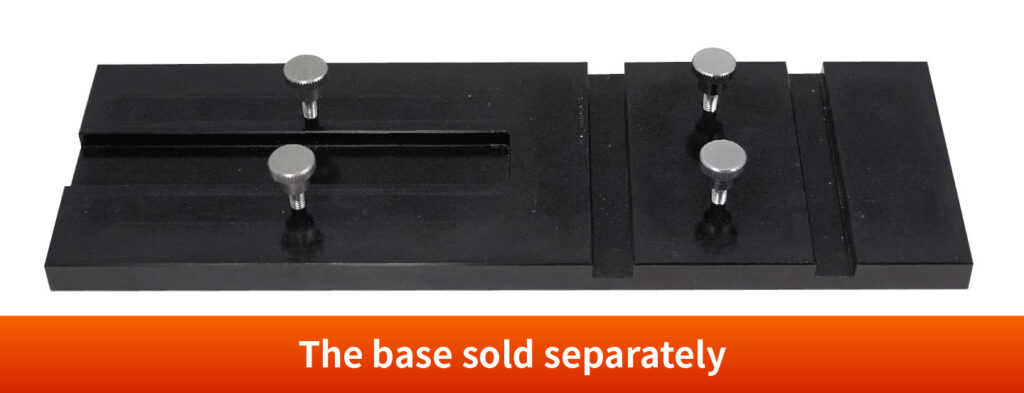

- The price of test fixtures is not include base( The base sold separately)
Specification
- Base: 24mm*8mm*12mm (LxWxH)
- Frame: 115mm*5mm*1275mm (LxWxH)
