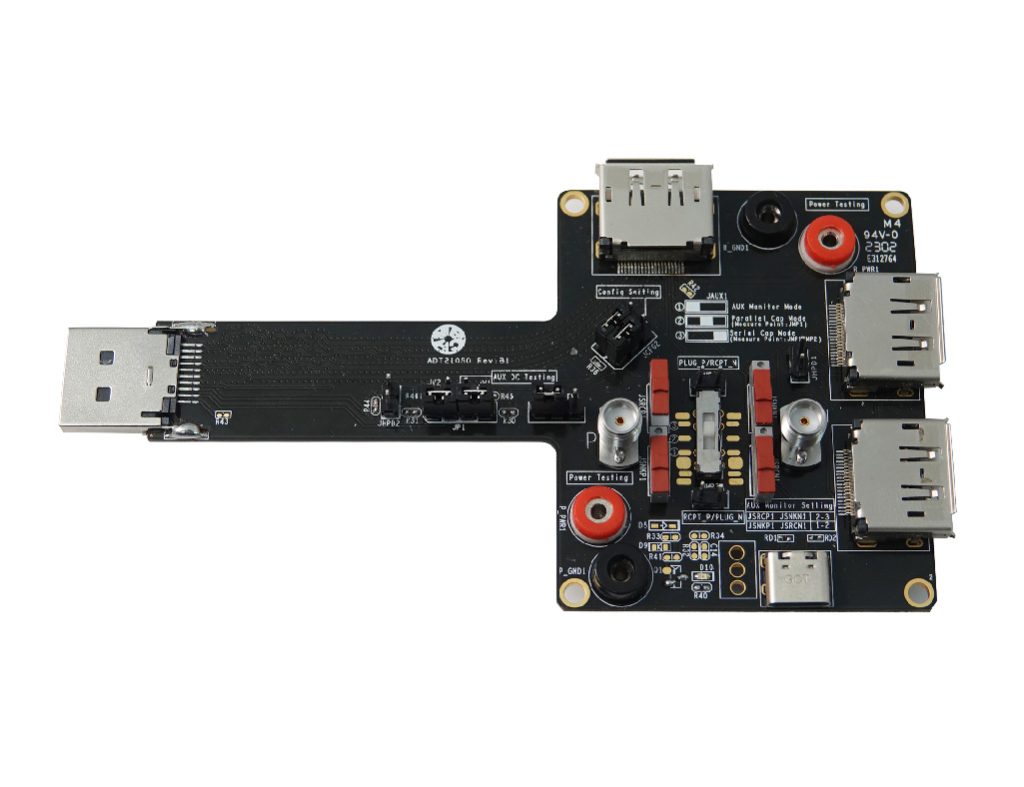

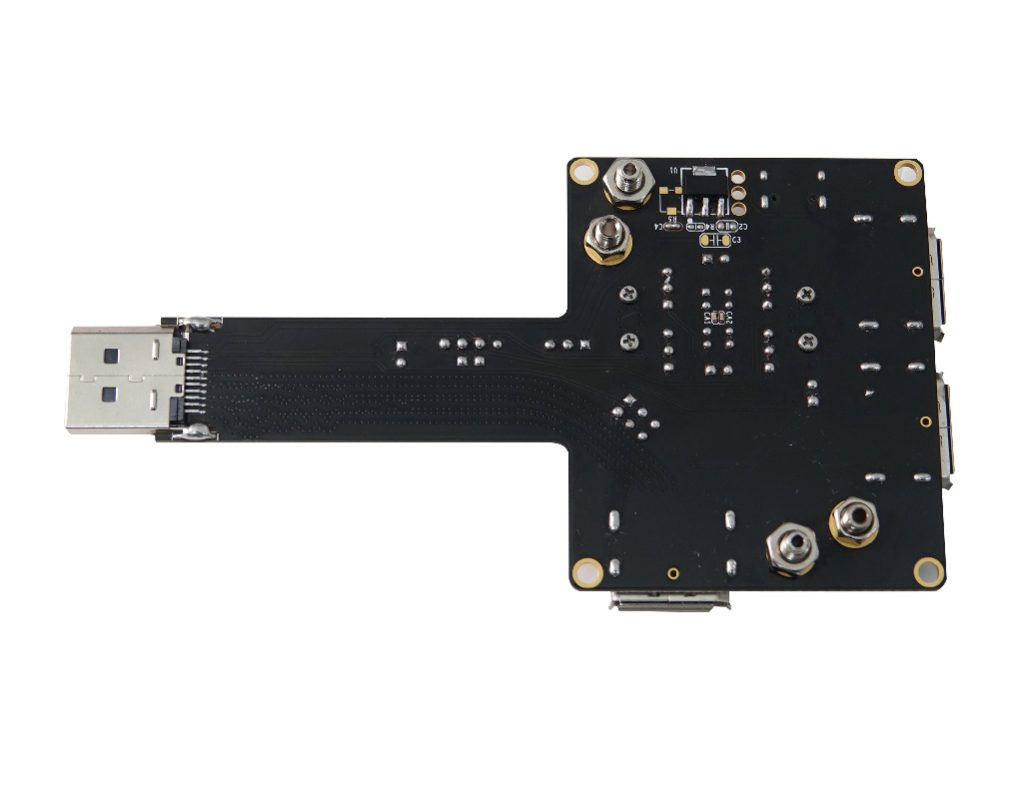

DP1.4 AUX Channel

Product ID: ADT21050

Product Summary

The test Fixture supports Standard plug DP connector for electrical compliance test and eye diagram test.

Application

VESA DisplayPort v1.4a PHY Layer Common Tests

  • AUX_CH (Manchester-II) EYE Test
  • AUX_CH_n/p Termination DC Test
  • AUX_CH Slew Rate Test
  • DP_PWR DC Level Test / DP_PWR Current Test

Key Feature

  1. Measure AD and DC voltage
  2. Measure DP_PWR voltage
  3. No twisted wire, no signal loss

Specification

  1. DisplayPort Standard Plug Connector
  2. Dimension 65.65mm x 125.99mm
