Allion Labs > Test Fixtures > HDMI 1.4 Type-A HEAC Rec

HDMI 1.4 Type-A HEAC Rec

Product ID: AHT20136-HEAC-AR

Product Summary

AHT20136 is applied to the HEAC impedance, skew tests, etc,. of HDMI v1.4b CTS cable.

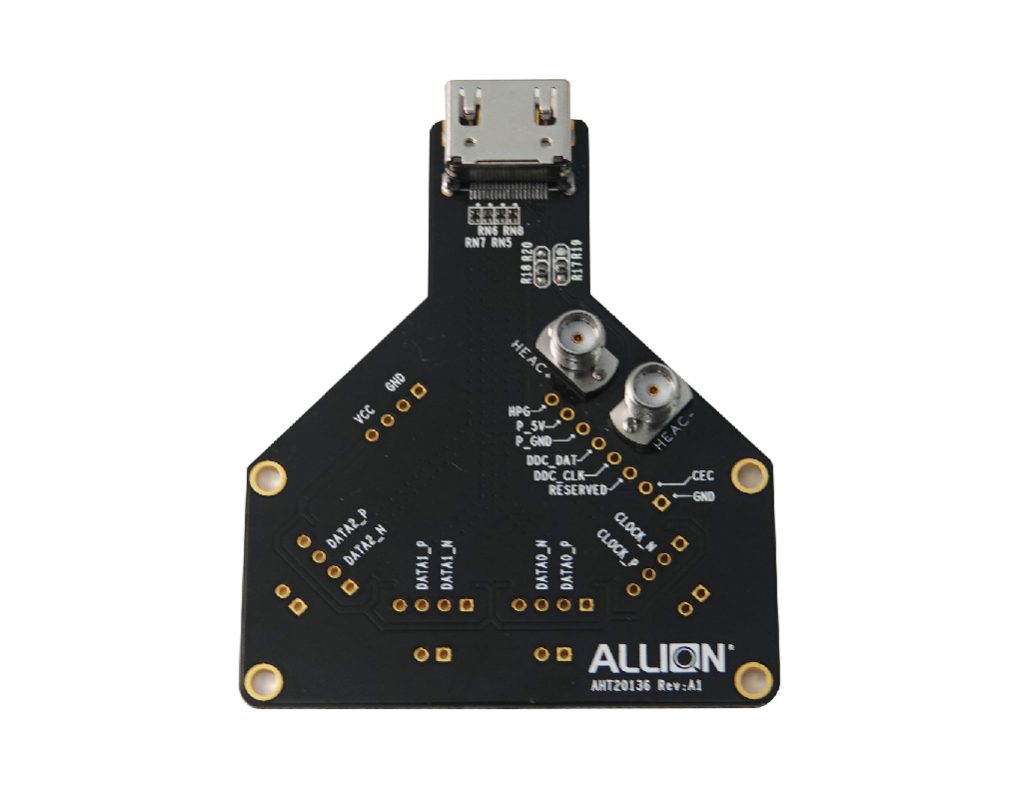

AHT20136-HEAC-AR-02
AHT20136-HEAC-AR-03

Application

HDMI 1.4b Cable HEAC Compliance Electrical Testing

Key Feature

  1. No twisted wire, no signal loss
  2. Compatible with HEAC test for Cable.

Specification

  1. HDMI Type A Receptacle Connector
  2. Two SMA Connector for HEAC
  3. Dimension 61.25mm x 75.20mm
