Allion Labs > Test Fixtures > HDMI 1.4 Type-A Rec

HDMI 1.4 Type-A Rec

Product ID: AHT20136-R-DS

Product Summary

AHT20136 is applied to the voltage, current, HEAC impedance, capacity tests, etc,. of HDMI v1.4b CTS cable.

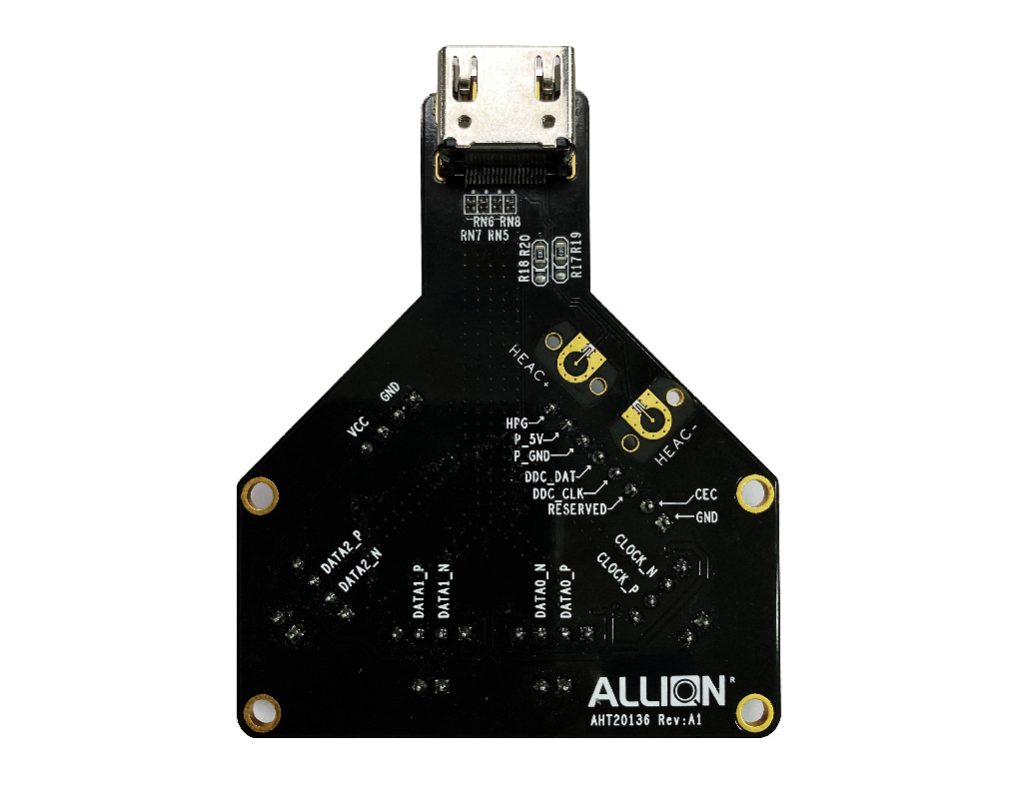

AHT20136-R-DS-02

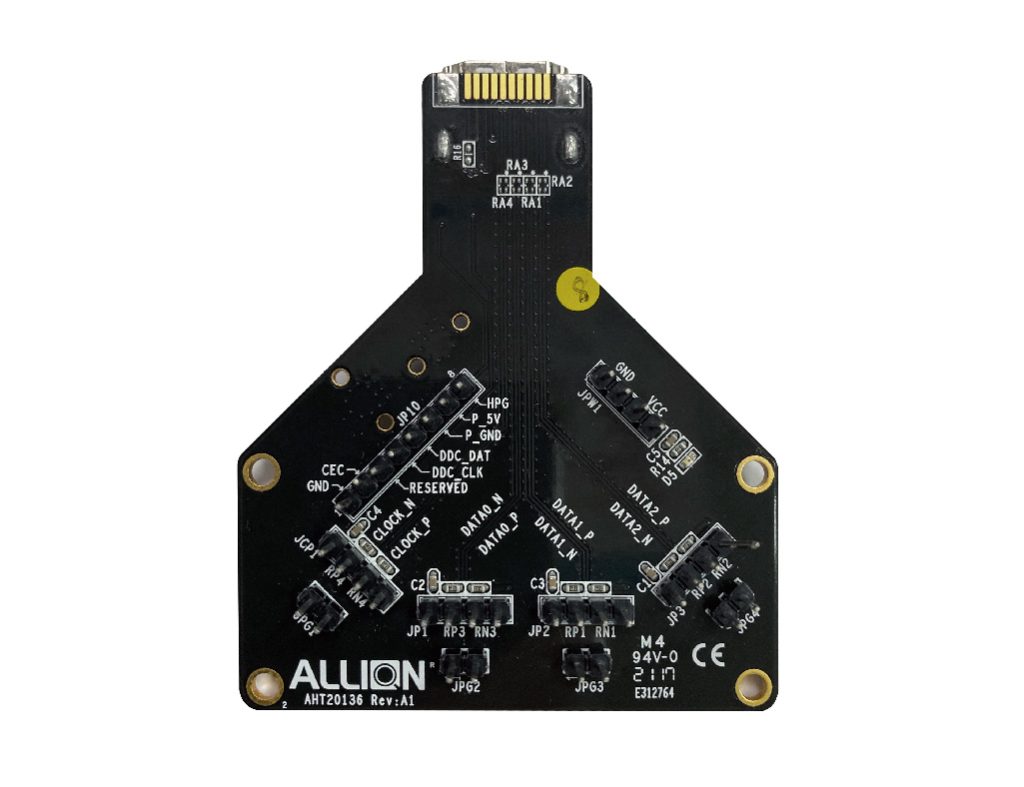

AHT20136-R-DS-03

Application

  1. HDMI 1.4b Cable Compliance Electrical Testing
  2. HDMI Directly Attach Device Electrical Compliance Testing

Key Feature

  1. No twisted wire, no signal loss
  2. Compatible with Electrical test for Cable & Directly Attach device

Specification

  1. HDMI Type A Receptacle Connector
  2. Dimension 61.25mm x 74.65mm
Inquiry

檔案下載

Icon
AUT-17037 1.85 MB
Download
Icon
AUT-17037 1.85 MB
Download
