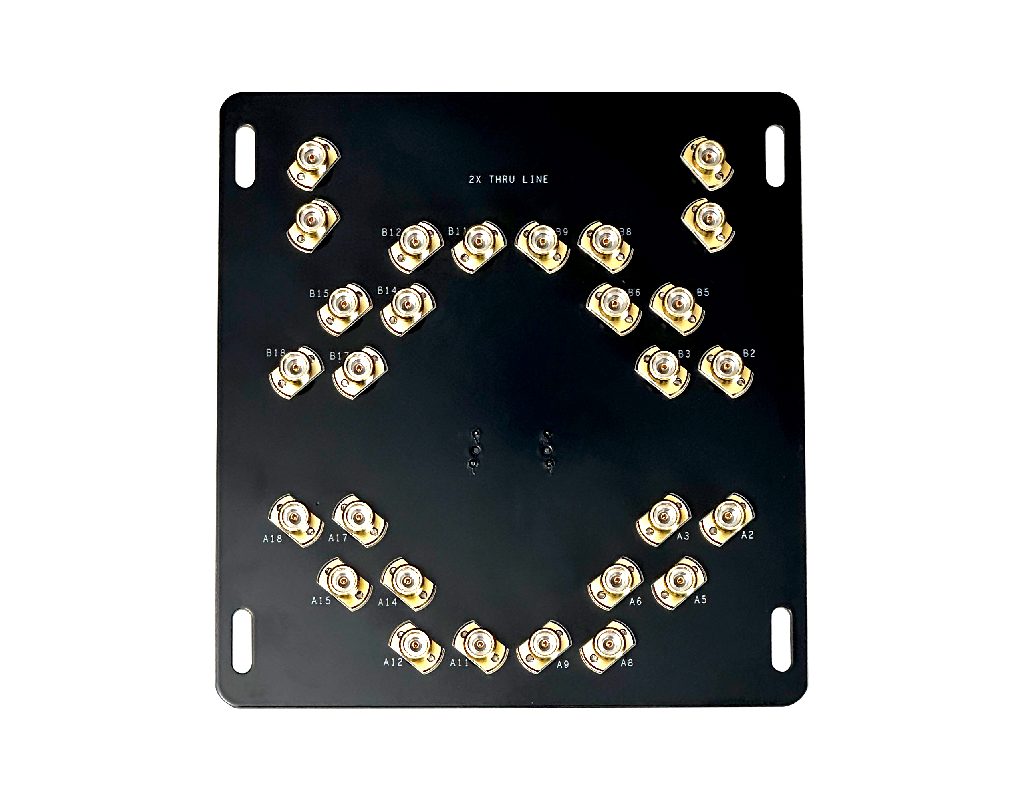

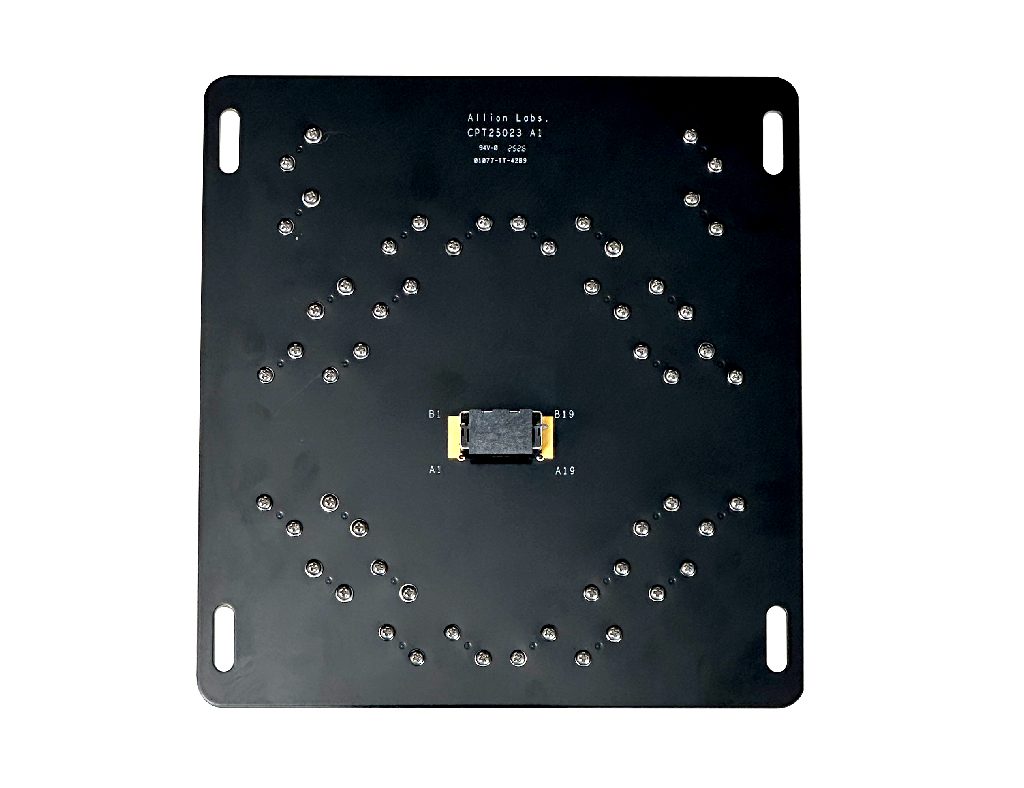

PCIe MCIO4i Test Fixture
Product ID: APT25023
Product Summary
PCIe MCIO4i Test Fixture
- PCIe MCIO4i Test Fixture (Model Name: APT25023)
- MCIO 38 pin connector
- 2.92 RF connector
The lead time will be 4-6 weeks from order to shipment.
Application
- Designed for MCIO4i cable test applications
Key Feature
- MCIO4i 38 pin female connector
- 2.92 RF connector support up to 40GHz bandwidth 4.2X Thru Calibration onboard.
Specification
APT25023
- PCIe MCIO4i 38pin female connector
- 2.92 RF connector
- 12 pairs of differential signals
- 2X Thru Calibration
- Dimesion : 110.2mm x 110.9mm
