The HDMI Forum will officially launch the Ultra96 HDMI® Cable（HDMI Category 4 Cable）certification program.
Allion Labs is among the first HDMI Forum Authorized Testing Centers (ATCs) approved for the program, and now offers Ultra96 HDMI® Cable testing and certification services.

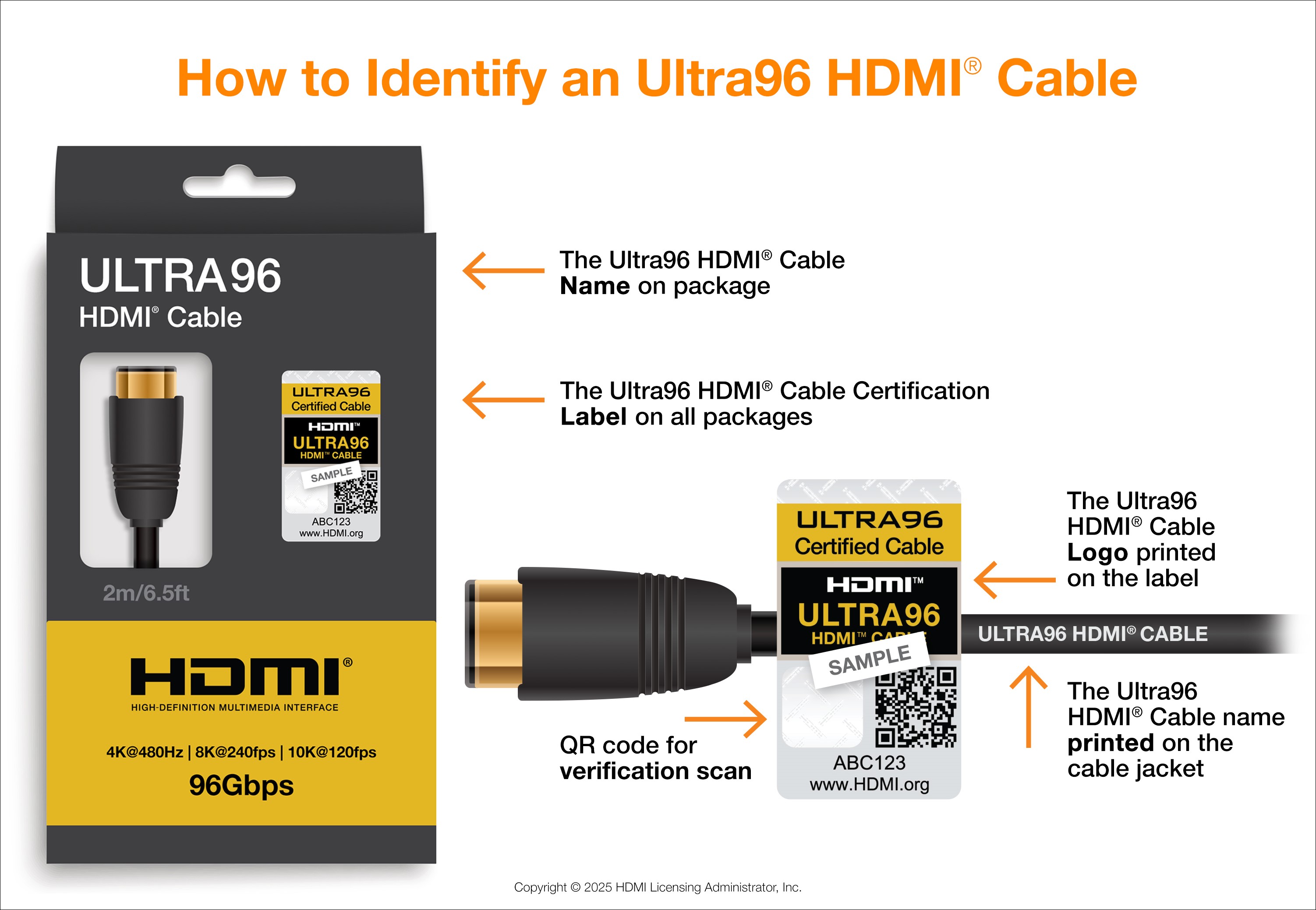

The HDMI Forum has officially named the HDMI Category 4 Cable the Ultra96 HDMI® Cable, making its 96Gbps bandwidth capability easier for users to recognize.
In addition to supporting up to 96Gbps of audio/video transmission bandwidth, the Ultra96 HDMI® Cable also supports eARC (Enhanced Audio Return Channel) audio transmission.
For now, the HDMI Forum is accepting Category 4 Cable certification applications only for Wire Cables; AOCs (Active Optical Cables) are not yet eligible for Category 4 Cable certification.The key changes in HDMI Category 4 Cable certification compared with Category 3 Cable are as follows:
| Test Item | Category 3 Cable | Category 4 Cable |
| Insertion Loss / ACR / Intra-pair Skew | If any item FAILS, the cable may proceed to Eye Diagram testing. | All three tests must PASS directly; an Eye Diagram result cannot offset a failure. |
| Eye Diagram Test | Conditional; generally required only if one of the three tests above FAILS. | Mandatory for every cable submitted for certification; a PASS is required. |
| Certification Criteria | Certification is still possible if an item FAILS but the Eye Diagram test PASSES. |
All three tests and the Eye Diagram test must PASS. |
The launch of Category 4 Cable certification marks a new stage for HDMI Cables in terms of high-bandwidth transmission and signal quality requirements.
Allion will continue to provide comprehensive testing and certification services, helping customers secure Ultra96 HDMI® Cable certification more efficiently.
For questions or support related to HDMI testing and certification, please contact Allion.
Our consulting team can provide customized solutions based on your product and certification needs, helping your product pass certification and launch on schedule.
Allion Labs Official Website：www.allion.com
Email：service@allion.com
About Allion Labs
Allion Labs is a globally recognized testing and consulting firm headquartered in Taiwan. Founded in 1991, the company now operates offices across Japan, China, the U.S., South Korea, and Europe, offering product and design validation, interoperability testing, certification consulting, and user experience simulation services to industries spanning audio/video, automotive, wireless networking, telecommunications, systems and AI servers, and cables and connectors.
