M.2 PCIe B+M Key CLB5.0 Test Fixture

Product ID: APT23060

Product Summary

PCIe M.2 CLB5.0 Test Fixture Sets for B+M Key

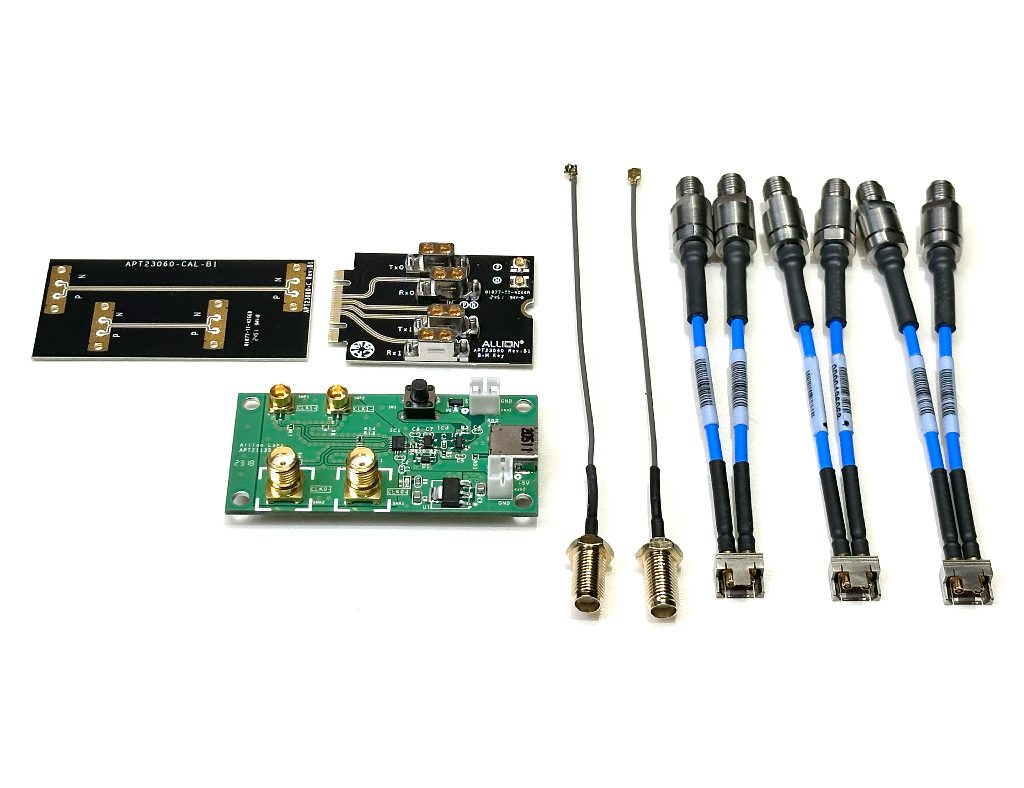

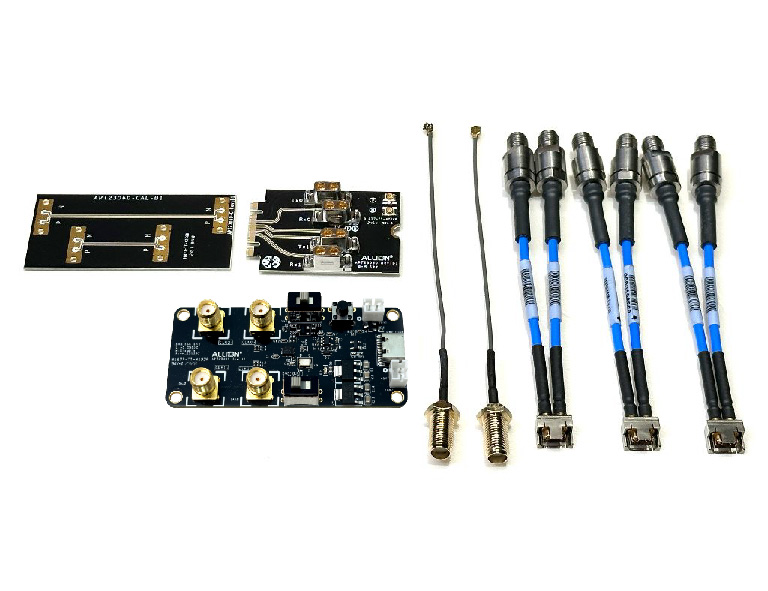

  • The M.2 PCIe CLB5.0 Test Fixture Set contains the below items:
  1. M.2 B+M Key (Model Name: APT23060)
  2. M.2 CAL (Model Name: APT23060-C)
  3. Allion CMTS Board (Model Name: APT21135)
  4. SMPM Cable Module*4
  5. IPEX MHF1 to SMA cable*2
  • The lead time will be 4-6 weeks from order to shipment.

Application

  • PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen5)
  • PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  • Applicable for Server, IPC, Notebook, Desktop or system product which has designed M.2 B+M Key interface

Key Features

  • PCIe M.2 Compliance Electical Test for Tx/Rx
  • Durable SMPM Connectors and flexible Cable Assembly
  • SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  • 2X Thru Calibration board is provided

Specification

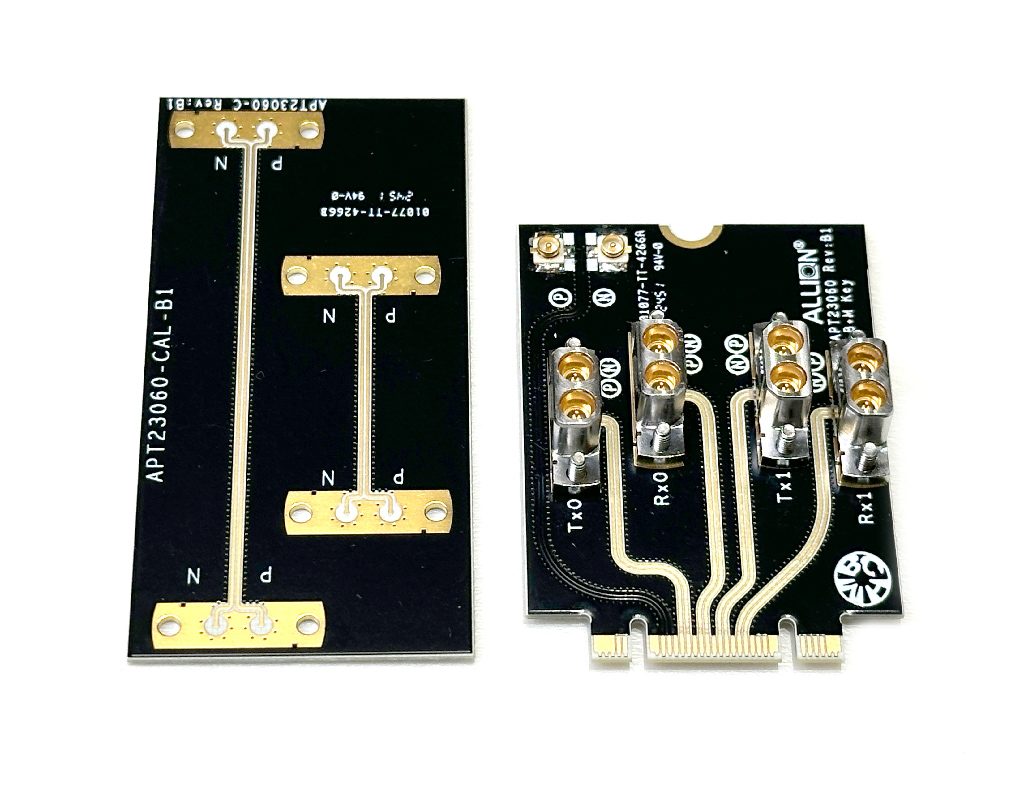

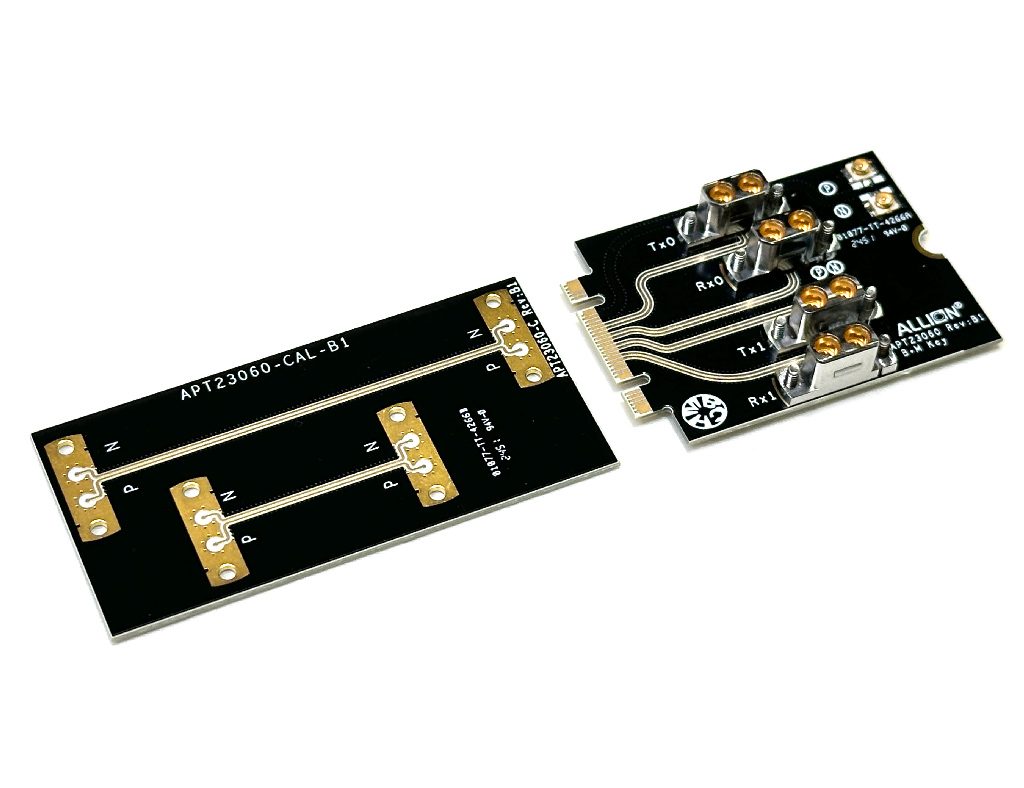

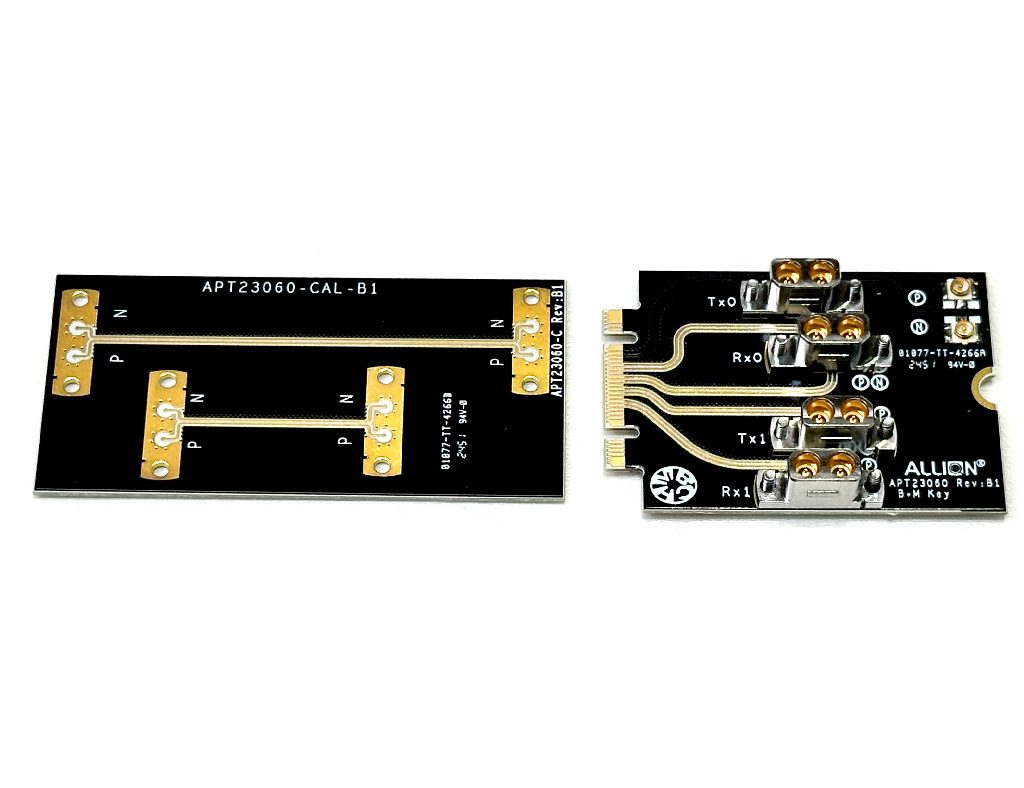

APT23060

  • PCIe M.2 B+M Key Golden Finger
  • Four Dual Ports SMPM Connector for Lane0/Lane1
  • Two RF Cable for Clock Reference
  • Two SMA Connector for Reference Clock
  • Dimesion : 30mm x 42mm
APT23060-C
  • Two Dual Ports SMPM Connector Pads for 2x Thru Clibration
  • Dimesion : 30mm x 30mm

For more information or other requests, please feel free to contact us at: service@allion.com
