PCIe M.2 CBB6.0 Test Fixture Set

Product Summary

PCIe M.2 CBB6.0 Test Fixture Set

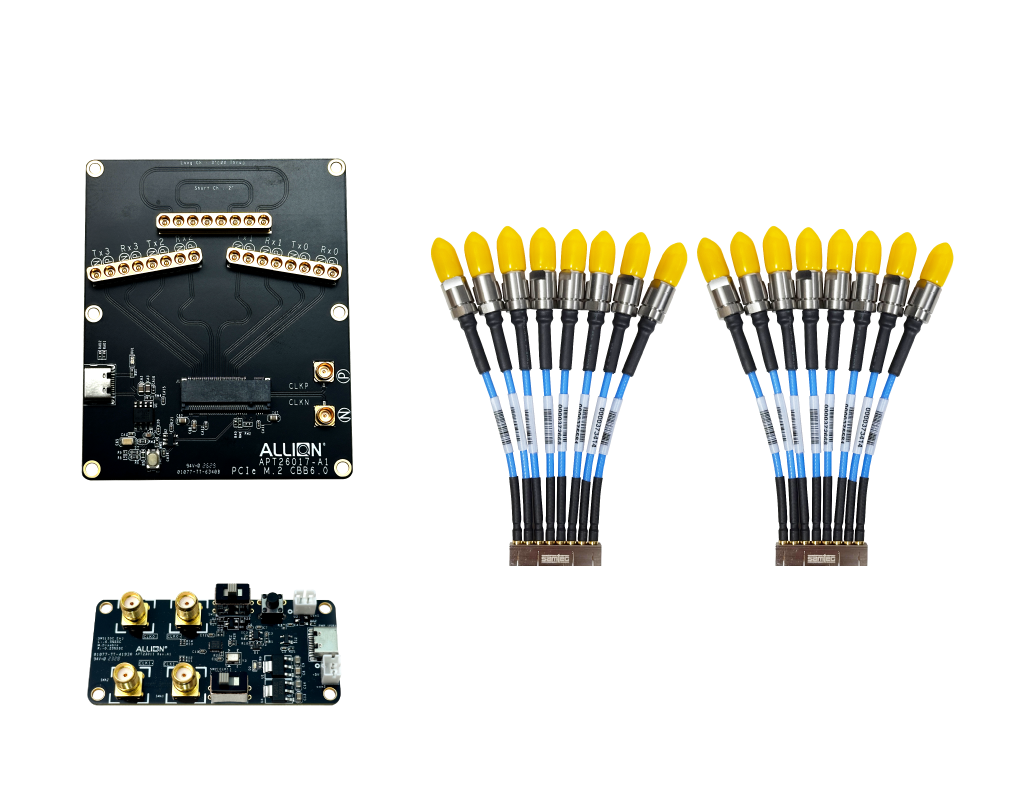

• The PCIe M.2 CBB6.0 Test Fixture Set contains the below items

1. PCIe M.2 CBB6.0 Test Fixture (Model Name: APT26017)
2. Allion CMTS Board (Model Name: APT23011)
3. SMPM 1 by 8 Cable Module*2

• The lead time will be 8-10 weeks from order to shipment.

Application

• PCI Express Device & AIC Compliance Test for Tx/Rx (Gen1-Gen6)

Key Features

• Compatable with M.2 Electical Test for Tx & Rx.
• Stronger SMPM Connectors update to 50GHz Supported
• Flexiable Cable Assembly to simplize installation
• 2X Thru Calibration included.

Specification

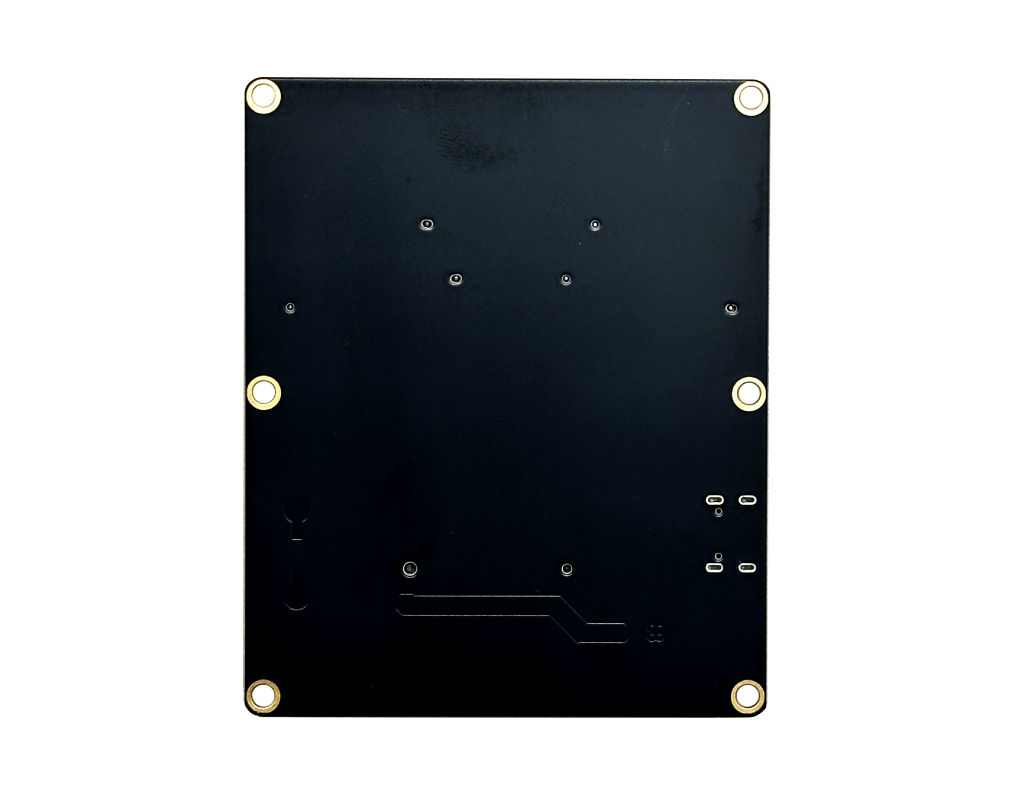

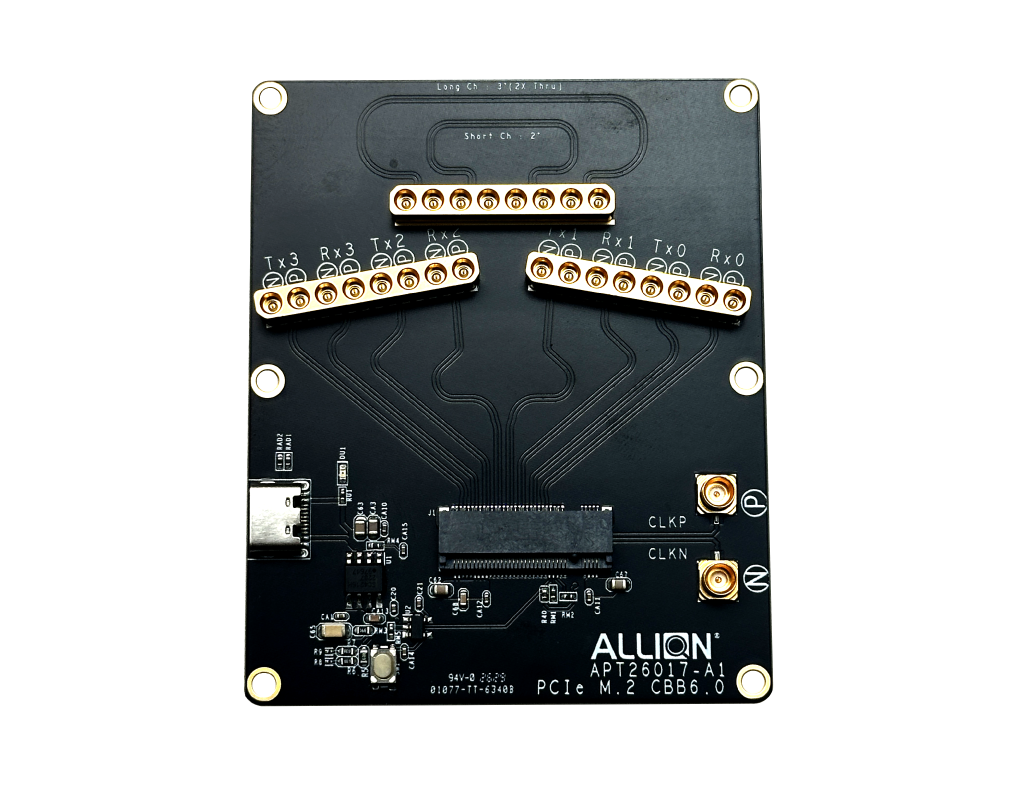

APT26017

• PCIe M.2 M-Key Receptacle Connector
• Two SMPM 1 by 8 Connectors for Full Lanes Support
• Two Pieces SMP Connectors for Reference Clock
• USB-C PD connecor for Power
• PCIe_RST# Button
• Dimesion : 66.8mm x 80mm
