PCIe MCIO4i CLB6.0 Test Fixture Set

Product Summary

PCIe MCIO4i CLB6.0 Test Fixture Set

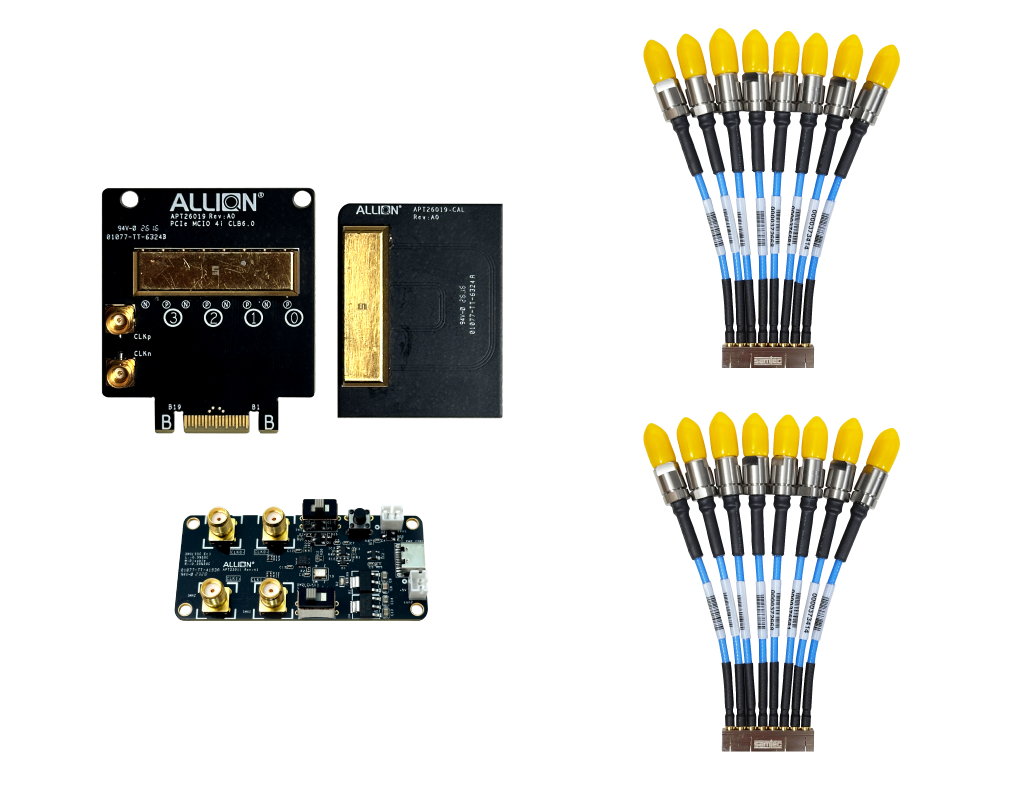

• The PCIe MCIO4i CLB6.0 Test Fixture Set contains the below items:

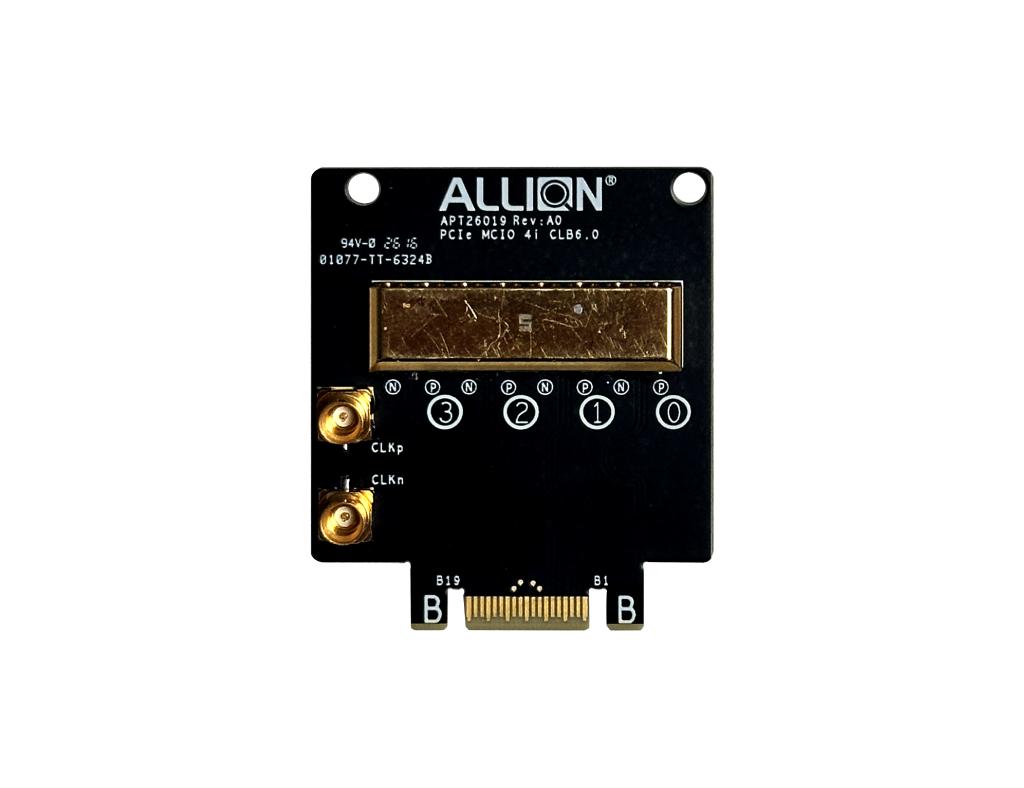

1. PCIe MCIO4i CLB6.0 Test Fixture (Model Name: APT26019)

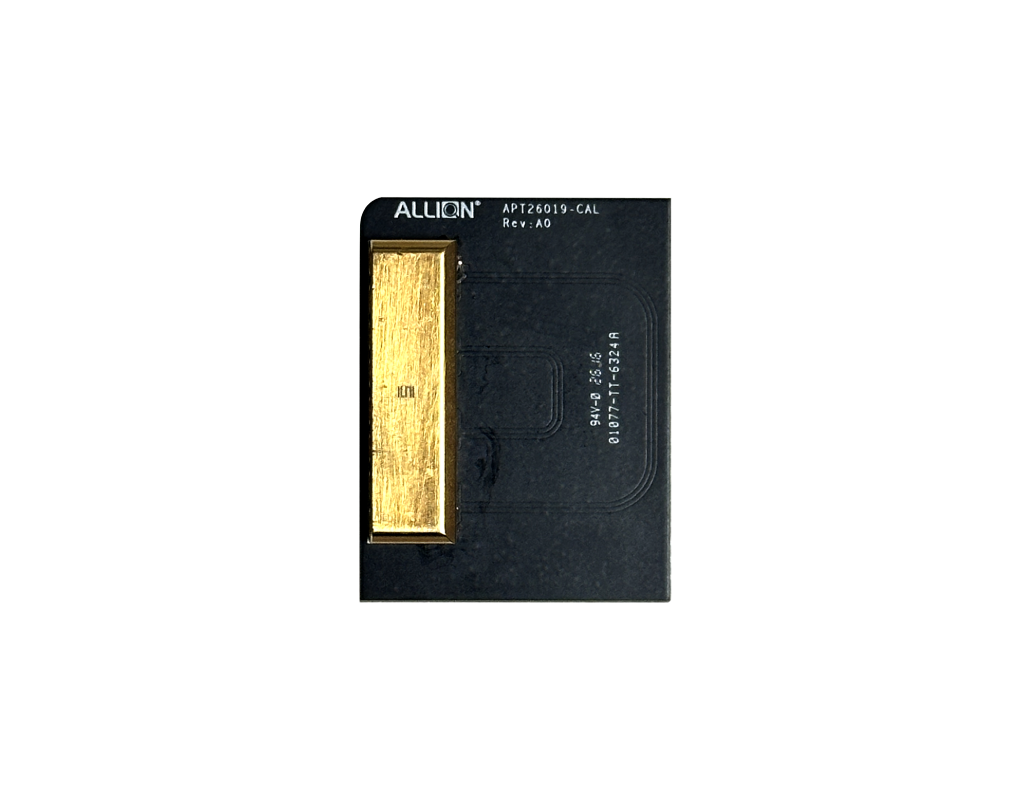

2. PCIe MCIO4i Calibration board (Model Name: APT26019-CAL)
3. Allion CMTS Board (Model Name: APT23011)
4. SMPM by 8 Cable Module*2

• The lead time will be 8-10 weeks from order to shipment.

Application

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe MCIO4i Socket

Key Features

• Compatable with PCIe MCIO4i Gen5/ Gen6 Electical Test for Tx & Rx
• Stronger SMPM Connectors update to 40GHz Supported
• Flexiable Cable Assembly to simplize installation
• 2X Thru Calibration included. (Separated)

Specification

APT26019

• PCIe MCIO4i Golden Finger
• Two SMPM by 8 Connectors for All 4 Lanes
• Two SMP Connector for Reference Clock

APT26019-CAL

• One SMPM by 8 Connector for 2x Thru Calibration
