PCIe MCIO16i CLB6.0 Test Fixture Set

Product Summary

PCIe MCIO16i CLB6.0 Test Fixture Set

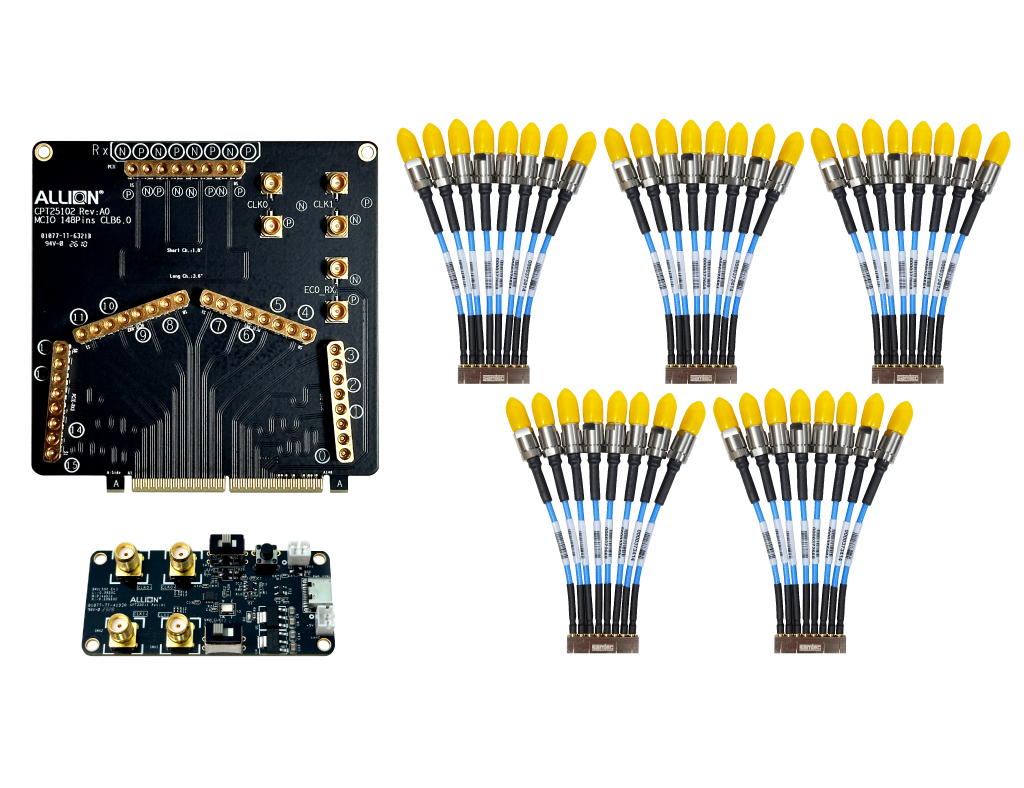

• The PCIe MCIO16i CLB6.0 Test Fixture Set contains the below items:

1. PCIe MCIO16i CLB6.0 Test Fixture (Model Name: CPT25102)
2. Allion CMTS Board (Model Name: APT23011)
3. SMPM by 8 Cable Module*5

• The lead time will be 8-10 weeks from order to shipment.

Application

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe MCIO16i Socket

Key Features

• Compatable with PCIe MCIO16i Gen5/ Gen6 Electical Test for Tx & Rx
• Stronger SMPM Connectors update to 40GHz Supported
• Flexiable Cable Assembly to simplize installation
• 2X Thru Calibration onboard

Specification

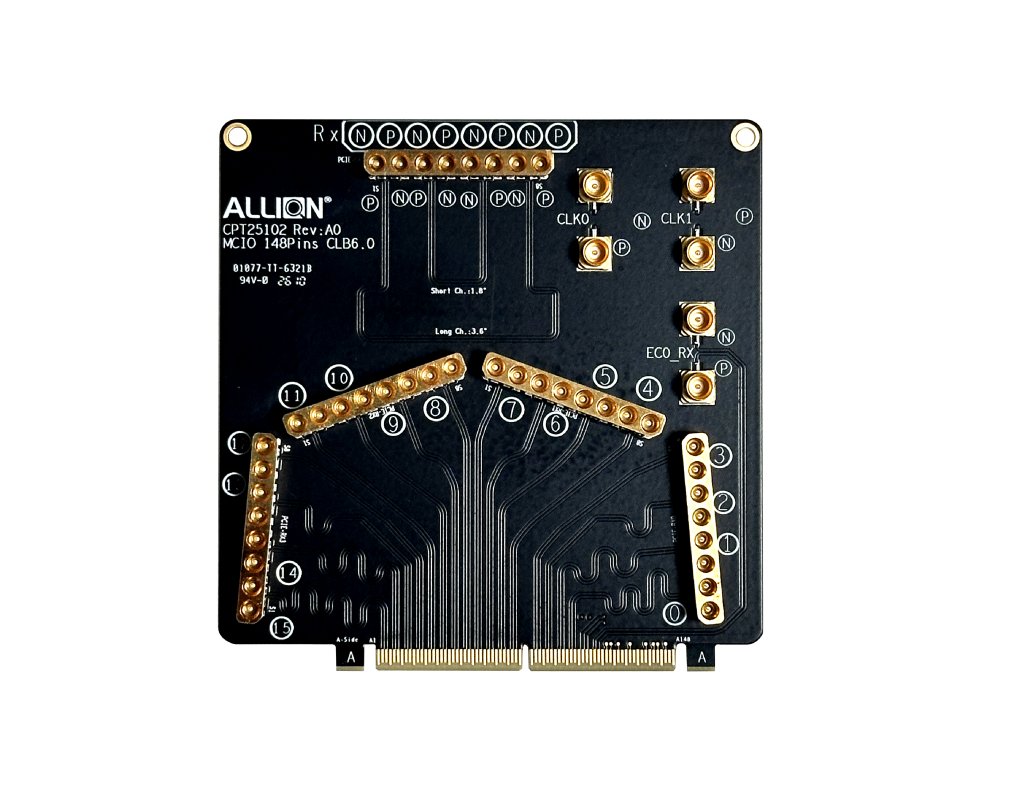

CPT25102

• PCIe MCIO16i Golden Finger
• Eight SMPM by 8 Connectors for All 16 Lanes
• Two Group SMP Connector for Reference Clock
• One SMPM by 8 connector for Calibration
